Ex Control Stations Boxes

Contrex Series

Control devices and control units are assembled clearly in control stations Series Contrex. The enclosure is available in brush finished stainless steel. The product range includes a wide range of enclosure sizes with different heights.

Stock in stainless steel and GRP Polyester control stations.

Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle
Ex Control Stations Boxes · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo CE · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IK10 · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo IP6x · Atex Delvalle
  • Logo UL NEMA 12 · Atex Delvalle
  • Logo UL NEMA 3R · Atex Delvalle
  • Logo UL NEMA 4X · Atex Delvalle

Description

Atex control boxes. They are specially designed to perform checks, maneuvers and as actuators in explosive atmospheres. They have a rugged, corrosion system and finished in stainless steel. Allowing you to take control of both machines: zones 1, 2 , 21 and 22.

It allows you to perform maneuvers and controls at the machine in hazardous areas and take programming and automation in a safe area. Offering customers a great combination of possibilities and flexibility.

Select the component that best suits your operator panels, keypads, mushrooms, switches, ammeters, etc, and you assemble all with Atex certified, Ex & IECEx and UL.

Select the model push and discover multiple options:

  1. Select the size of the box.
  2. Customize the box with actuators.
  3. Add the Cable Glands.
  4. Delvalle gives the entire project and certified atex.



Discover the advantages

Robust Design.

Anticorrosive.

A large stainless steel finish.

Allows machine control both Zone 1, 2, 21 and 22.

Regulations

  • Explosion protection:
    Ex II 2G Ex edqm ia/ib [ia/ib] II, IIA, IIB, IIC, T6, T5 o T4.
    Ex II 2D Ex tb T80 ºC, T 95 ºC, T130 ºC, IP66.
  • Permissible ambient temperature: -25ºC
  • Cable entry:
    Standard: A gland in the underside of M25.
    Special: Glands on the side, and other sizes. Seek More info.
  • ​Max connection section: Terminals 2,5mm2
  • Type of protection. IP66
  • Material of the box: AISI304L, option AISI316L.
    EN 60079-0 Explosive atmospheres.
    EN 60079-7 Increased safety
    EN 60079-11 Intrinsic safety
    EN 61241-0 Poussières combustibles (Exigences générales)
    EN 61241-1 Poussières combustibles (Protection par enveloppes)

Applications

  • Checkpoints (switches, pushbuttons, selector switches, LED lights)

Custom Made Solutions
We offer multiple solutions

Ex Control Stations Boxes · Atex Delvalle
Do you need ATEX solutions?
2024 product catalogues
  • Custom made control stations.
Customers also bought:
Plug Polyamide Ex e IP66 · Atex DelvalleAtex Delvalle
Stopper plug thread metric polyamide Ex e IP66. Operating temperature of -40°C to + 55°C....
Reducer Ex d/e IP66 - IP68 · Atex DelvalleAtex Delvalle
Reducer Ex d/e IP66 - IP68 metric and NPT nickel plated or stainless steel. Operating temperature...
Double Compression Cable Glands Armoured Atex Ex d/e IP68 · Atex DelvalleAtex Delvalle
Double compression cable glands nickel plated and stainless steel Atex Ex d/e IP66 - IP68 made by...
Plug Ex d/e NPT Thread IP68 · Atex DelvalleAtex Delvalle
Plugs Ex d/e blind metric stainless steel thread Atex IP66 - IP68. Operating temperature of -60°C...
Ex Control Stations Boxes · Atex Delvalle

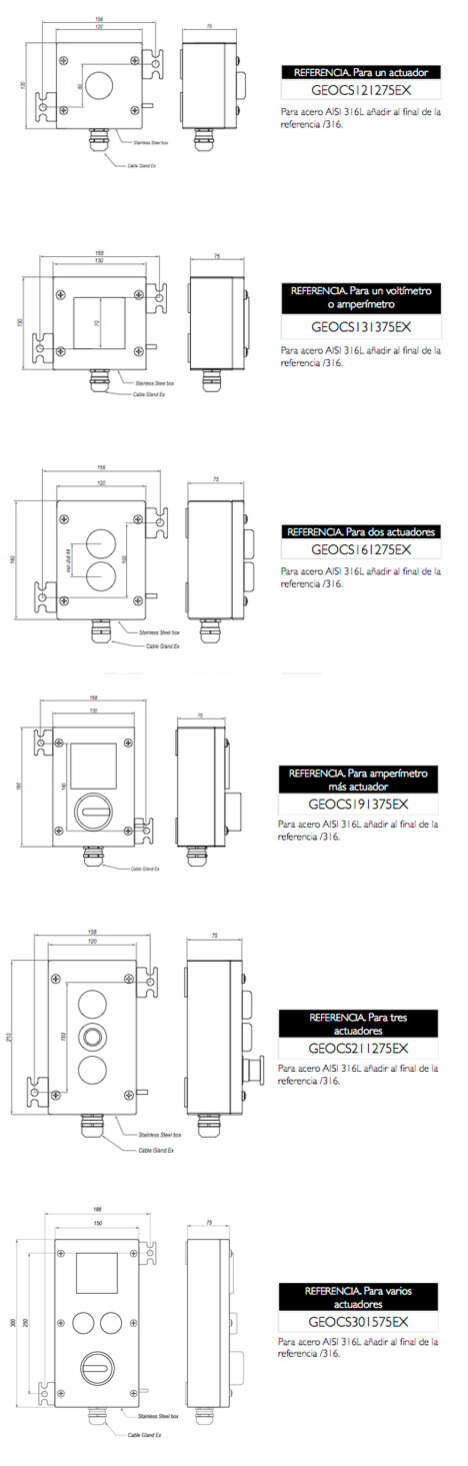

Sketches

Ex Control Stations Boxes · Atex Delvalle

References

Show References
ReferenceDescriptionHighWidthBackground
CONTREX10001 PUSH BUTTON STOP12012075CONTREX1000
CONTREX10101 Push button start12012075CONTREX1010
CONTREX1020Double push12012075CONTREX1020
CONTREX1030Emergency stop12012075CONTREX1030
CONTREX1031Emergency stop button with key12012075CONTREX1031
CONTREX10401 Key switch12012075CONTREX1040
CONTREX1050A 3 position selector12012075CONTREX1050
CONTREX1060A white light12012075CONTREX1060
CONTREX1061A green light12012075CONTREX1061
CONTREX1062A red light12012075CONTREX1062
CONTREX1063A yellow light12012075CONTREX1063
CONTREX1064A blue light12012075CONTREX1064
CONTREX1070Bright white button NC12012075CONTREX1070
CONTREX1071Bright green button NC12012075CONTREX1071
CONTREX1072Bright red button NC12012075CONTREX1072
CONTREX1073Bright yellow button NC12012075CONTREX1073
CONTREX1074Bright blue button NC12012075CONTREX1074
CONTREX1100Ammeter 1A12012075CONTREX1100
CONTREX1101Ammeter 4A12012075CONTREX1101
CONTREX1102Ammeter 5A12012075CONTREX1102
CONTREX1103Ammeter 10A12012075CONTREX1103
CONTREX1104Ammeter 15A12012075CONTREX1104
CONTREX1200Voltmeter 25V12012075CONTREX1200
CONTREX1201Voltmeter 40V12012075CONTREX1201
CONTREX1202Voltmeter 150V12012075CONTREX1202
CONTREX1203Voltmeter 250V12012075CONTREX1203
CONTREX1204Voltmeter 500V12012075CONTREX1204
CONTREX20102 Buttons, start and stop16012075CONTREX2010
CONTREX2020Bright and Stop16012075CONTREX2020
CONTREX2030Bright and double button16012075CONTREX2030
CONTREX2100Ammeter and selector19013075CONTREX2100
CONTREX30103 buttons21012075CONTREX3010
CONTREX3020Start and stop21012075CONTREX3020
CONTREX3030Start, stop and emergency stop21012075CONTREX3030
CONTREX3040Bright, stop and emergency stop21012075CONTREX3040
CONTREX40102 pilots and a selector30020075CONTREX4010
CONTREX4020Ammeter, 2 pilots and 2 buttons30020075CONTREX4020
CONTREX40302 pilots, 2 push buttons and selector30020075CONTREX4030
