Adapter Reducer Ex d/e IP66 - IP68

Adapter reducer Ex d/e IP66 - IP68 metric to NPT and NPT to metric nickel plated or stainless steel. Operating temperature of -70°C to + 400°C.

Let us help you!

Adapter Reducer Ex d/e IP66 - IP68 · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IP66 · Atex Delvalle
  • Logo IP68 · Atex Delvalle

Description

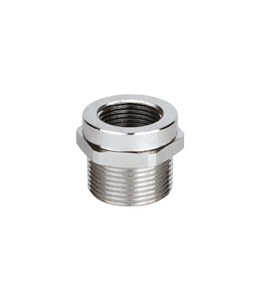

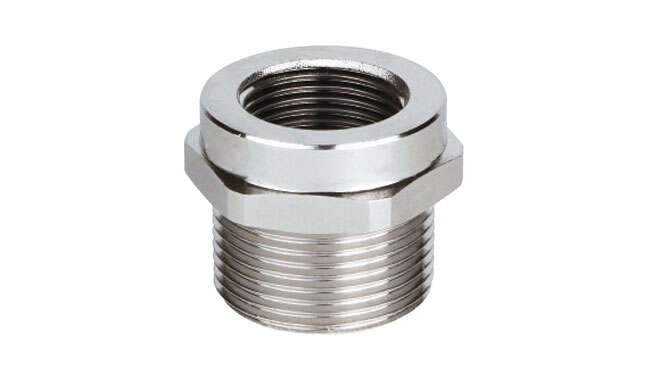

Adapter reducer Ex d/e IP66 - IP68 metric to NPT and NPT to metric.

  • Material:
    • Nickel-plated brass
    • Stainless steel AISI316L
  • Operating temperature of -70°C to + 400°C.

Regulations

  • Protection class: IP66 / IP68
  • Application fields: Surface - Group II • Mines - Group I
  • Protection type and normative:​
    • Ex db IIC • Ex eb II (gas) • Ex tb IIIC (polvos) • Ex db I • Ex eb I (minas)
    • Atex: EN 60079-0:2012 • EN 60079-1:2014 • EN 60079-7:2015 • EN 60079-31:2014 • EN 60529:1991
    • IECEx: IEC 60079-0:2011 • IEC 60079-1:2014 • IEC 60079-7:2015 • IEC 60079-15:2010 • IEC 60079-31:2013 • IEC 60529:1989

Custom Made Solutions
We offer multiple solutions

Adapter Reducer Ex d/e IP66 - IP68 · Atex Delvalle
Do you need ATEX solutions?
2024 product catalogues
Customers also bought:
Plug Polyamide Ex e IP66 · Atex DelvalleAtex Delvalle
Stopper plug thread metric polyamide Ex e IP66. Operating temperature of -40°C to + 55°C....
Plug Ex d/e NPT Thread IP68 · Atex DelvalleAtex Delvalle
Plugs Ex d/e blind metric stainless steel thread Atex IP66 - IP68. Operating temperature of -60°C...
Plug Ex d/e Metric Thread IP68 · Atex DelvalleAtex Delvalle
Plugs Ex d/e blind metric thread Atex  IP66 - IP68. Operating temperature of -60°C to + 200°C....
Adapter Enlarger Ex d/e IP66 - IP68 · Atex DelvalleAtex Delvalle
Adapter enlarger Ex d/e IP66 - IP68 metric to NPT and NPT to metric nickel plated or stainless...
Adapter Reducer Ex d/e IP66 - IP68 · Atex Delvalle

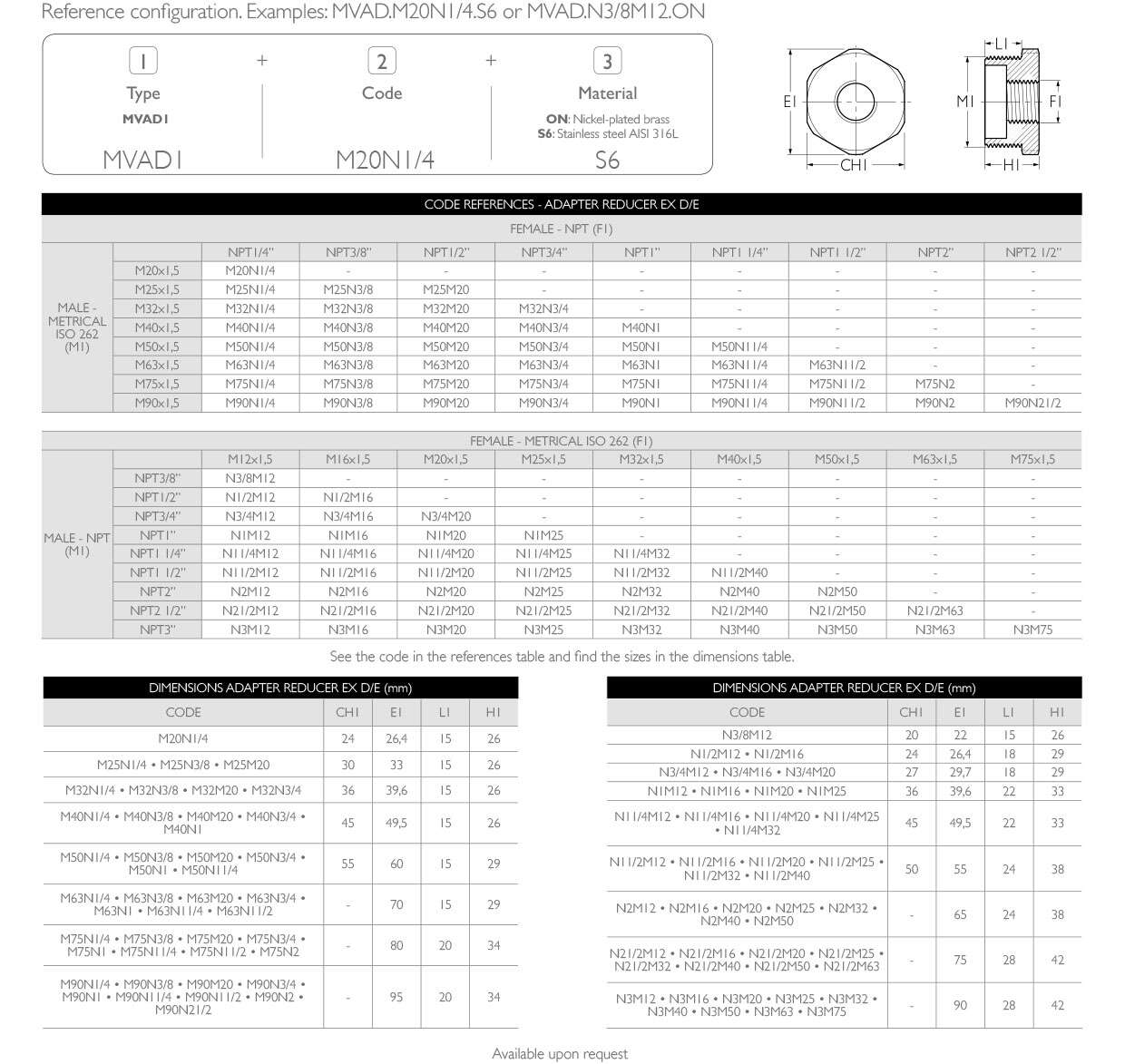

Sketches
