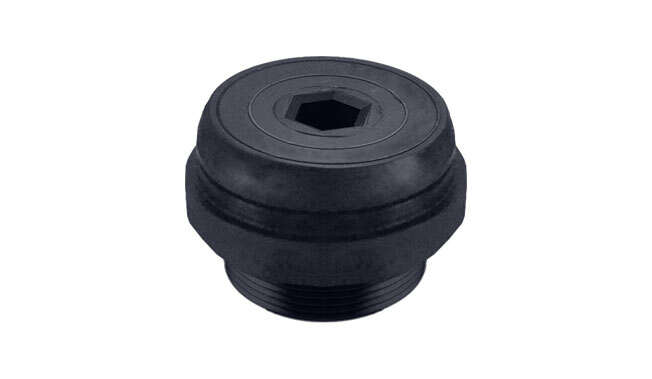

Plug Polyamide Ex e IP66

Stopper plug thread metric polyamide Ex e IP66. Operating temperature of -40°C to + 55°C.

The plugs are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Call us now and save money!

Plug Polyamide Ex e IP66 · Atex DelvalleAtex Delvalle

Description

Stopper plug thread metric polyamide Ex e IP66. The plugs are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Material: Polyamide (Nylon)
O-ring: Silicone
Features: water proof
Normative and marking:

  • Ex eIIGb Ex tD A20
  • IEC - EN 60079

Protection class: IP66
Application area:

  • Zones 1, 2, 21 and 22
  • Group Gas IIA, IIB and IIC

Operating temperature of -40°C to + 55°C



Regulations

Normative and marking:

  • Ex eIIGb Ex tD A20
  • IEC - EN 60079

Protection class: IP66
Application area:

  • Zones 1, 2, 21 and 22
  • Group Gas IIA, IIB and IIC

Operating temperature of -40°C to + 55°C

Custom Made Solutions
We offer multiple solutions

Plug Polyamide Ex e IP66 · Atex Delvalle
Do you need ATEX solutions?
2024 product catalogues
Customers also bought:

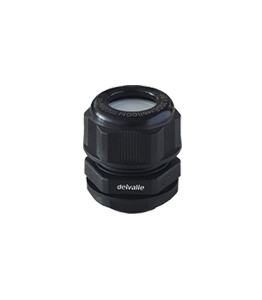

Cable Glands Atex Polyamide IP68 · Atex DelvalleAtex Delvalle
Cable glands polyamide thread metric IP68 made by AtexDelvalle are used for passing, holding and...
Cable Glands Atex Unarmoured Ex e IP68 · Atex DelvalleAtex Delvalle
Cable glands unarmoured Ex e nickel plated and stainless steel IP66 - IP68 made by Atex Delvalle...
Double Compression Cable Glands Armoured Atex Ex d/e IP68 · Atex DelvalleAtex Delvalle
Double compression cable glands nickel plated and stainless steel Atex Ex d/e IP66 - IP68 made by...
Plug Polyamide Ex e IP66 · Atex Delvalle

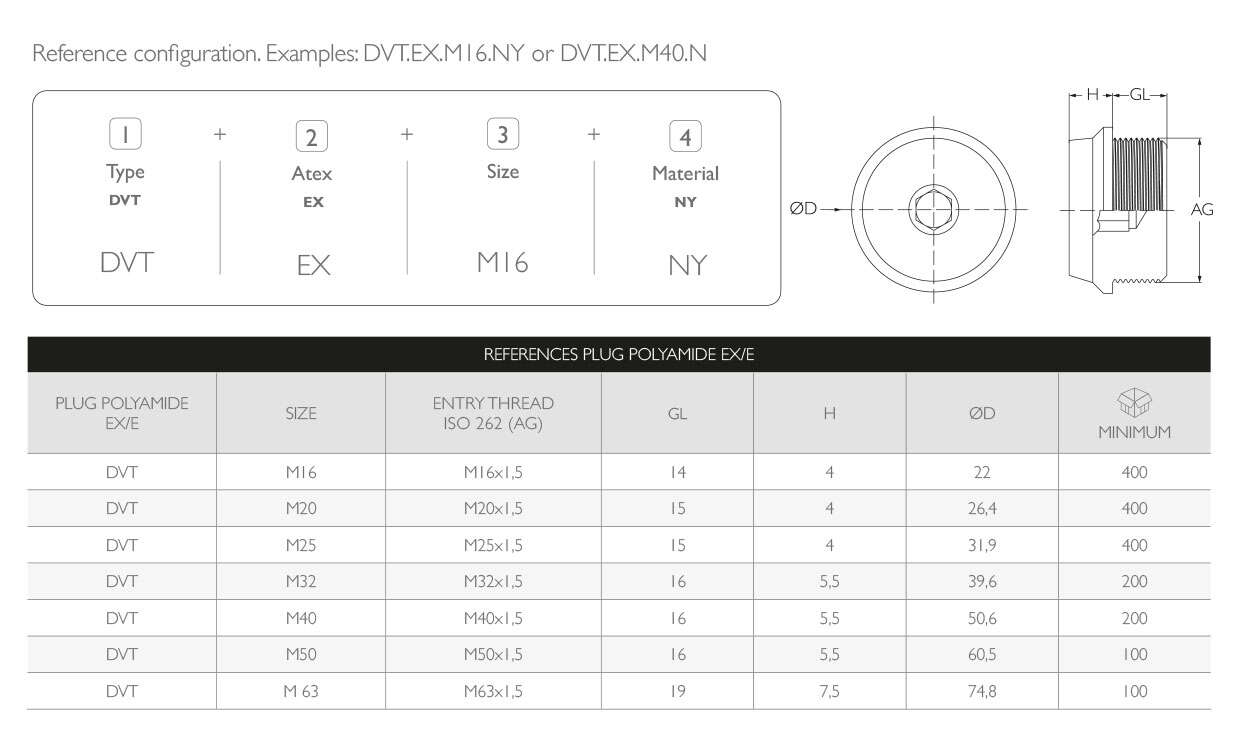

Sketches
