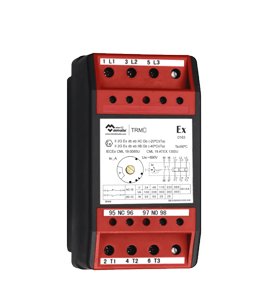

Ex Protection Relay Module

Atex Delvalle protection relays offer cost-effective overload protection for motors with adjustment ranges up to 38 A, the release can be easily adjusted.
The relay modules in the corrosion-resistant enclosure have an anti-vibration screw connection in ‘Ex e’ type enclosures. Easily accessible terminals enable a safe connection and simple installation.

Ex Protection Relay Module · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle

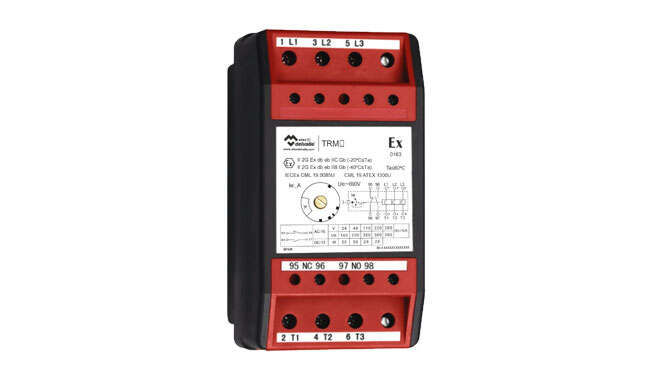

Description

Atex Delvalle protection relays offer cost-effective overload protection for motors with adjustment ranges up to 38 A, the release can be easily adjusted.
The relay modules in the corrosion-resistant enclosure have an anti-vibration screw connection in ‘Ex e’ type enclosures. Easily accessible terminals enable a safe connection and simple installation.

  • Zones 1 and 2.
  • Rated voltage: 690V.
  • Rated current: up to 38A.
  • Setting range of over load trip: up to 38A.
  • Rated voltage of aux. contact: 690V.
  • Rated current of aux. contact: 5A.
  • Terminals:
    • Main contacts 1 ~ l0mm² (6 ~ l0mm² used in connection with compression lug).
    • Auxiliary contact l ~ 2.5mm².
  • Material of enclosure: unsaturated resin.
  • Weight: 1,5kg.

Regulations

  • Certificates number:
    • IECEx CML 19.0085U
    • CML 19 ATEX 1300U
  • Type protection:
    • II2G  Ex db eb IIC Gb
    • II2G  Ex db eb IIB Gb
  • Standard:
    • Directive 2014/34/EU
    • EN IEC 60079-0:2018
    • EN 60079-1:2014
    • EN IEC 60079-7:2015+A1:2018
    • IEC 60079-0:2017
    • IEC 60079-1:2014-06
    • IEC 60079-7:2017
    • Ambient temperature:
      • -20ºC - +60ºC (IIC)
      • -40ºC - +60ºC (IIB)
    • Operating temperature:
      • -20ºC - +110ºC (IIC)
      • -40ºC - +110ºC (IIB)

    Applications

    Designed for installation in ‘Ex e’ enclosures in Zones 1 and 2 and as a protective and switching device.

    Custom Made Solutions
    We offer multiple solutions

    Ex Protection Relay Module · Atex Delvalle
    Do you need ATEX solutions?
    2024 product catalogues

    Customers also bought:
    Ex Magnetic Starter Module (Contactor+Thermorelay) · Atex DelvalleAtex Delvalle
    Delvalle Ex contactor/motor protection relay combination was designed for installation in ‘Ex e’...
    Ex Reversing Contactor Module · Atex DelvalleAtex Delvalle
    Delvalle contactors are compact components for Ex e enclosures in Zones 1 and 2 that you can really...
    Ex Residual Current Circuit Breaker Module · Atex DelvalleAtex Delvalle
    Delvalle residual current circuit breaker is a component for residual current monitoring and...
    Ex Motor Protection Module · Atex DelvalleAtex Delvalle
    Atex Delvalle offers various components that have been specially designed for protecting motors in...
    Ex Relay Module · Atex DelvalleAtex Delvalle
    Delvalle relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Contactor Module · Atex DelvalleAtex Delvalle
    Delvalle contactors are compact components for ‘Ex e’ enclosures in Zones 1 and 2 that you can...
    Ex Timer Relay Module · Atex DelvalleAtex Delvalle
    Delvalle timer relays are versatile components for ‘Ex e’ enclosures in Zones 1 and 2 that you...
    Ex Circuit Breakers Module · Atex DelvalleAtex Delvalle
    Circuit breakers that provide reliable protection for conductors in hazardous areas offers a variety...
    Explosion - Proof Load Isolation Switch Module · Atex DelvalleAtex Delvalle
    Motor, load and control switches for hazardous areas. ...
    Ex Protection Relay Module · Atex Delvalle

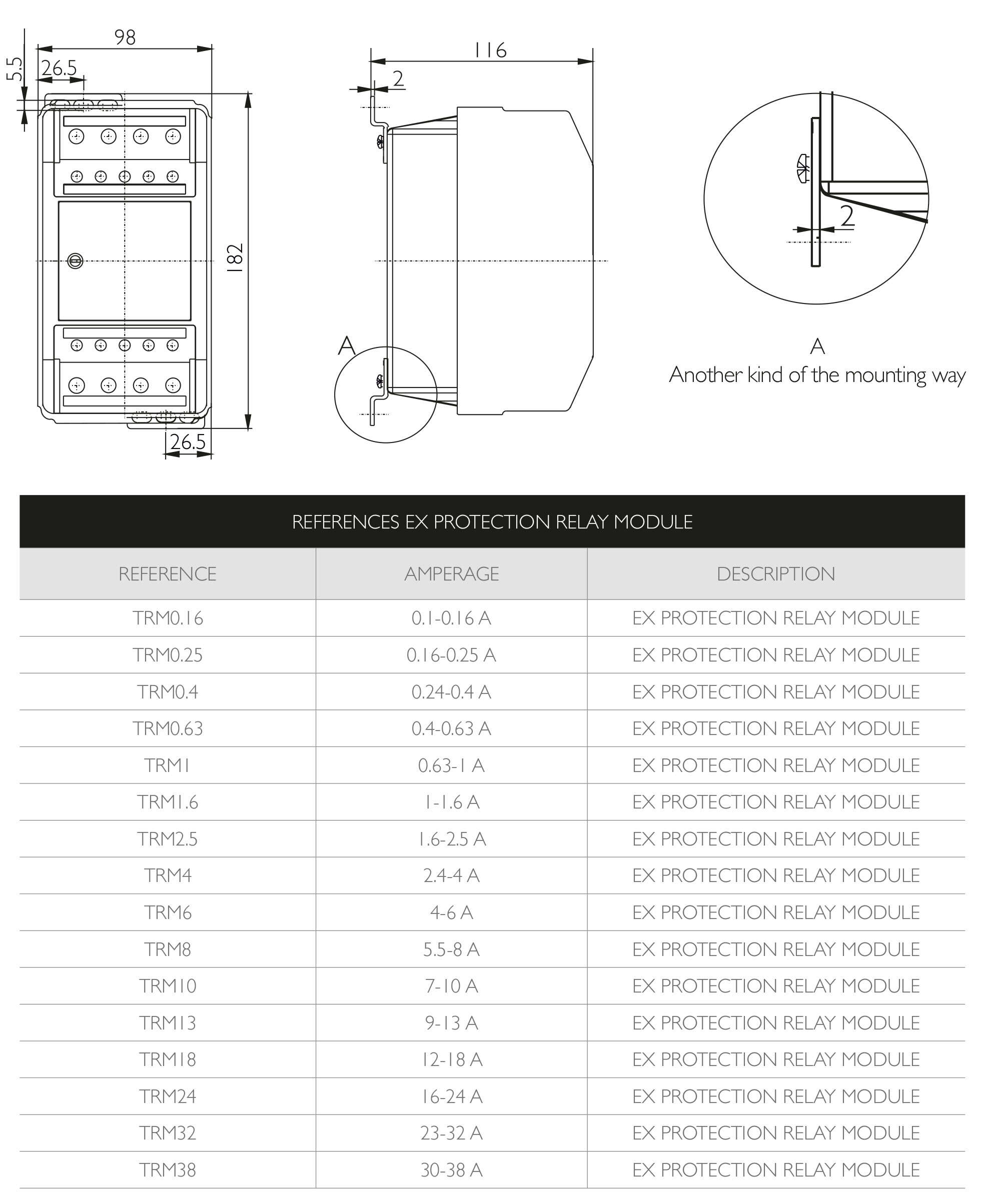

    Sketches
