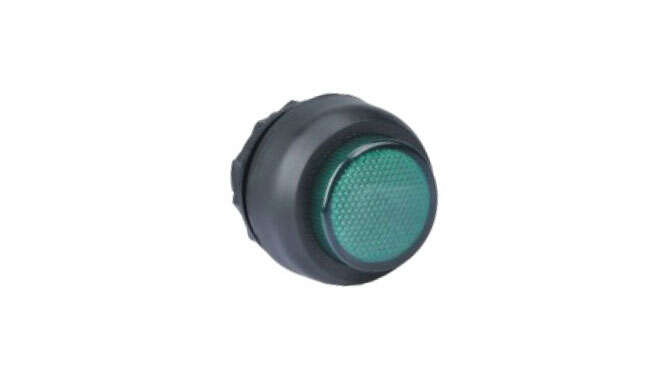

Ex Cover of Signal Lamp

Delvalle Ex cover of signal lamp conform to Atex and IECEx certifications and they have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22 and can be used in ambient temperature between -55ºC to +65ºC.

Ex Cover of Signal Lamp · Atex DelvalleAtex Delvalle

This product has the following certificates

  • Logo Atex · Atex Delvalle
  • Logo IECEx · Atex Delvalle
  • Logo IP66 · Atex Delvalle

Description

Delvalle Ex cover of signal lamp conform to Atex and IECEx certifications and they have high degree of protection up to IP66 for use in explosive atmospheres listed as Zones 1, 2, 21 and 22 and can be used in ambient temperature between -55ºC to +65ºC.

Regulations

  • Certificates number:
    • IECEx CML 19.0083U
    • CML 19ATEX3298U
  • Type protection:
    • Ex eb IIC Gb
    • Ex tb IIIC Db
  • Ambient temperature:
    • -55ºC to +65ºC
  • Standard:
    • Directive 2014/34/UE
    • EN IEC 60079-0:2018
    • EN IEC 60079-7:2015+A1:2018
    • EN 60079-31:2014
    • IEC 60079-0:2017
    • IEC 60079-31:2013
    • IEC 60079-7:2017

Applications

Ex control stations
Distribution boxes

Custom Made Solutions
We offer multiple solutions

Ex Cover of Signal Lamp · Atex Delvalle
Do you need ATEX solutions?
2024 product catalogues

Customers also bought:
Ex Signal Lamp Module · Atex DelvalleAtex Delvalle
Delvalle explosion-proof signal lamp module shall be used together with corresponding operation head...
Ex Signal Lamp Module Increased Security · Atex DelvalleAtex Delvalle
Delvalle explosion-proof signal lamp module increased security shall be used together with...
Ex Cover of Signal Lamp · Atex Delvalle

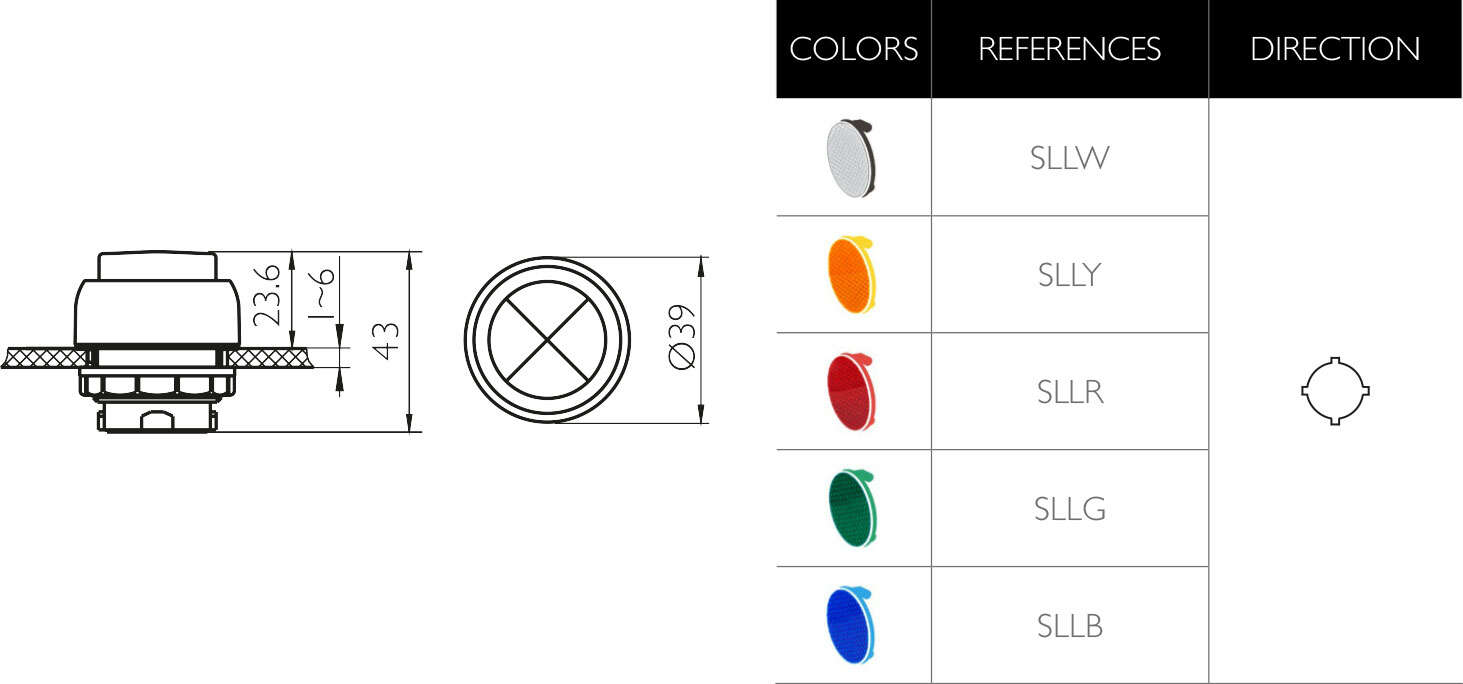

Sketches
