Flameproof Enclosure Window Ex d EJB

EJB Series

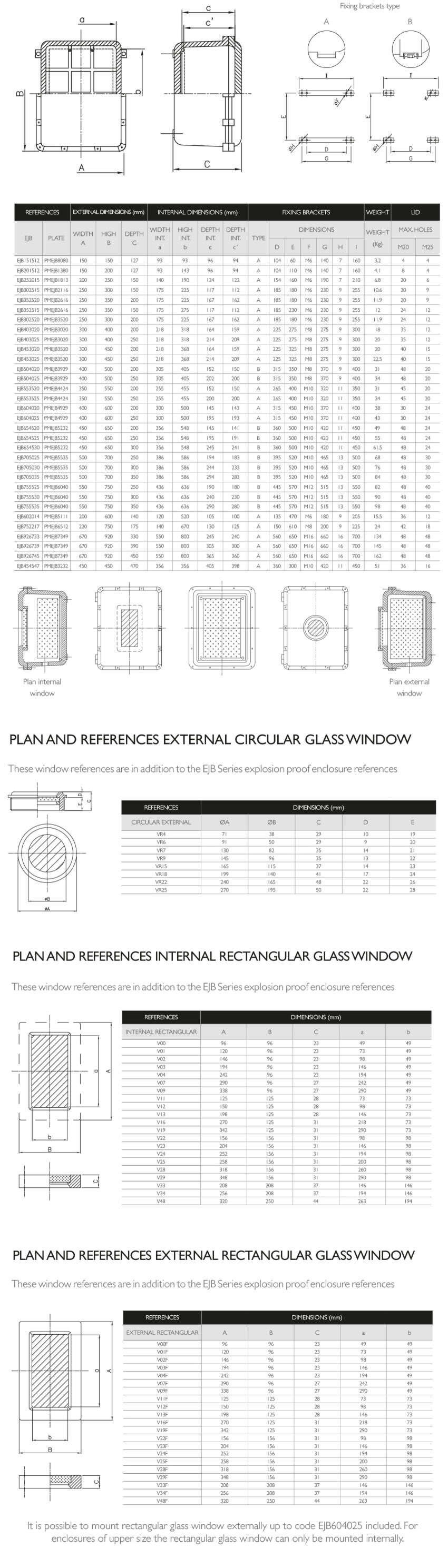

EJB Series flameproof connection boxes with window are suitable for installations in areas where there are risks of explosion, and also at places where dust or combustible gases are present. Ideal to interconnect the wires and to accommodate a vast variety of equipment and instruments. The enclosures are equipped with a lid with flanged joints, on which a rectangular window or a porthole, made with tempered glass and internal or external frames, may be created to be able to see the instruments located inside.

Let us help you!

Flameproof Enclosure Window Ex d EJB · Atex Delvalle

This product has the following certificates

Description

Windows in thermoresistant tempered glass.
Frame in aluminum light alloy.
Certificated either for the version complete with electrical apparatus or empty as an Ex component.
Material: aluminum light alloy.
Painting epoxy RAL 7000.
Internal anti-condense painting RAL 2004.
External screws in stainless steel.
Internal plate material: zinc plated steel.
Fixing brackets type “A” and type “B” in zinc plated steel.

Download all documents and certificates

Product

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Enclosures are made to be installed in areas classified Zones 1, 2, 21 and 22, where there is danger of explosion and/or fire or the presence of combustible dusts.
They are manufactured with a specific aluminum alloy, and they stand out because of their mechanical characteristics in the surface finish.

Regulations

Certificates number:
o INERIS 21ATEX0024X
o IECEx INE 21.0053X
Degree of protection: IP66
II 2G Ex d IIB+H2 T6÷T3 Gb
II 2D Ex tb IIIC T85°C÷T200°C Db

Directive 2014/34/EU (ATEX)
- EN 60079 - 0 / EN 60079 - 1 / EN 60079 - 11 / EN 60079 - 31
- IEC 60079 - 0 / IEC 60079 - 1 / IEC 60079 - 11 / IEC 60079 - 31
Temperatura de trabajo:
- De -50º a +60ºC

Applications

The EJB Series is made for use in industries like offshore, oil & gas, the chemical and petrochemical sectors and any hazardous areas in general.
Some uses are: placing push-buttons and connecting bars, switchboards and signalling, lighting switchboards and voltage arresters, fuses, barriers, transformers,...
