Armoires Électriques Atex Rack 19"

Armoires et coffrets électriques Atex Rack 19". Des solutions d’habillage en acier inoxydable pour l’implantation en atmosphères à risque d’explosion.

Ce produit a les certificats suivants

Description

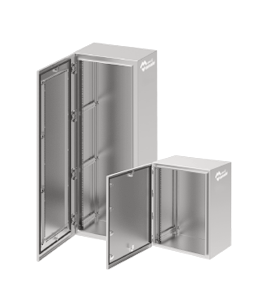

Armoires & coffrets Atex Rack 19".

Des solutions d’habillage en acier inoxydable pour l’implantation en atmosphères à risque d’explosion zone 1,2,21,22.

The increased-safety, IP66 stainless steel Ex Rack 19" enclosure & cabinet Luxorex stands out for its robustness and a very spacious interior.

For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure's seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants

And they are certified to be used at hazardous and Atex zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.

the Rack 19" Made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.

Télécharger tous les documents et certificats

Produit

Vous avez besoin de plus amples informations?
CHEZ DELVALLE, NOUS VOUS LE RENDONS FACILE

Découvrez les avantages

The increased-safety, IP66 Ex atex stainless steel Rack enclosure its robustness and a very spacious interior. And they are certified to be used at zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.
Spacious interior that simplifies the connection operations.
Guaranteed corrosion protection.
Safe and resistant in hard and aggresive Ex Atex environments.
Monobloc shape giving perfect sealing and impact resistance.
Pre-assembled body and door.
Allowing insert mass with external connection.
Quarter-turn double-bit locks and stainless stell hinges.
Polyurethane seal on the door -25° to +60°C. Silicone -55ºC +180ºC.
Customer-specific designs also for explosion-hazard zones.
Approved in accordance with directive 94/9/EC.
Long service life +10 years.
Sea water resistant.
High IP66 rating.
Ex approval for distribution boxes available.

Norme

• II2G Ex e IIC Gb and II2D Ex tb IIIC Db IP66 according to directive 94/9/CE and standar EN 60079-0, EN 60079-7, EN 60079-31.
• IP66 protection according to EN 60529.
• Maximum IK10 resistance, Norm IEC 62262.
• Certificate LOM 14ATEX3026U (Luxorex). Certificate LOM 14ATEX3027U (Tribex)
• Certificate UL Nema 4x, 12, 3r and 1 (on request). NºFile E342220.
• Polyurethane seal on the door -25° to ≤60°C.
• LDPE hinge, plugs -25° to ≤60°C.

Applications

In general, all risk areas where a flameproof product is necesary. Specially designed for:

Oil & Gas.
Offshore & Marine.
Industry & process automation .
Chemical and refinery.
Pharmaceutical.
Maritime.
Fieldstations.
Food and beverages.
Print industry.
Air transport.
Nuclear and renewable.

Personnalisation sur mesure
Nous vous offrons plusieurs solutions

Avez-vous besoin de solutions ATEX?

Atex Delvalle a la solution

Catalogues de produits 2024

Espace de téléchargements

ATEX rack 19" Options:

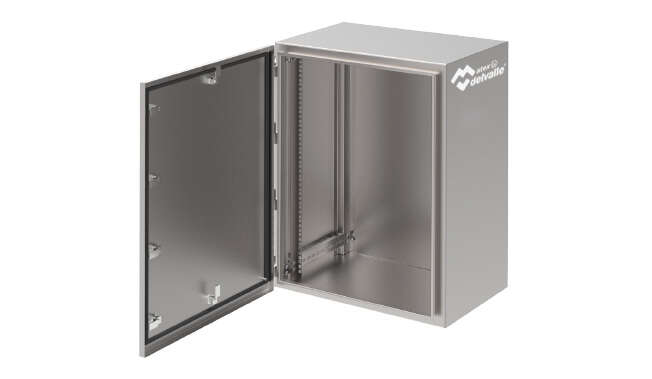

One-Door Single-Access Enclosures (single door on front)
One-Door Dual-Access Enclosures (single door on front and rear)

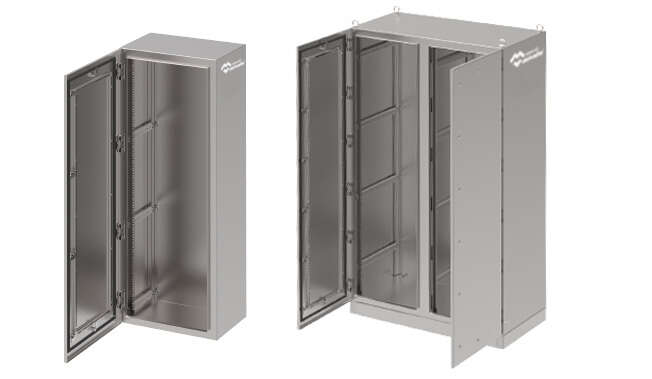

Two-Door Single-Access Enclosures (doors close, centerpost)
Two-Door Dual-Access Enclosures (doors close, centerpost)

Les clients ont également acheté:

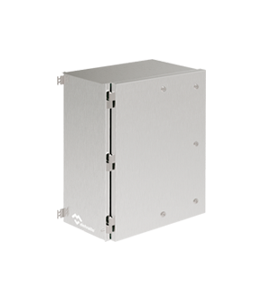

Enceinte de sécurité augmentée Luxorex

La Série Luxorex d'armoires murales Atex avec charnières et ouverture latérale à fermeture...

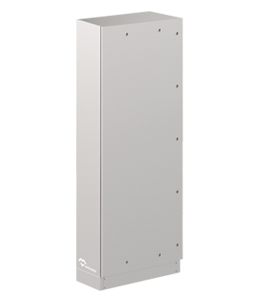

Armoire Atex Grande Capacité Tribex

L’armoire électrique Atex inoxydable compacte vide grande capacité en sécurité augmentée...

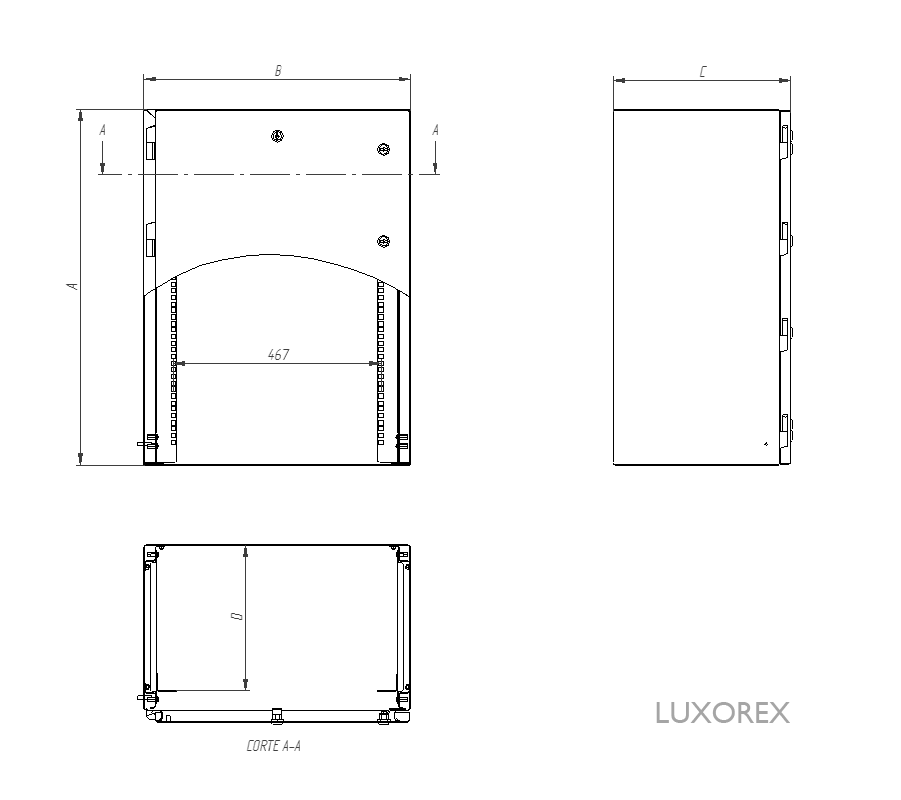

Croquis

Références

Montrer Références

Référence	Description	Hauteur	Largeur	Profondeur
LX506020EXRK10U	Luxorex rack 19". 10U	500	600	200	LX506020EXRK10U
LX506040EXRK10U	Luxorex rack 19". 10U	500	600	400	LX506040EXRK10U
LX506060EXRK10U	Luxorex rack 19". 10U	500	600	600	LX506060EXRK10U
LX506080EXRK10U	Luxorex rack 19". 10U	500	600	800	LX506080EXRK10U
LX706040EXRK14U	Luxorex rack 19". 14U	700	600	400	LX706040EXRK14U
LX706060EXRK14U	Luxorex rack 19". 14U	700	600	600	LX706060EXRK14U
LX706080EXRK14U	Luxorex rack 19". 14U	700	600	800	LX706080EXRK14U
LX706010EXRK14U	Luxorex rack 19". 14U	700	600	1000	LX706010EXRK14U
LX806020EXRK16U	Luxorex rack 19". 16U	800	600	200	LX806020EXRK16U
LX806040EXRK16U	Luxorex rack 19". 16U	800	600	400	LX806040EXRK16U
LX806060EXRK16U	Luxorex rack 19". 16U	800	600	600	LX806060EXRK16U
LX806080EXRK16U	Luxorex rack 19". 16U	800	600	800	LX806080EXRK16U
LX806010EXRK16U	Luxorex rack 19". 16U	800	600	1000	LX806010EXRK16U
LX106020EXRK22U	Luxorex rack 19". 22U	1000	600	200	LX106020EXRK22U
LX106040EXRK22U	Luxorex rack 19". 22U	1000	600	400	LX106040EXRK22U
LX106060EXRK22U	Luxorex rack 19". 22U	1000	600	600	LX106060EXRK22U
LX106080EXRK22U	Luxorex rack 19". 22U	1000	600	800	LX106080EXRK22U
LX106010EXRK22U	Luxorex rack 19". 22U	1000	600	1000	LX106010EXRK22U
TB126020EXRK26U	Tribex rack 19". 26U	1200	600	200	TB126020EXRK26U
TB126040EXRK26U	Tribex rack 19". 26U	1200	600	400	TB126040EXRK26U
TB126060EXRK26U	Tribex rack 19". 26U	1200	600	600	TB126060EXRK26U
TB126080EXRK26U	Tribex rack 19". 26U	1200	600	800	TB126080EXRK26U
TB166040EXRK36U	Tribex rack 19". 36U	1650	600	400	TB166040EXRK36U
TB166060EXRK36U	Tribex rack 19". 36U	1650	600	600	TB166060EXRK36U
TB166080EXRK36U	Tribex rack 19". 36U	1650	600	800	TB166080EXRK36U
TB166010EXRK36U	Tribex rack 19". 36U	1650	600	1000	TB166010EXRK36U
TB186020EXRK40U	Tribex rack 19". 40U	1800	600	200	TB186020EXRK40U
TB186040EXRK40U	Tribex rack 19". 40U	1800	600	400	TB186040EXRK40U
TB186060EXRK40U	Tribex rack 19". 40U	1800	600	600	TB186060EXRK40U
TB186080EXRK40U	Tribex rack 19". 40U	1800	600	800	TB186080EXRK40U
TB186010EXRK40U	Tribex rack 19". 40U	1800	600	1000	TB186010EXRK40U
TB206020EXRK44U	Tribex rack 19". 44U	2000	600	200	TB206020EXRK44U
TB206040EXRK44U	Tribex rack 19". 44U	2000	600	400	TB206040EXRK44U
TB206060EXRK44U	Tribex rack 19". 44U	2000	600	600	TB206060EXRK44U
TB206080EXRK44U	Tribex rack 19". 44U	2000	600	800	TB206080EXRK44U
TB206010EXRK44U	Tribex rack 19". 44U	2000	600	1000	TB206010EXRK44U
