Home > Products > Antenna Atex GPRS 880MHz & 1710MHz

Antenna Atex GPRS 880MHz & 1710MHz

The GPRS DUAL antenna system, with an IP66 waterproof rating, consists of an ATEX, IECEx 880-915MHz & 1710-1785MHz antenna that can be used in zones 1 and 2.

The antenna is mounted on a light and compact ATEX box made of aluminum alloy used to accommodate the cables, with output through a cable gland (Ex d) for non-armored cable (sizes: 8/10.5mm – 10.5/13mm – 13/15.5mm – 15.5/18mm) NPT.

Technical Downloads Product

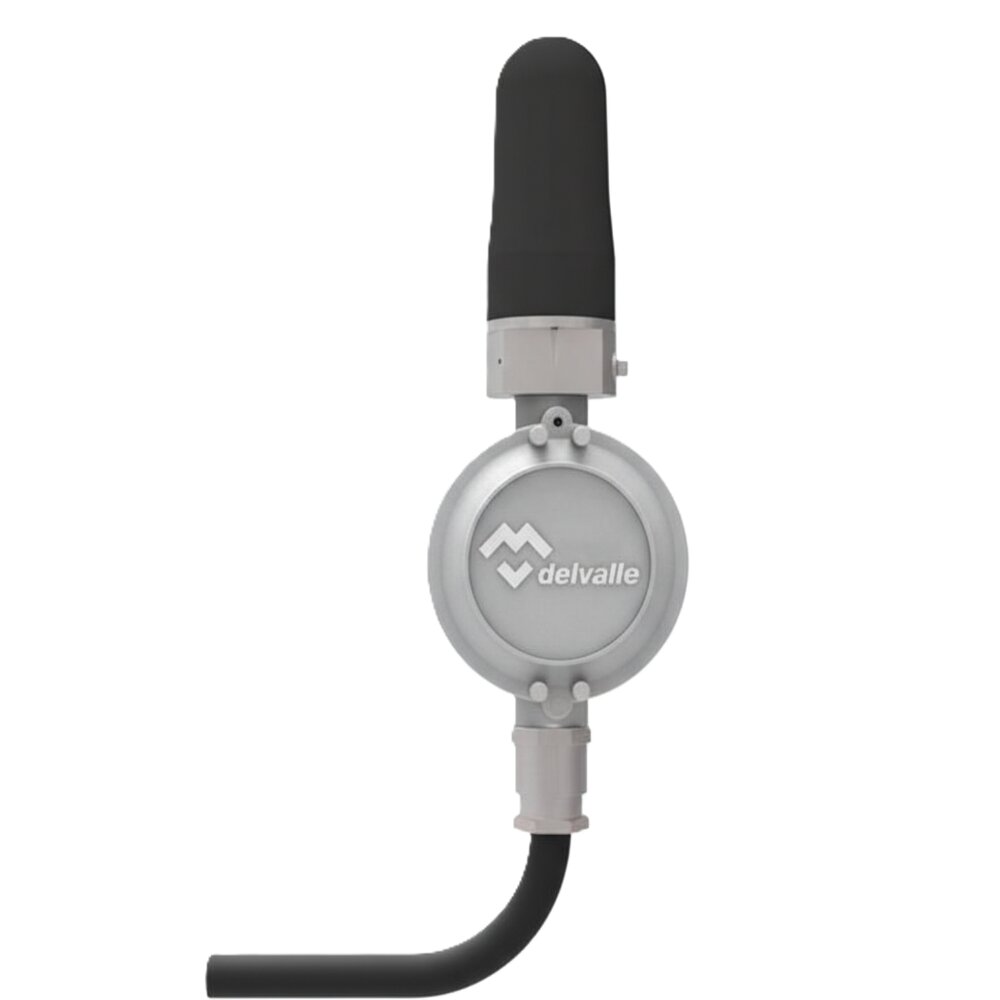

018_antena-atex-450-470mhz-1_atexdelvalle.e1aa21ec-31

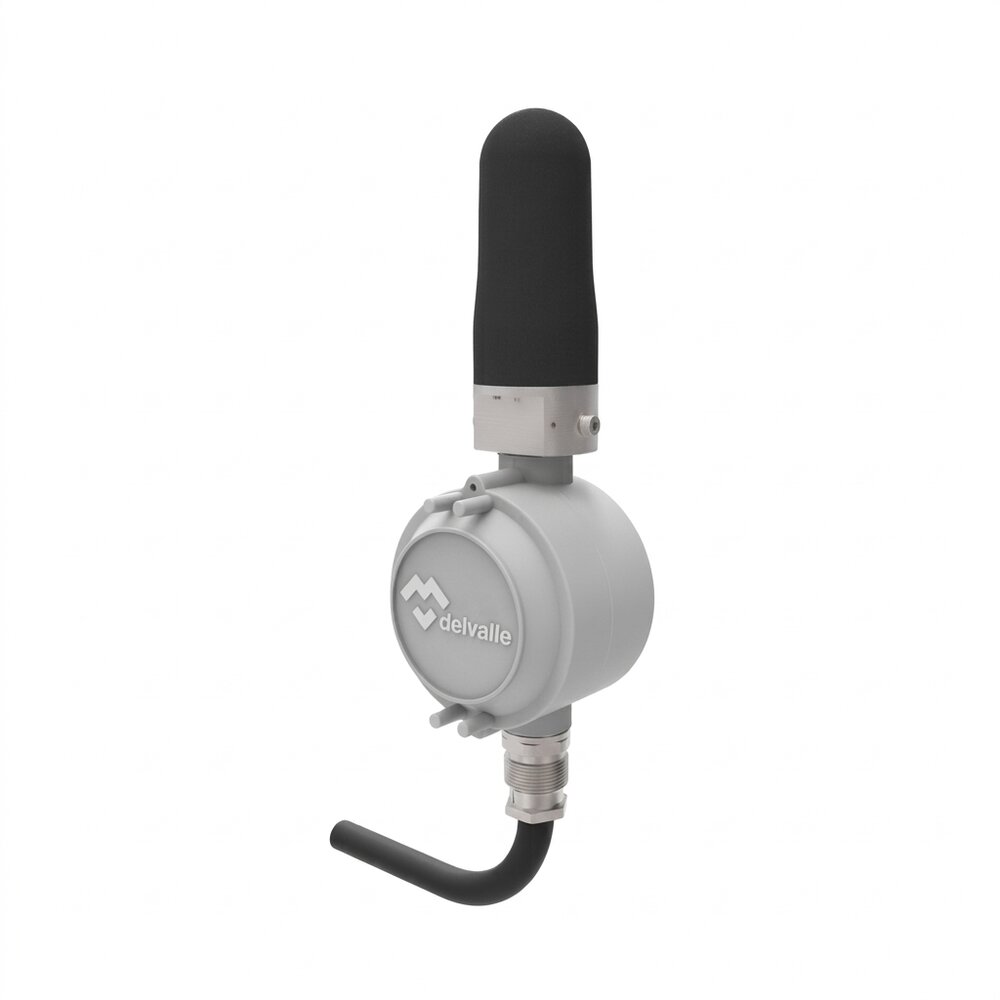

018_antena-atex-450-470mhz-2_atexdelvalle.f2e8f9b7-31
Body and cover made of low-copper aluminum alloy. Internally ribbed cover to reduce the overall weight of the assembly.
Stainless steel hinges.
Gasket: silicone with high resistance to temperature, acid, and hydrocarbons.
Certification label located on the inside.
Stainless steel bolts and screws.
M6 stainless steel earth screws with anti-rotation brackets.
Electro-galvanized steel mounting brackets.
Coating: Epoxy coating RAL 7035 (light grey).
Zones 1-2.
Common specifications for all antennas.
Impedance: 50 Ω
Maximum power: 2 Watts.
Connection: TNC Female.
Mounting base: 20mm (3/4” NPT).
Impact rating: 7 Joules.
Weight: 1.06 lbs., 0.48 kg.
Maximum length including TNC connector: 5.85”, 148.6mm.

Sketch:

product sketch
