Home > Products > Large Atex Enclosures

Large Atex Enclosures

Tribex Series is a Large stand Atex enclosures compact and waterproof IP66 made in stainless steel 304L & 316L.

Tribex is certified to be used at zones 1, 2, 21 & 22. It stands out for its high security and resistance in harsh environments.

we manufacture the most Large dimensions in the market; Atex & IECEx certified Enclosures 2000 x 2000 x 1000mm.

A spacious interior with great capacity simplifies connection operations.
EC type marking of component: II2G Ex e IIC Gb and II2D Ex tb IIIC Db IP66.

We manufacture large standing enclosures in 1,5, 2 and 3mm thickness, Atex & IECEx certified.

Technical Downloads Product

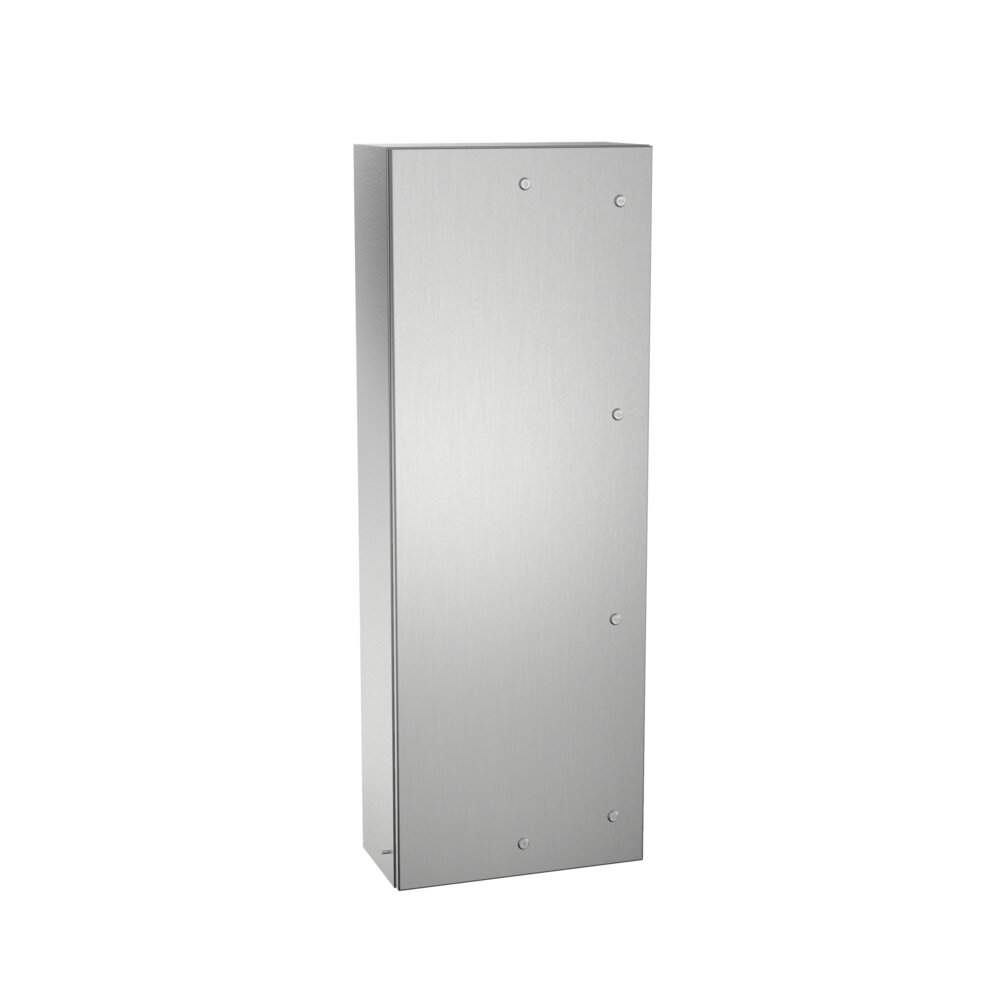

001_armario-atex-gran-capacidad-tribex-01_tribex_atexdelvalle.55d6f171-4
TECHNICAL DATA
Minimum DimensionsA=1200-2000mm   B=600-1000mm   P=200-1000mm
Maximum Double Door DimensionsA=2000mm   B=2000mm   P=1000mm
Minimum Plate DimensionsA=1070-1870mm
Minimum Plate DimensionsB=470-1870mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening120 °
Door TypeBlind door
Opening TypeSwivel with concealed hinges
Closing SystemDouble-bit quarter-turn locks
Useful Depth172-972 mm
MaterialAISI 304L/AISI 316L
FinishSatin finish
Plate MaterialGalvanized
Watertight SealPolyurethane
Working Temperature-25ºC<Ta<80ºC.
ALTERNATIVE OPTIONS
Alternative MaterialsGalvanized
Alternative FinishesPainted RAL 7035
Alternative DoorVentana de control/Observación ATEX
Alternative SealsJunta silicona esponjosa: -45ºC<Ta<135ºC, Junta silicona inyectada: -45ºC<Ta<155ºC
Machinable AreaPuerta: 930x365 - 1800x800, Lateral: 1640x365 - 1990x465
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
ATEX enclosures manufactured in painted galvanized steel
Customized Atex boxes according to your needs
Large interior space that simplifies connection operations.
Guaranteed anti-corrosion protection
High security and resistance in the most aggressive environments
Monoblock construction that achieves perfect watertightness and impact resistance
Mass insert that allows external connection
Double-bit quarter-turn locks and hinges made of AISI 316 stainless steel
Dual access option (front and rear doors)
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX3027U
IECEx zona 22: Yes
Ambient temperature: -25°C to +60°C
Protection: IP66

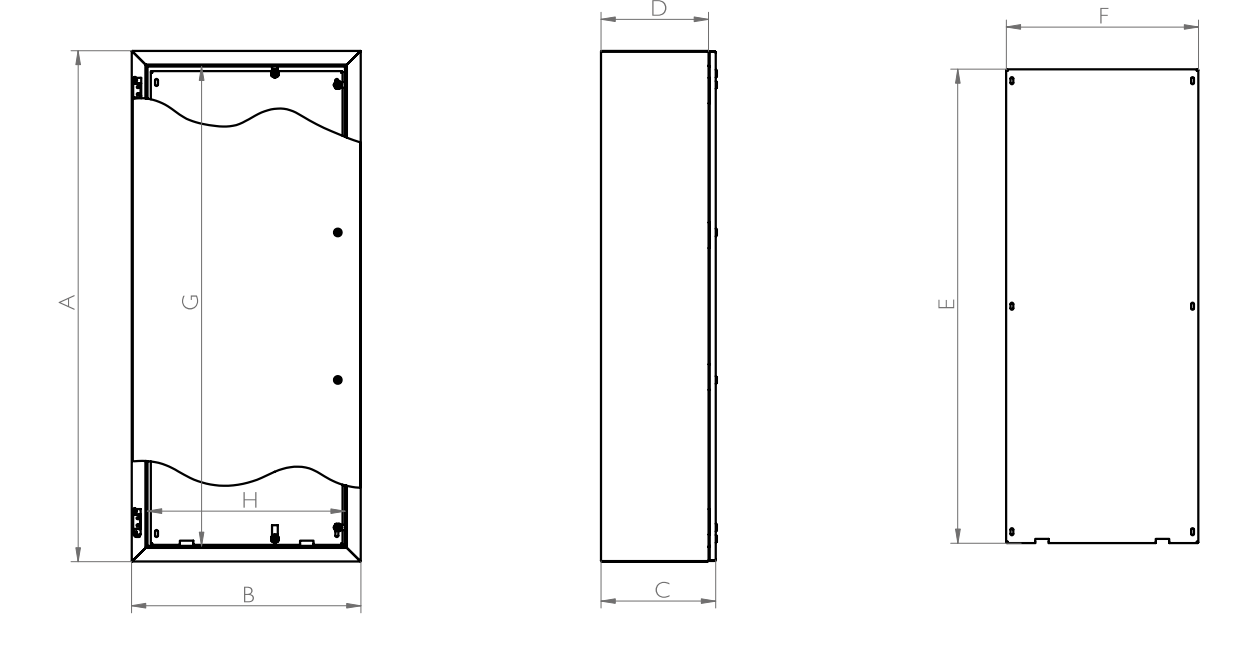

Sketch:

product sketch
