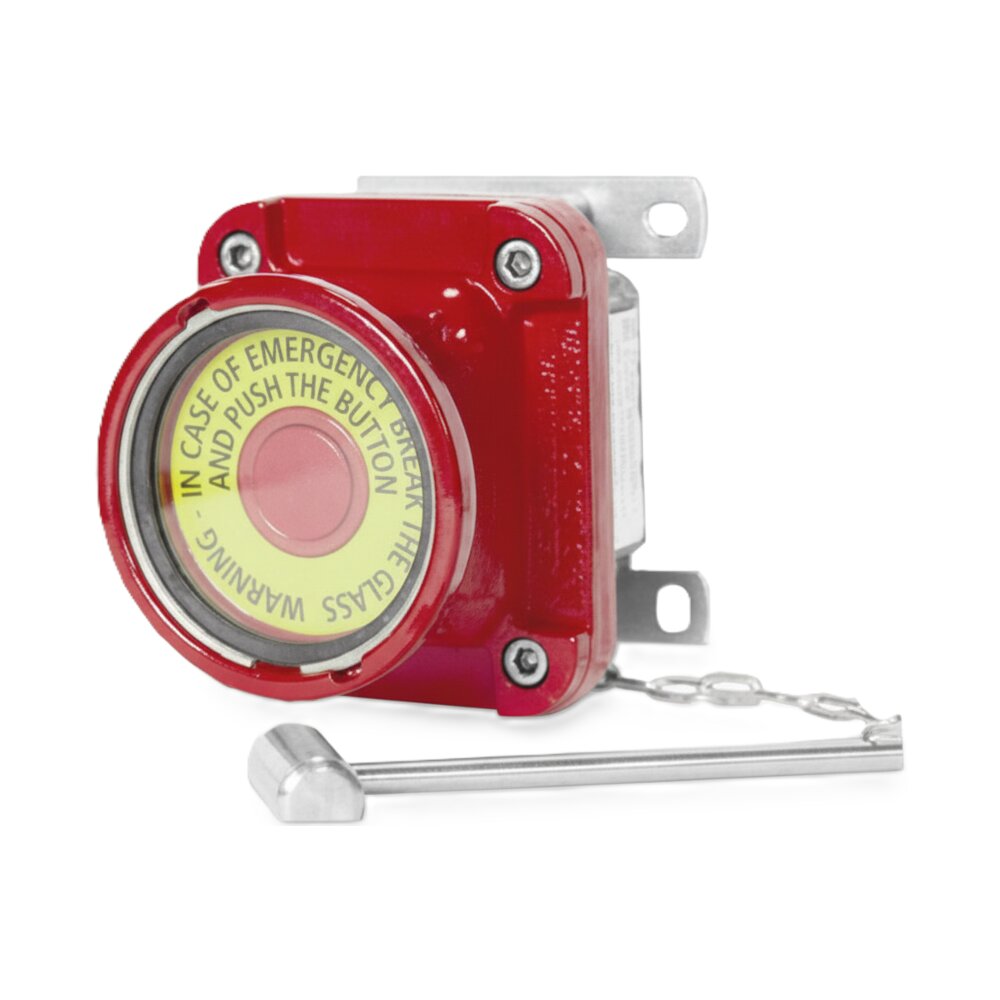

Atex fire push button

Emergency pushbuttons with fire-resistant glass are an essential element enabling rapid evacuation in the event of fire detection, or in any other emergency situation where it is necessary to disable the operation of access control systems. They can be used for open or closed circuits.

Technical Downloads Product
011_pulsador-contra-incendios-atex_atexdelvalle.34e2e190-4
Two NC or NO contacts
M25x1.5 isometric cable entry thread
Illuminated pushbutton
Complete construction in AISI 316L.
The breaking of the glass automatically opens and closes the contacts.
Breaking the glass provides access to the button to open and close the contacts (1NO + 1NC) (model EPB109011E1).
II2G Ex d IIC T6÷T4 Gb
Directive 2014/34/EU
EN 60079-0
EN 60079-1
IEC 60079-31
IEC 60079-0
IEC 60079-1
Standard: -20 °C
Extended: -50 °C

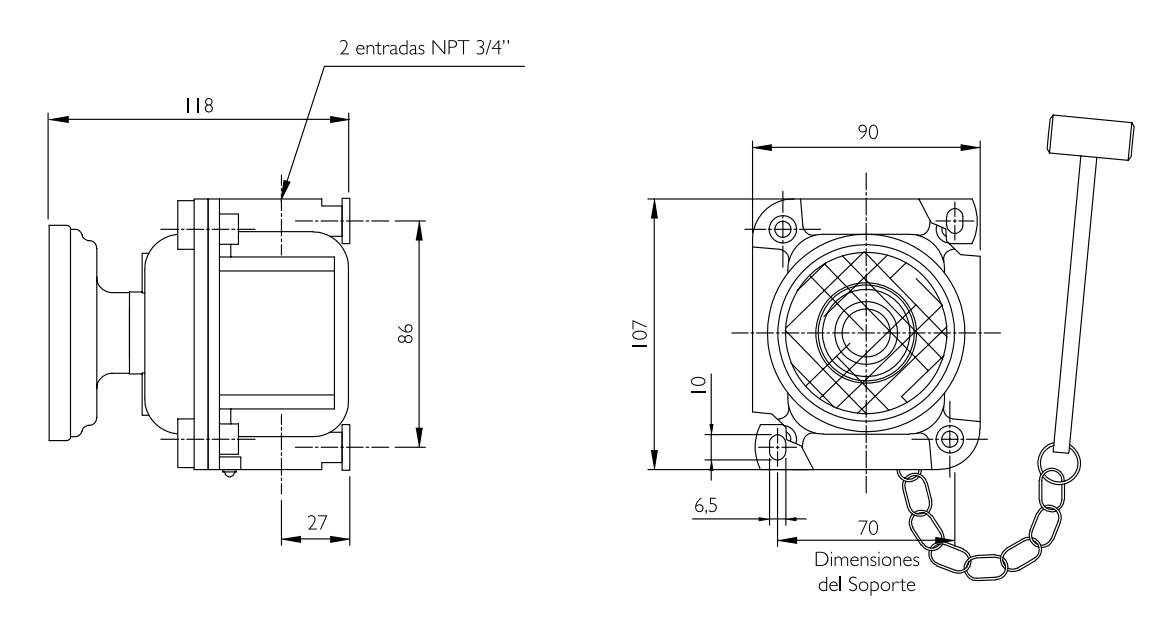

Sketch:

product sketch
