Ex GRP Junction Boxes

Terbox Series, IP66 terminal & junction boxes are made of glass fibre reinforced polyester GRP.

All the metal elements are anti-corrosive rust proof. Concave-convex joints between the covers and bodies are designed to mount an air-foam silicone bar, which secure an IP66 degree of protection.

Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22. Cables are made with Atex cable glands, either in polyamide, nickel-plated or stainless steel for corrosive areas.

Order it now and save money!

Technical Downloads Product

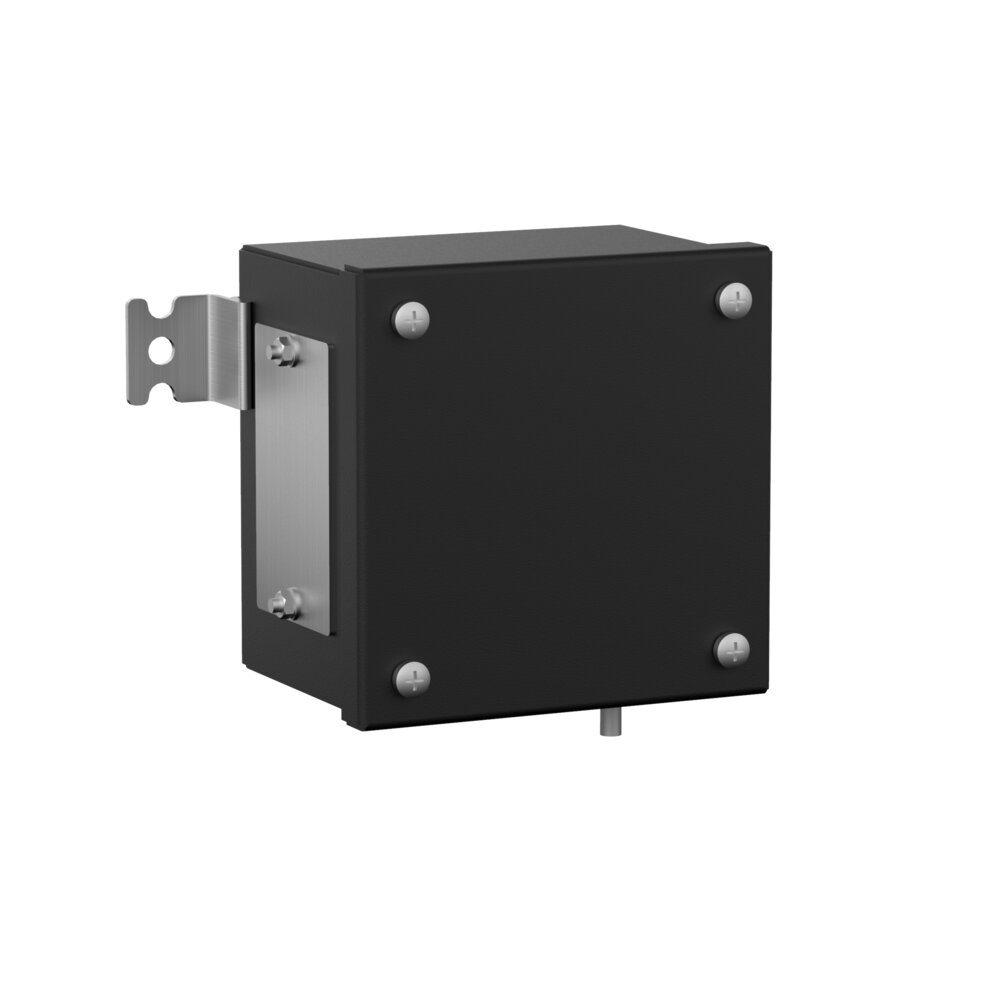

001_caja-de-poliester-atex-grp-ip66-1_terbox_atexdelvalle.d76c9e63-10

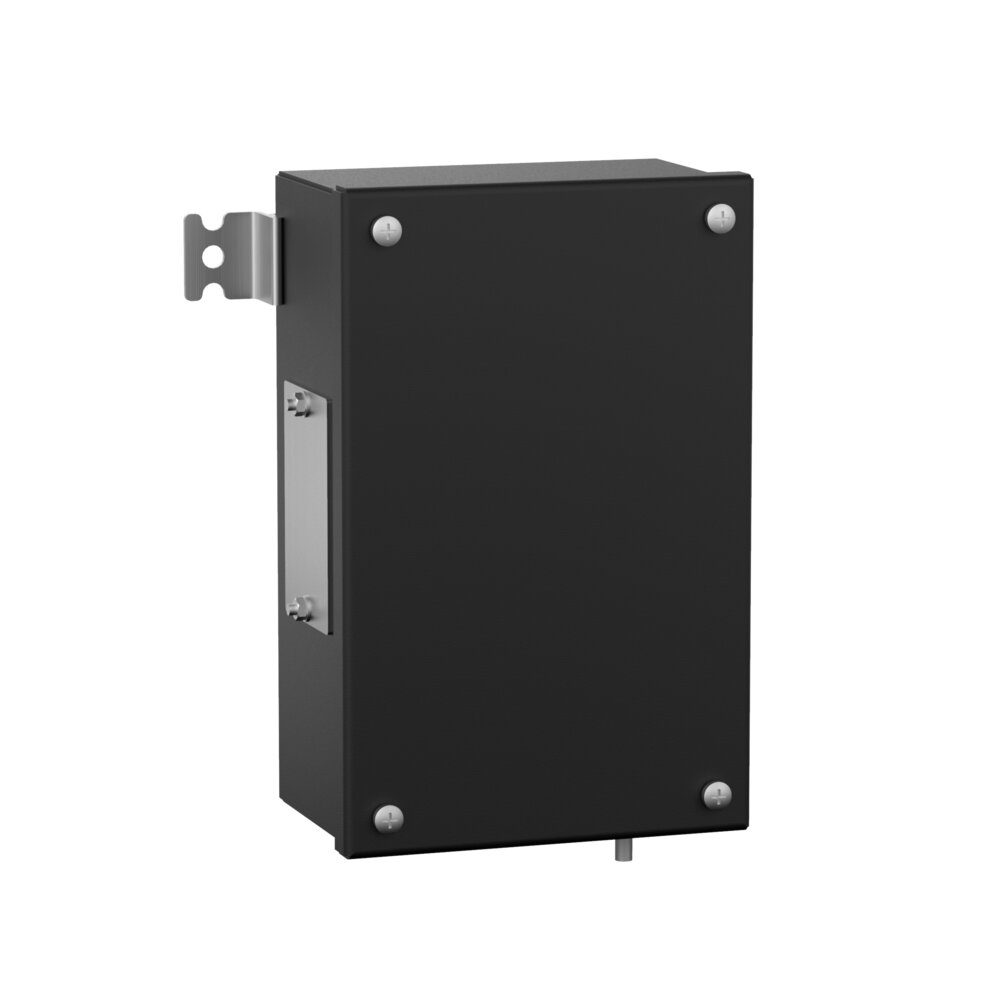

001_caja-de-poliester-atex-grp-ip66-2_terbox_atexdelvalle.ea603668-10

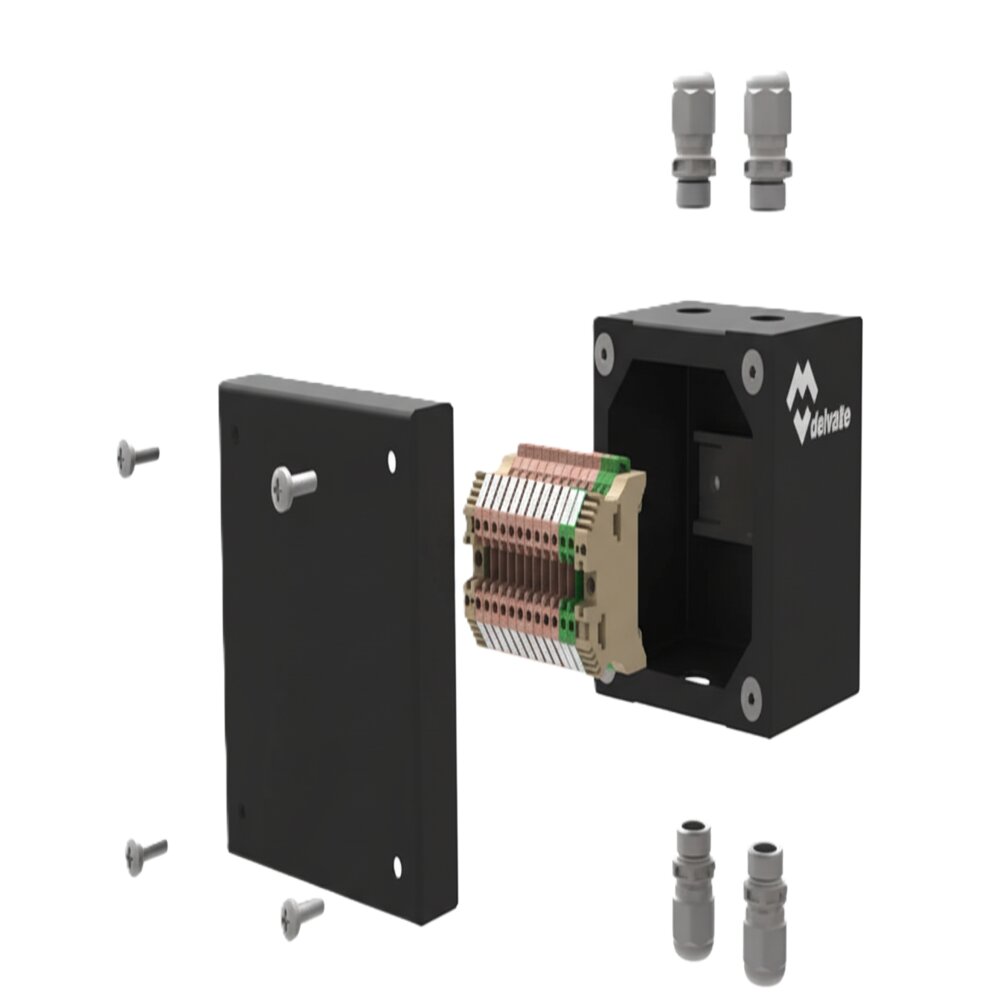

001_caja-de-poliester-atex-grp-ip66-3_terbox_atexdelvalle.e91bd118-4

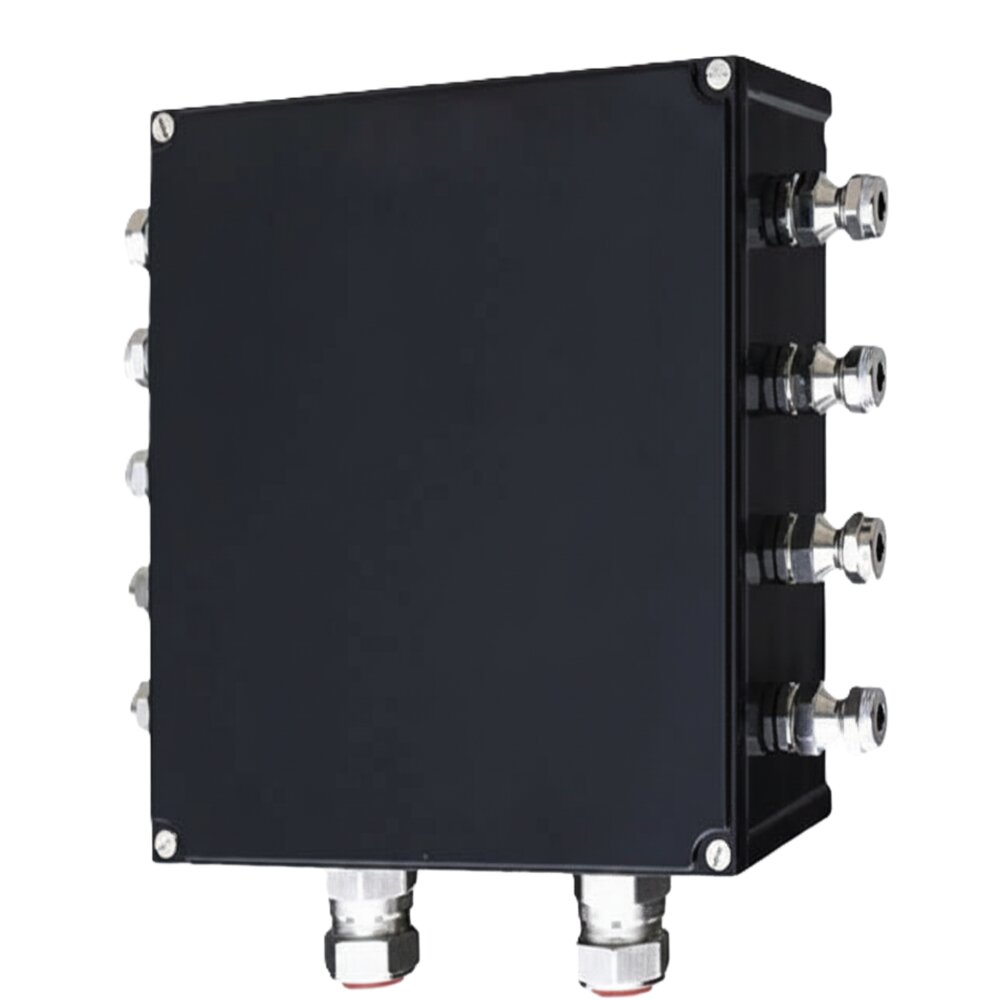

001_caja-de-poliester-atex-grp-ip66-4_terbox_atexdelvalle.04b7af68-4
TECHNICAL DATA
Minimum DimensionsA=122-706mm   B=122-352mm   P=96-231mm
Minimum Plate DimensionsA=0-0mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth0 mm
MaterialPoliéster reforzado con fibra de vidrio
FinishPainted
Plate MaterialGalvanized
Watertight SealSilicone
Working Temperature-40° a +40/55°C
ALTERNATIVE OPTIONS
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
ATEX Directive 2014/34/EU
CML 19 ATEX 1302X
IECEx CML 19.0087X
II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d/e I Mb
Dust explosion protection: Ex II2D Ex tb T80°C 95°C 130°C Db
Ambient temperature: -40°C to +55°C
Protection: IP66

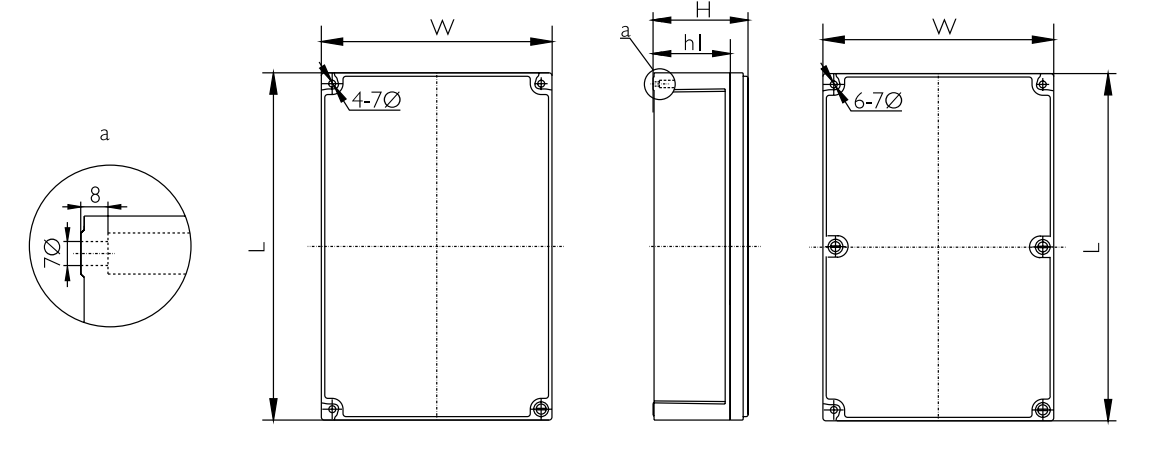

Sketch:

product sketch
