Home > Products > Plug and Socket Boxes Connex

Plug and Socket Boxes Connex

Atex Plug and socket boxes are designed specifically for cabinets in ATEX zonas 1, 2, 21 y 22, and temperature class T6/T5 areas.

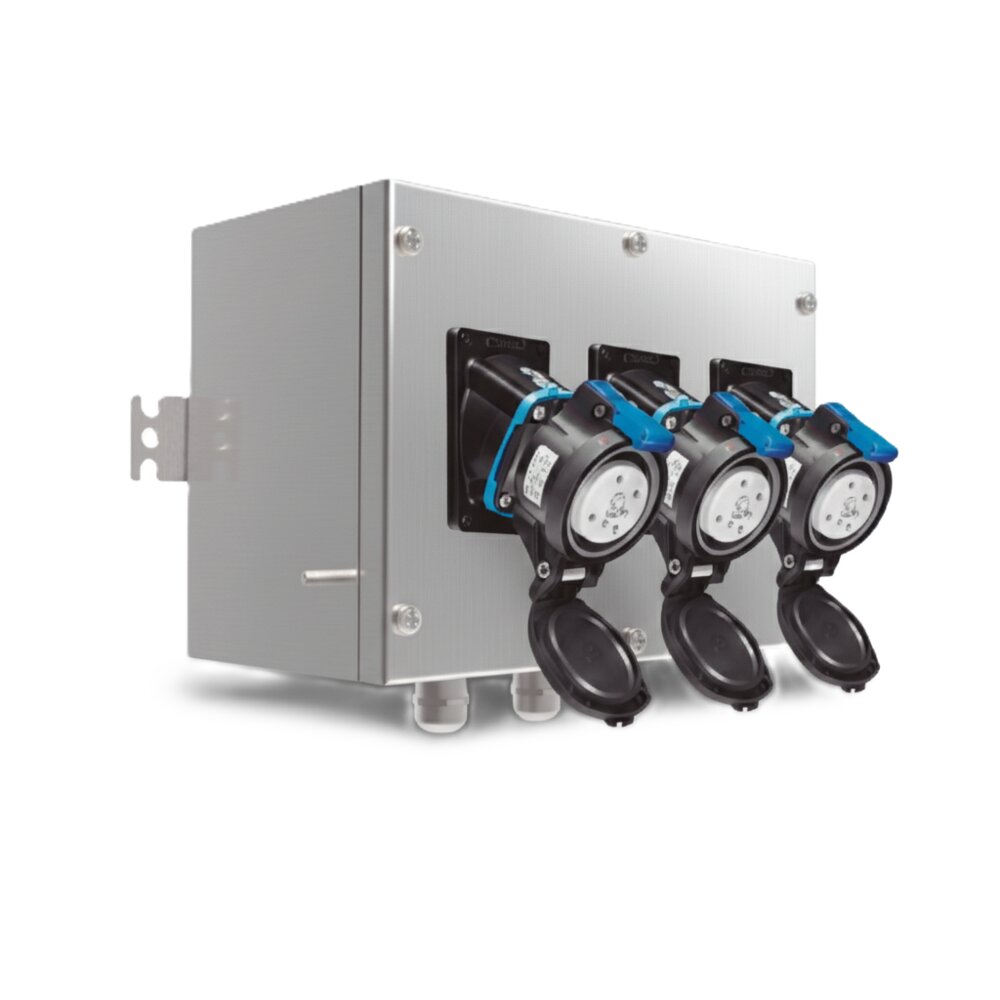

006_cajas-tomas-de-corriente-atex-1_connex_atexdelvalle.e14eb527-4

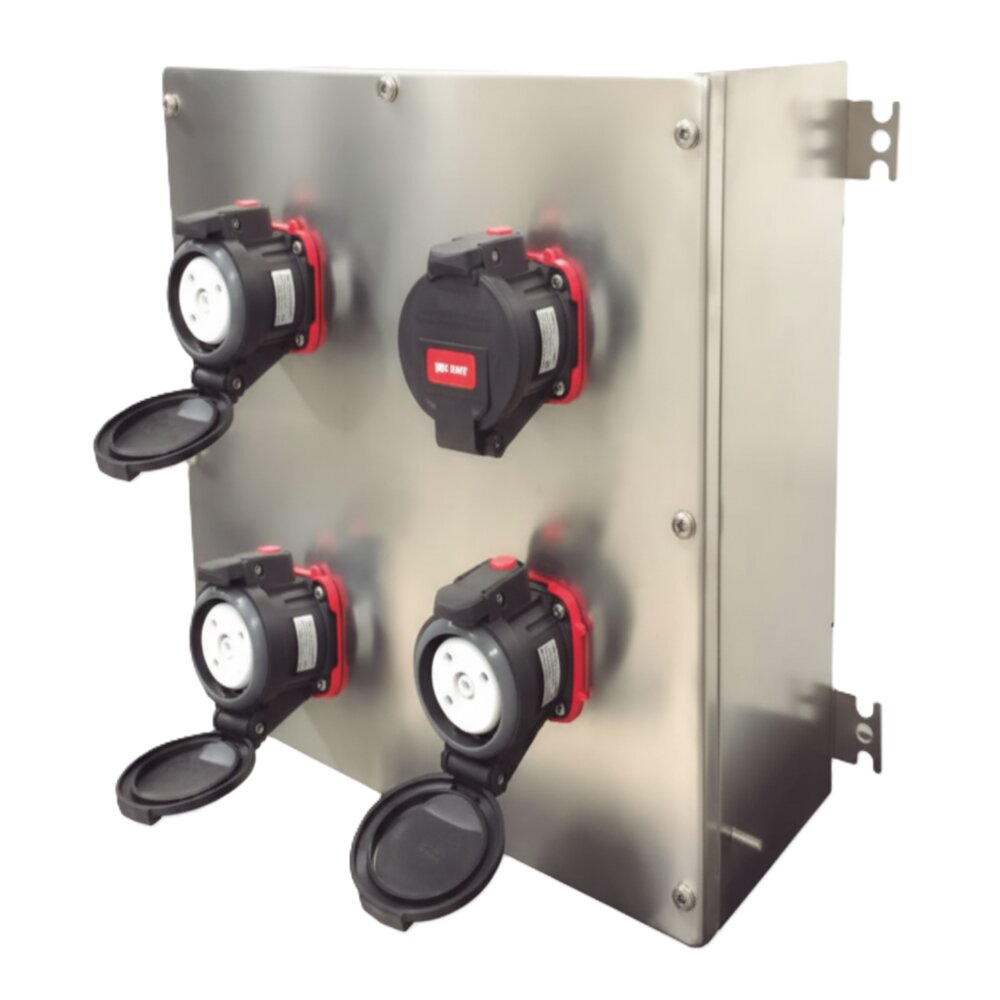

006_cajas-tomas-de-corriente-atex-2_connex_atexdelvalle.33459cdd-4

📄 Technical Sheet plug and socket boxes connex

TECHNICAL DATA

Minimum Dimensions	A=200-400mm B=200-400mm P=150-170mm
Body Thickness	1.5 mm \| 15/10 mm 0.059 " \| 16 Gauge
Door Type	Blind door
Opening Type	Screwed
Useful Depth	0 mm
Material	AISI 304L/AISI 316L
Finish	Satin finish
Working Temperature	Alta temperatura

ALTERNATIVE OPTIONS

Alternative Thicknesses	2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge

Compliance with standards and directives

Automatic sealing

Electrical outlets with integrated cut-off capability

Impact resistance and insensitive to thermal shocks

Chemical and Petrochemical Industry

Food industry

Pharmaceutical industry

Ex lighting networks, Ex connection networks, extension cables.

Lifeboats operating from offshore oil platforms.

Mobile containers, cranes, or any portable equipment

Electric ships or truck hook-ups.

Protection rating: depending on the model, up to IP67

The IP66 / IP67 sealing is reinforced and activates automatically when the socket is connected or the enclosure cover is closed. It allows the product to be used in very humid or dusty envir

Les données pour les applications connectées à la zone Ex permettent de collecter, traiter et analyser des informations pertinentes afin d’optimiser les processus, d’améliorer la sécurité et

EC type-examination certificate: II2 G D

Ex de IIC Gb

ATEX certificate for: Zones 1, 2, 21, and 22

Temperature classification for: Class T6: -25°C to 60°C

Accessories:

Cable Glands Atex Polyamide IP68

Cable Glands Atex Increased Security IP68
