Ex Push Button Station Contrex

We manufacture stainless steel AISI 304 and AISI 316L control station Atex control boxes. They are specially designed to perform checks, maneuvers and as actuators in explosive atmospheres.
Wide variety of sizes and functions, available as standard products for quick supply and as custom built parts to meet the users‘ exact requirement.

We have three models in the Contrex Series:
• Control stations screw closure (Contrex-Geoex Series)
• Hinged terminal & junction boxes (Contrex-Luxorex Series)
• High capacity & junction boxes (Contrex-Tribex Series)

Technical Downloads Product

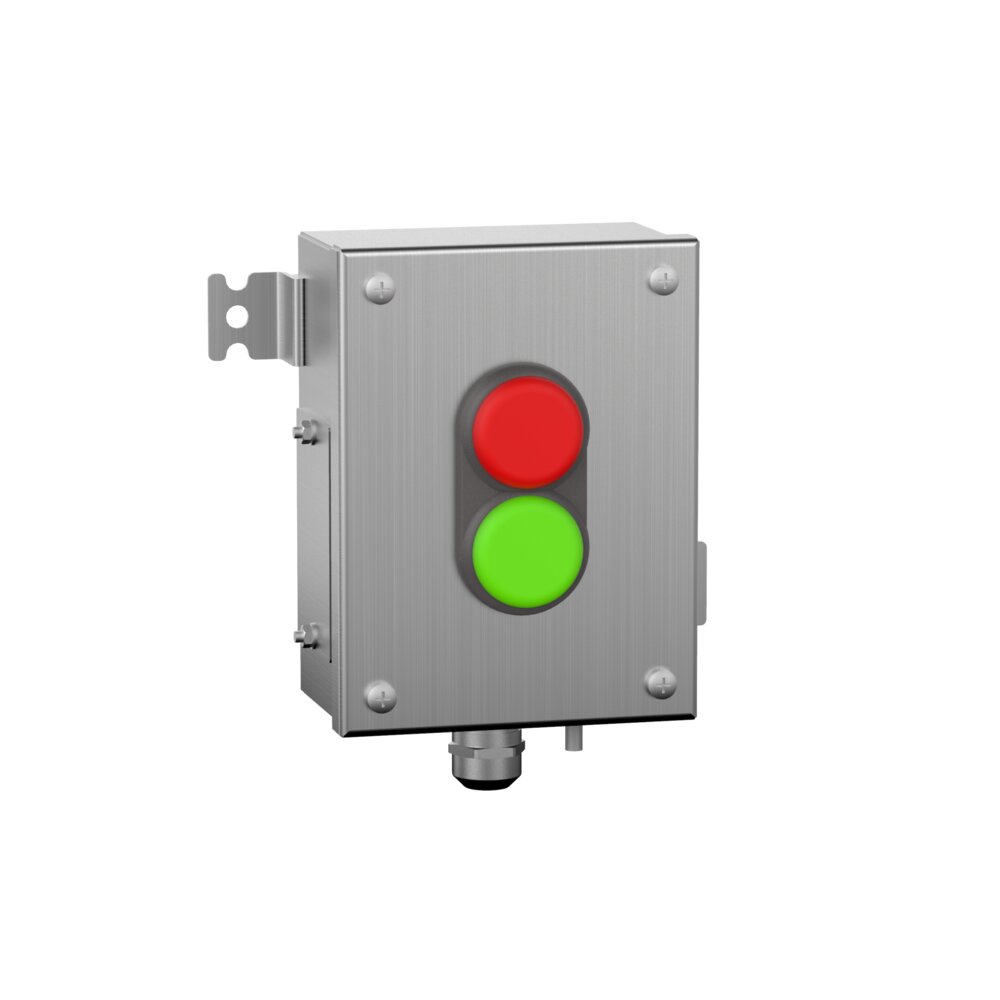

001_botoneras-atex-acero-inoxidable-contrex-1_contrex_atexdelvalle.ab876800-16

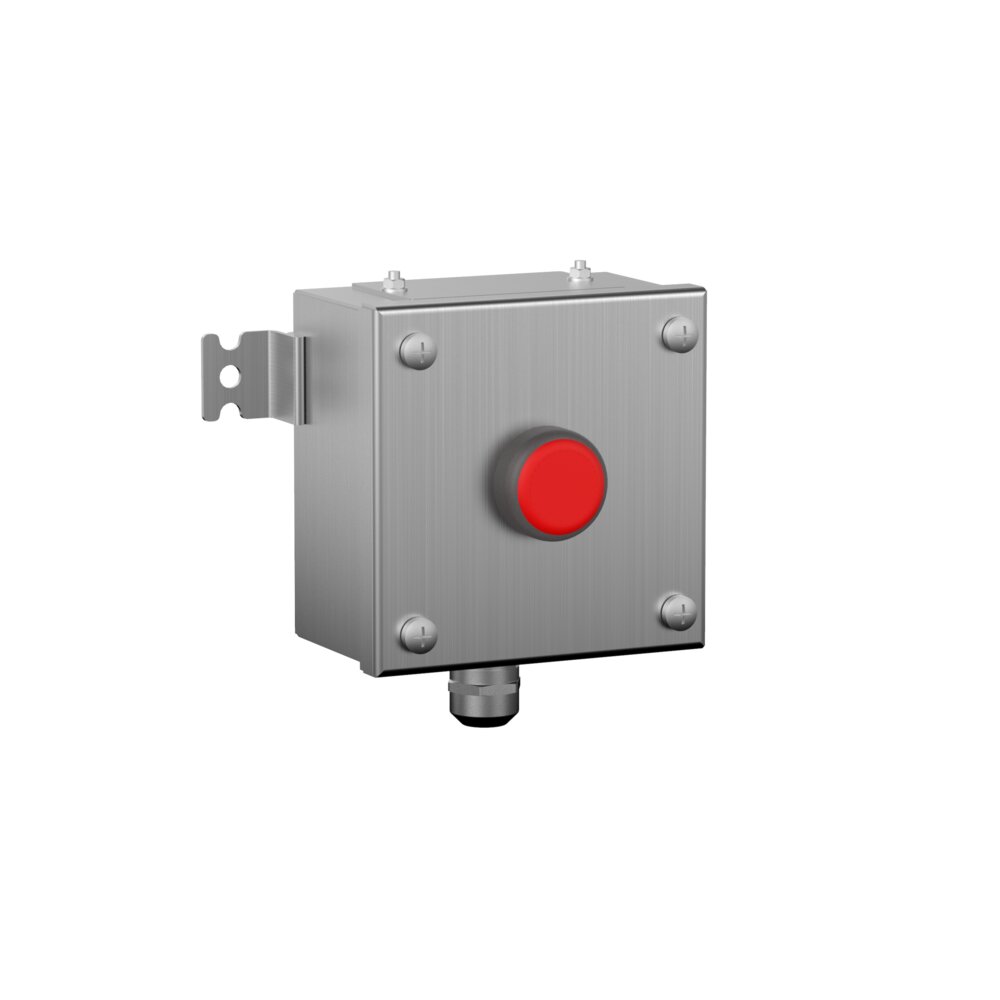

001_botoneras-atex-acero-inoxidable-contrex-2_contrex_atexdelvalle.dfe77ccb-16

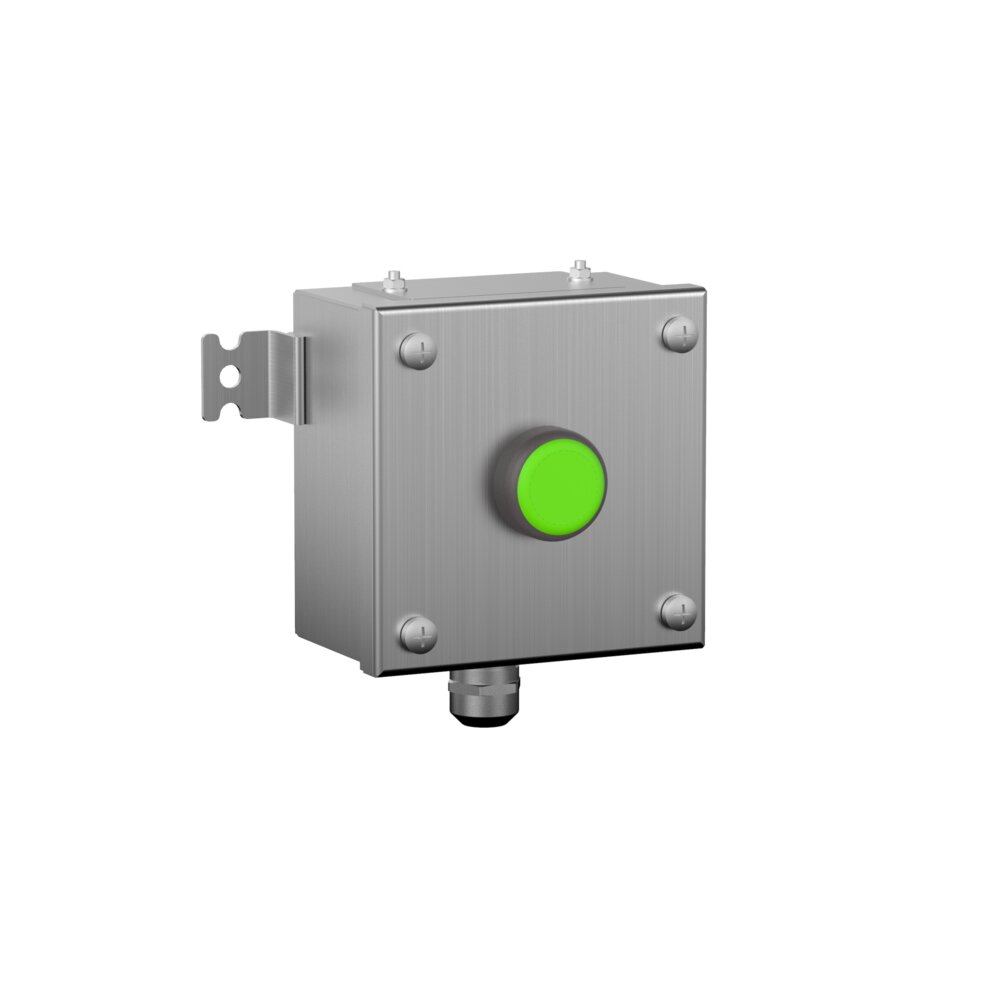

001_botoneras-atex-acero-inoxidable-contrex-3_contrex_atexdelvalle.54b6a7de-16

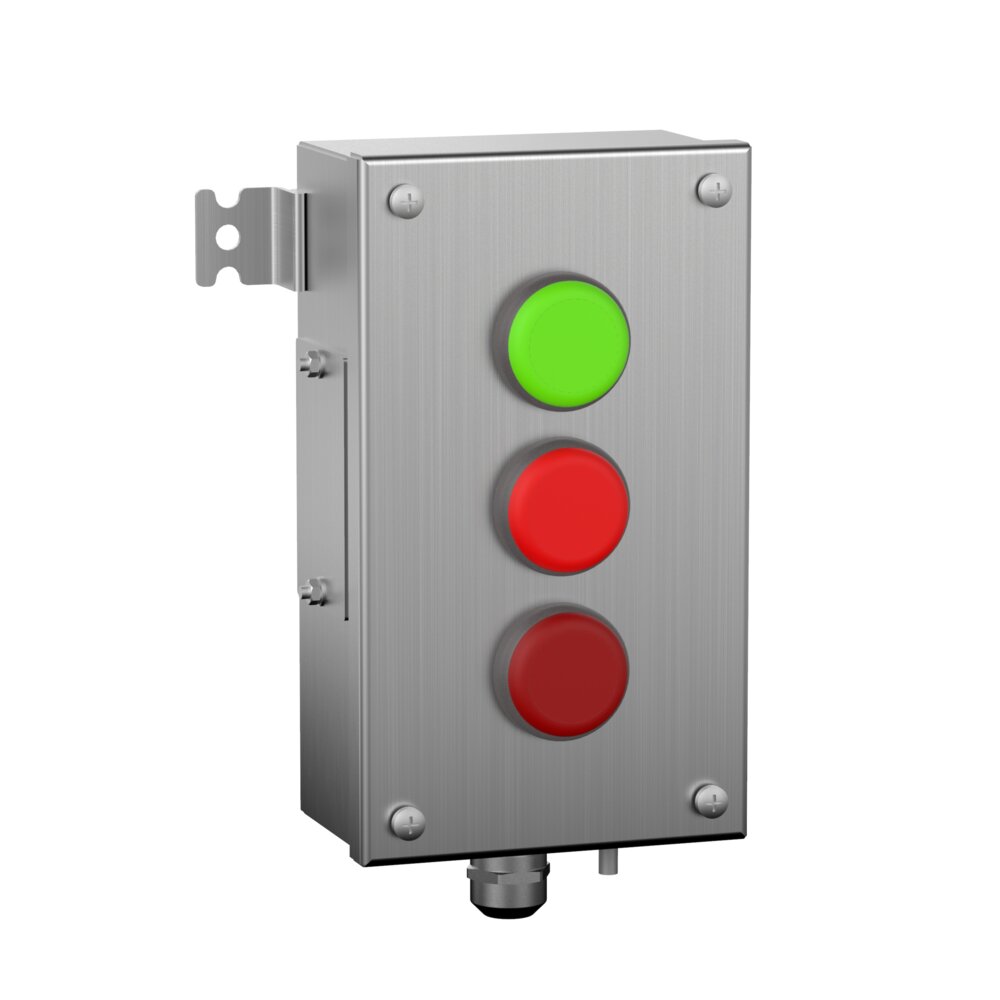

001_botoneras-atex-acero-inoxidable-contrex-4_contrex_atexdelvalle.9e67eb37-16
TECHNICAL DATA
Minimum DimensionsA=124-1800mm   B=124-600mm   P=74-300mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door Opening120 °
Door TypeBlind door
Opening TypeScrewed, Giratoria
Closing SystemDouble-bit quarter-turn locks
Useful DepthMín 75mm mm
MaterialAISI 304L/AISI 316L
FinishSatin finish
Watertight SealPolyurethane
Working Temperature-25ºC <Ta< +60ºC
Maximum Voltage1100V
ALTERNATIVE OPTIONS
Alternative SealsJunta silicona esponjosa: -45ºC<Ta<135ºC
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Choose the component that best fits your equipment.
Take control in any zone with maximum safety and flexibility.
ATEX control stations and control boxes in GRP reinforced polyester
Simple assembly
Custom solutions
Allows you to perform maneuvers and controls at the machine in hazardous areas
You can take programming and automation to a secure area.
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX2082
IECEx LOM 18.0001X
Gas explosion protection: Ex II2G Ex demq ia/ib [ia/ib] IIA, IIB, IIC T6,T5,T4
Dust explosion protection: Ex II2D Ex tb T80°C 95°C 130°C Db
Ambient temperature: -25°C to +60°C
Protection: IP66

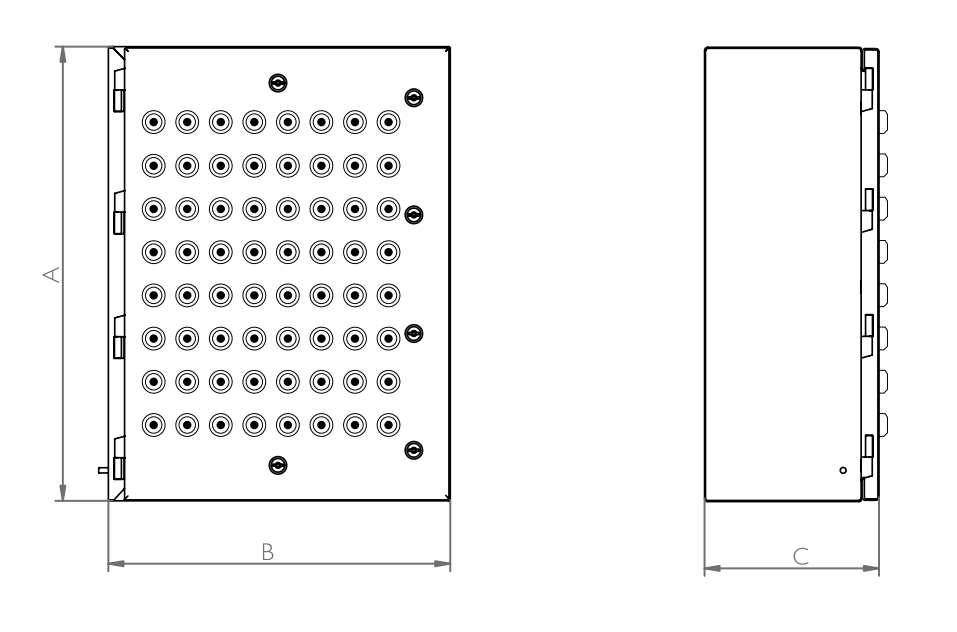

Sketch:

product sketch
