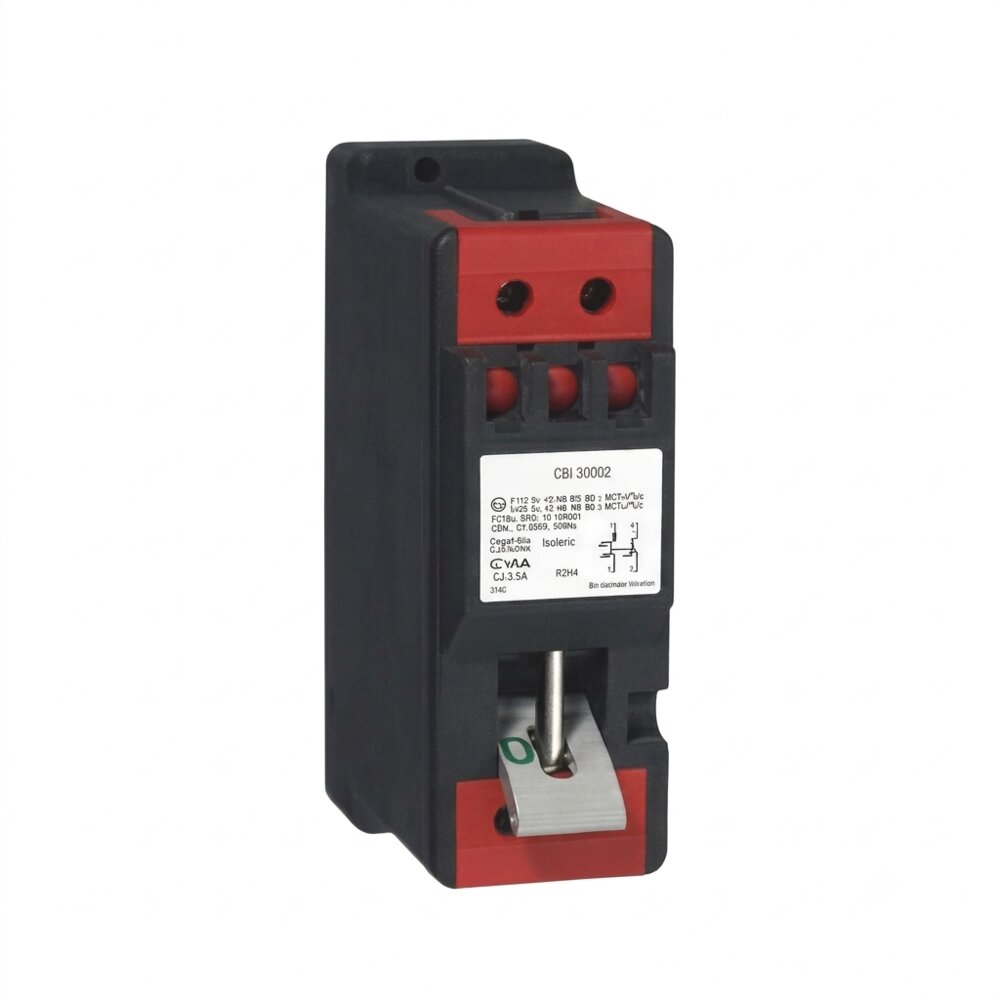

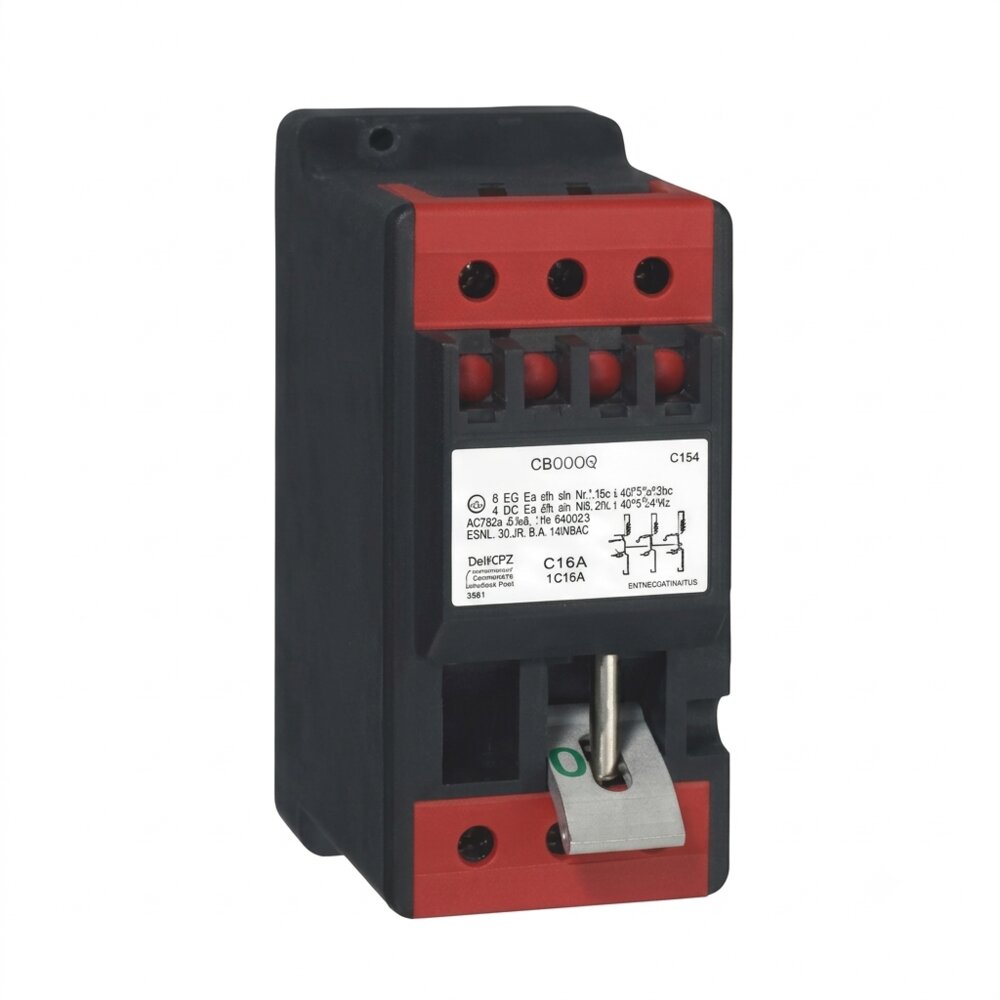

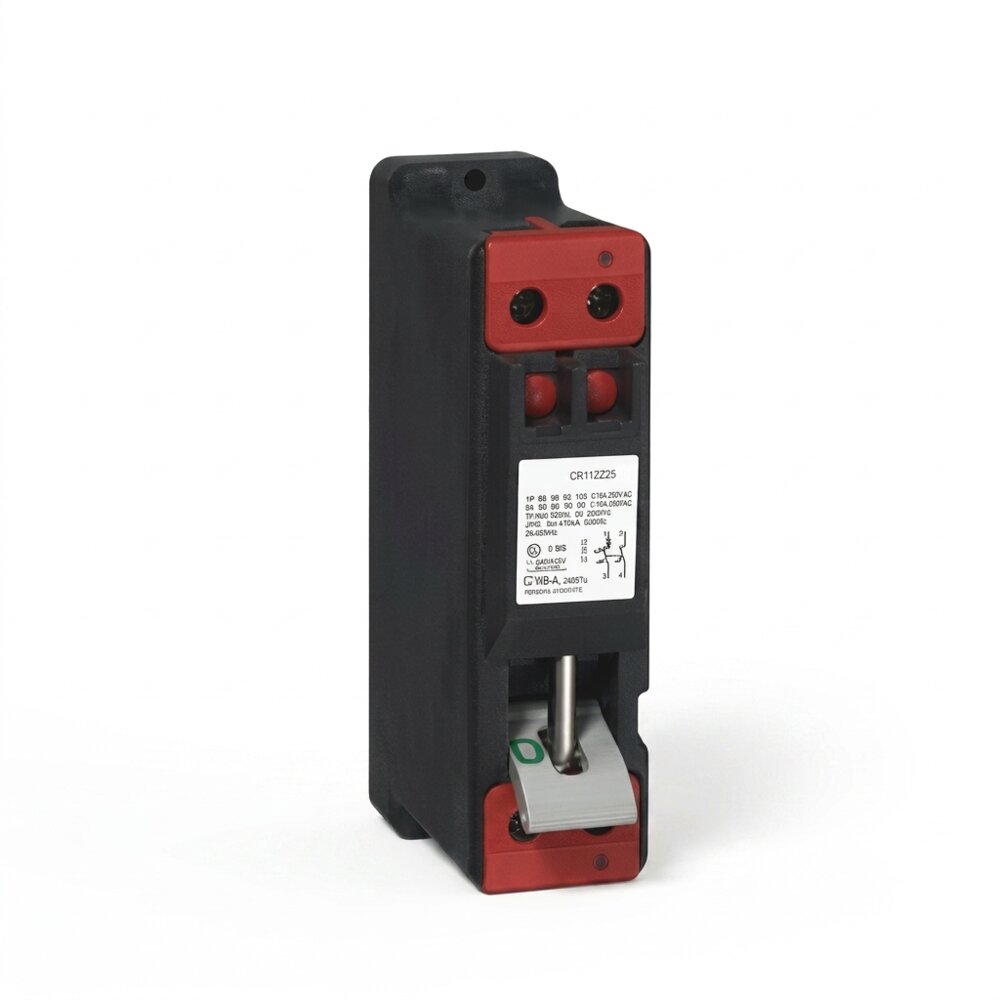

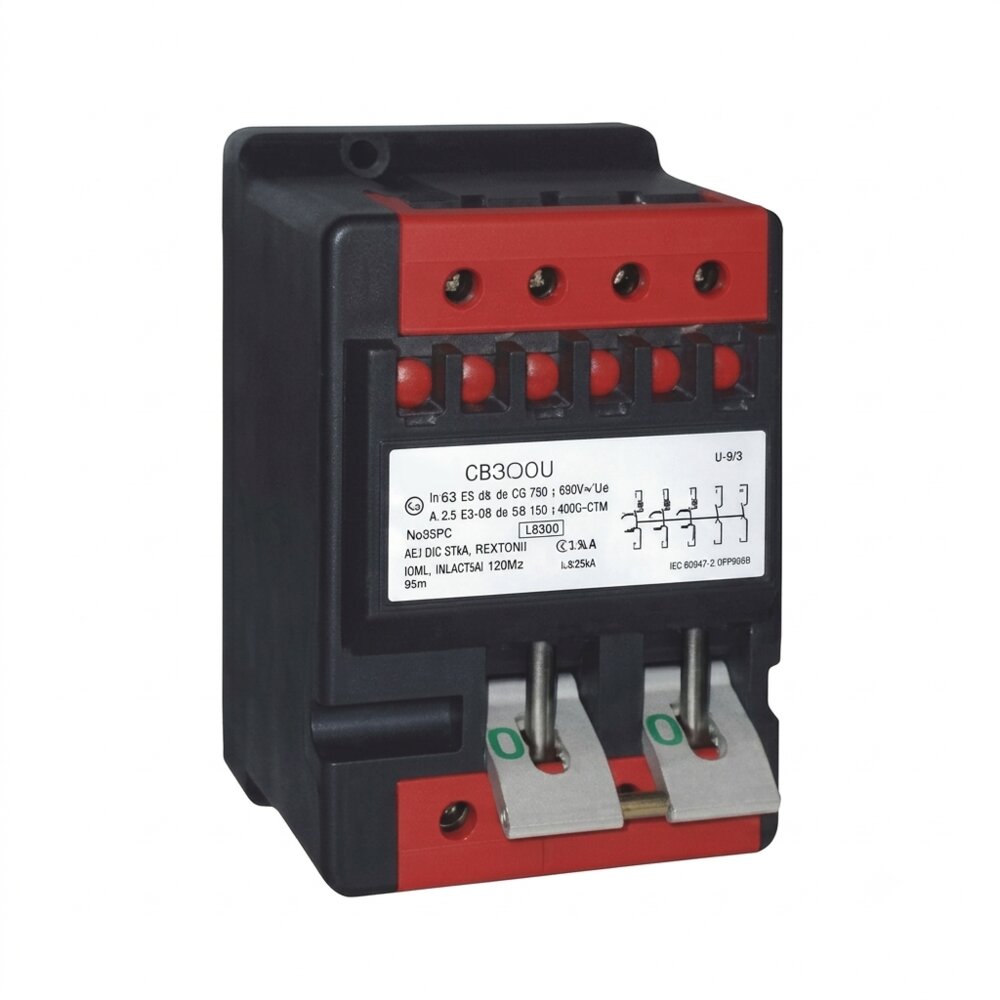

Ex Circuit Breakers Module

Circuit breakers that provide reliable protection for conductors in hazardous areas offers a variety of different circuit breakers designed for specific intended purposes in hazardous areas, each and every one of which provides outstanding protection against overloading and short-circuiting.
Delvalle produces various types of circuit breaker, which protect your systems against overloading and short-circuiting. They are designed for rated currents of 0.5-40A and can switch 6 or 10 kA.

Designed for installation in 'Ex e' enclosures
CML 19ATEX1299U
IECEx CML 19.0084U
II2G Ex db eb IIC Gb
Directive 2014/34/EU
EN IEC 60079-0:2018
EN 60079-1:2014
EN IEC 60079-7:2015+A1:2018
IEC 60079-0:2017
IEC 60079-1:2014-06
IEC 60079-7:2017
-20ºC - +60ºC (IIC)
-40ºC - +60ºC (IIB)
-20ºC - +110ºC (IIC)
-40ºC - +110ºC (IIB)

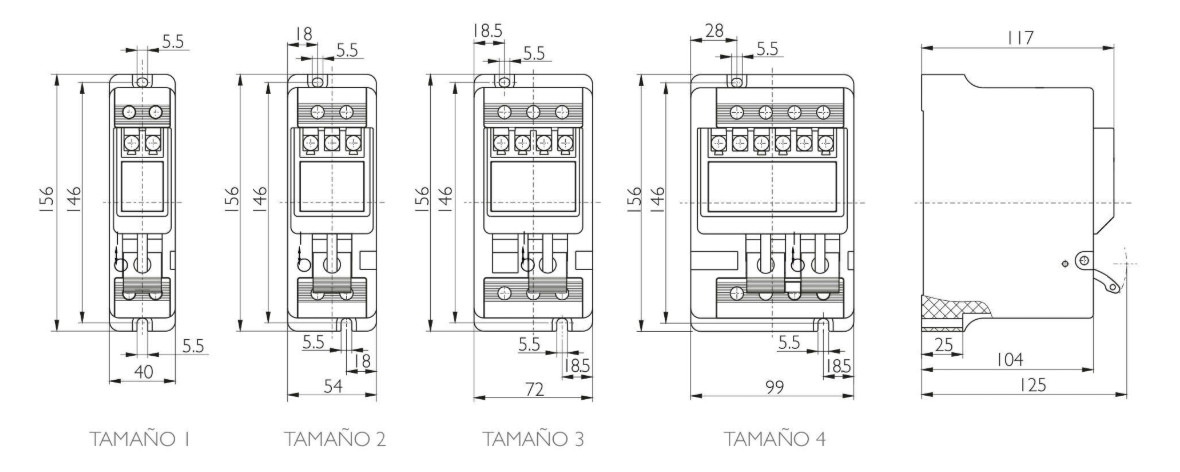

Sketch:

product sketch
