Home > Products > Ex Residual Current Circuit Breaker Module

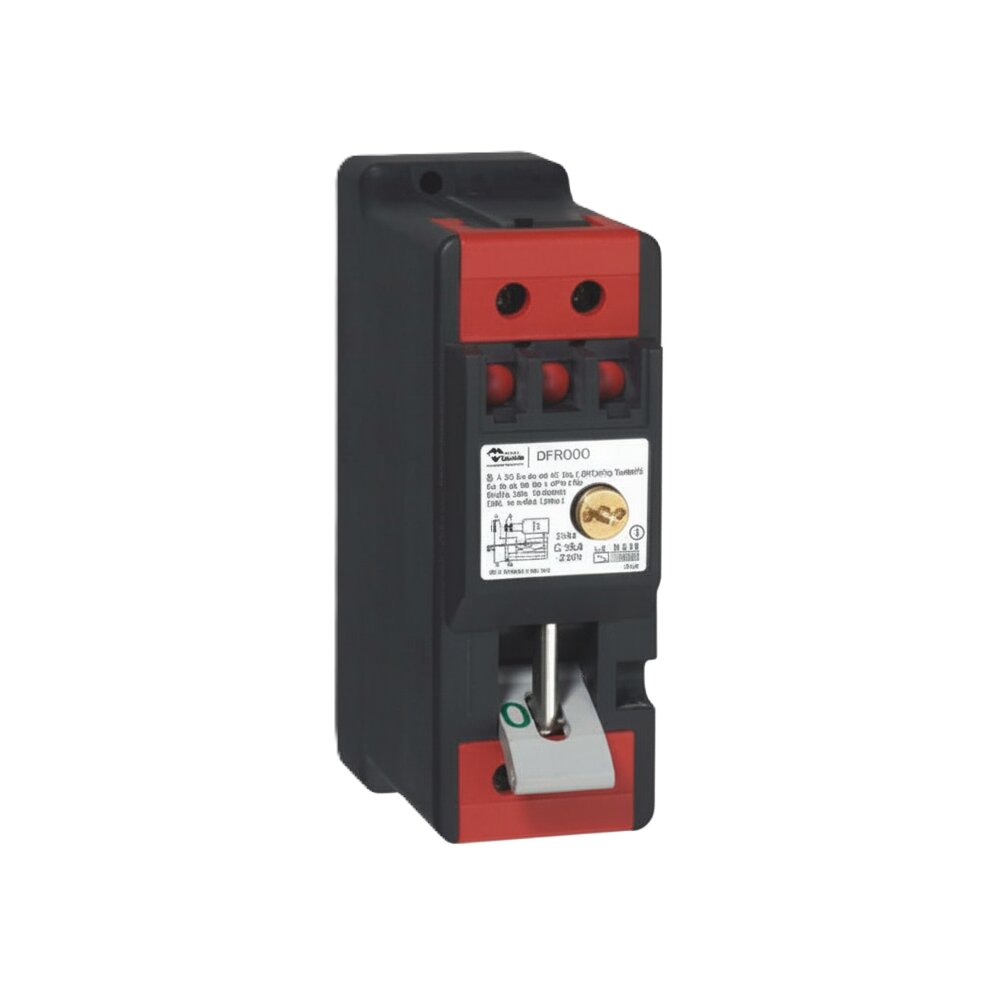

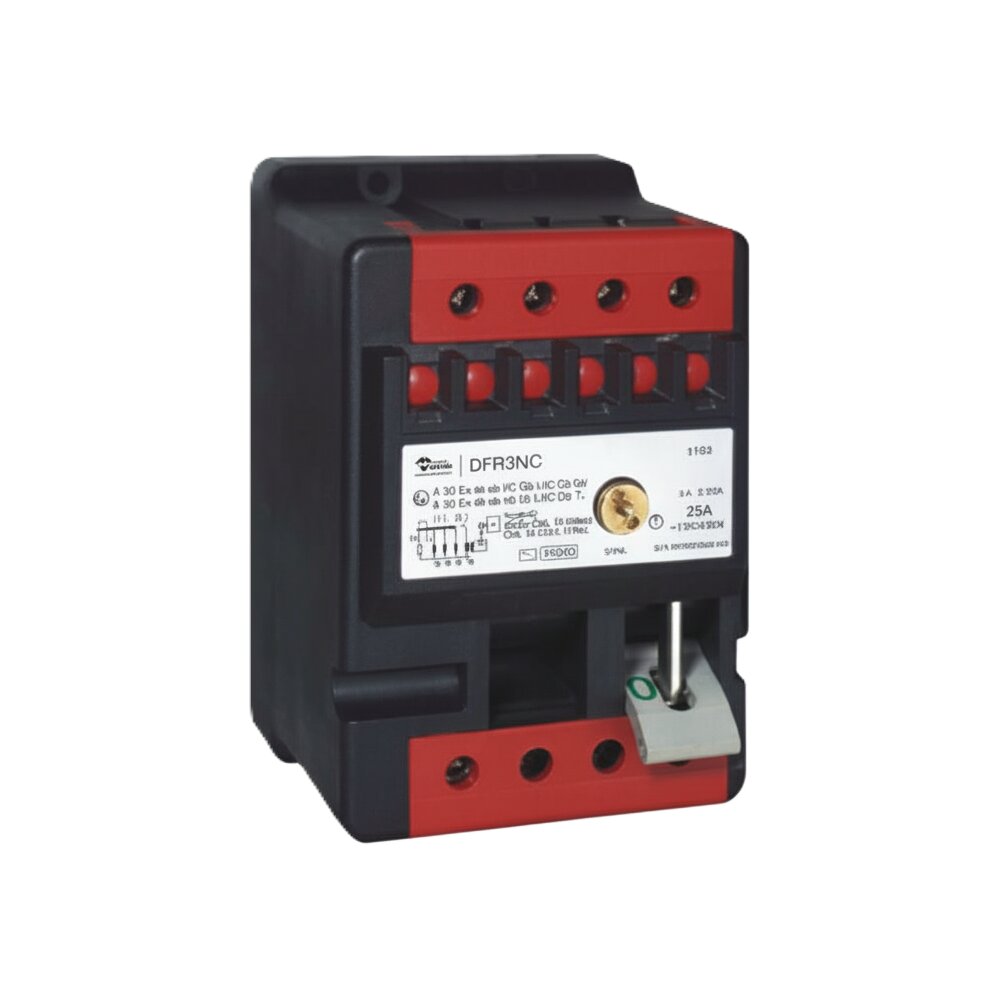

Ex Residual Current Circuit Breaker Module

Delvalle residual current circuit breaker is a component for residual current monitoring and switches systems in the event of resudial currents, for reliable protection of persons in hazardous areas.
It is suitable for rated operational currents of 6A, 10A, 16A, 20A, 25A, 32A and 40A, and rated residual currents of 10, 30, 100 and 300 mA.

Designed for installation in 'Ex e' enclosures
CML 19ATEX1299U
IECEx CML 19.0084U
II2G Ex db eb IIC Gb
Directive 2014/34/EU
EN IEC 60079-0:2018
EN 60079-1:2014
EN IEC 60079-7:2015+A1:2018
IEC 60079-0:2017
IEC 60079-1:2014-06
IEC 60079-7:2017
-20ºC - +60ºC (IIC)
-40ºC - +60ºC (IIB)
-20ºC - +110ºC (IIC)

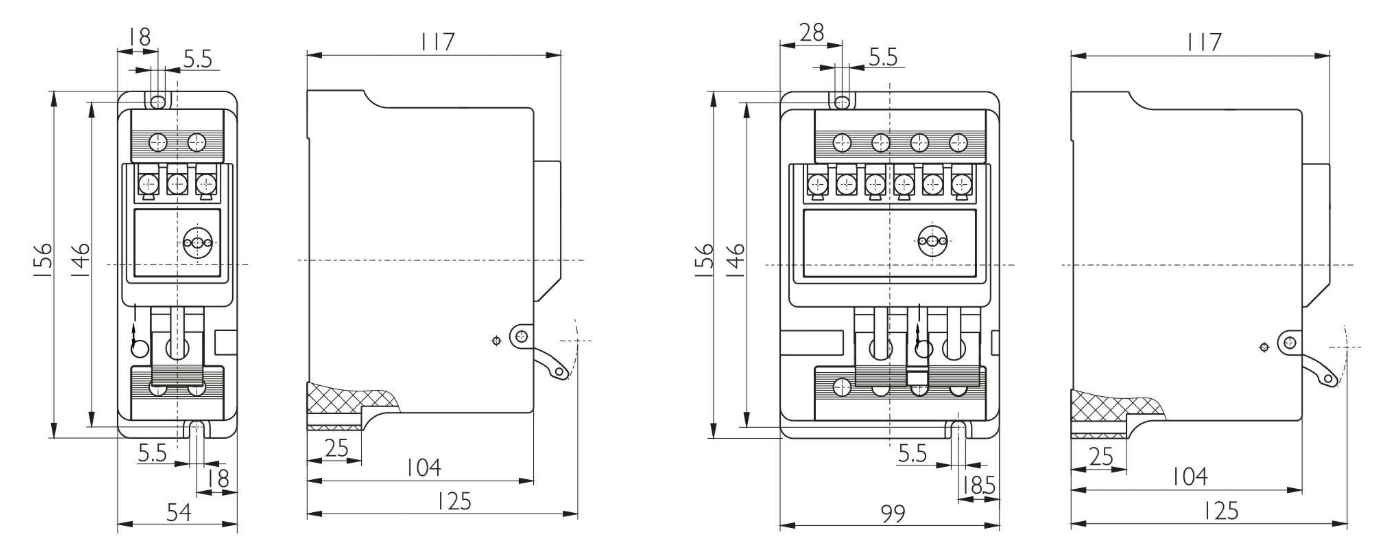

Sketch:

product sketch
