Home > Products > Ex Signal Lamp Module

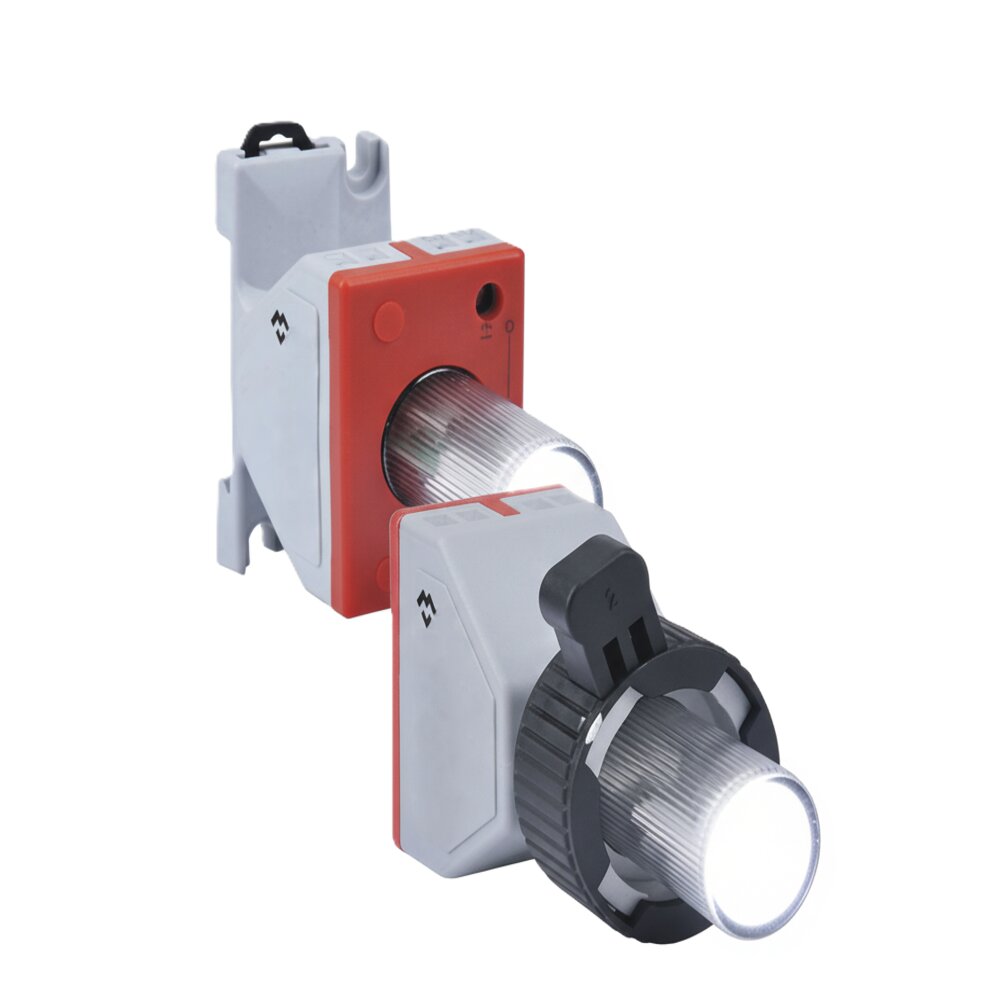

Ex Signal Lamp Module

Delvalle explosion-proof signal lamp module shall be used together with corresponding operation head and shall be mounted inside ‘Ex e’ enclosure conform to Atex and IECEx certifications.
Zones 1 and 2 and can be used in two available Ex marking and two low temperature ratings for option -40°C / -55°C.

Technical Downloads Product
011_modulo-de-pulsador-luminoso-atex_atexdelvalle.05a13709-7
Front mounting on rail
Rear mounting
Atex push buttons
CML 19ATEX1294U
IECEx CML 19.0079U
Ex db eb IIC Gb
-40 °C / -55 °C (optional) to +60 °C
-40 °C / -55 °C (optional) to +50 °C (380 V ~ 400 V AC)
-40ºC / -55ºC (optional) to +90ºC
Directive 2014/34/UE
EN IEC 60079-0:2018
EN IEC 60079-7:2015+A1:2018
EN 60079-1:2014
IEC 60079-0:2017
IEC 60079-1:2014-06
IEC 60079-7:2017
Protection rating: IP20

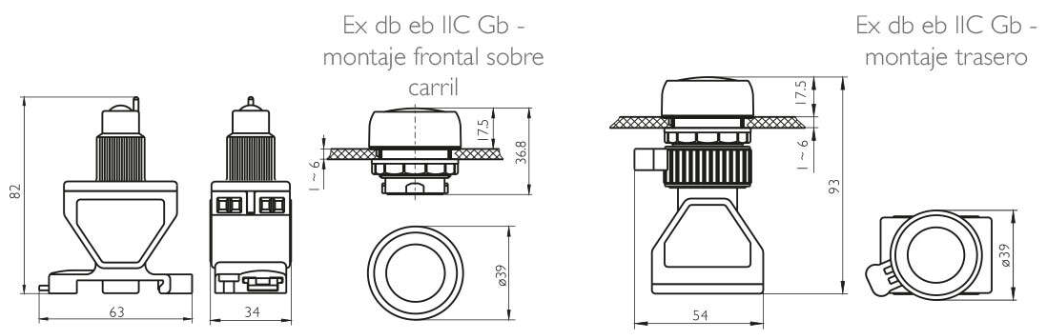

Sketch:

product sketch
