Home > Products > Galva Ex Push Buttons

Galva Ex Push Buttons

Atex & IECEx certified push buttons and control boxes they are specially designed to perform checks, maneuvers and as actuators in explosive atmospheres.
Offering customers great combinations and flexibility; they have a rugged, anti-corrosion system and finished, painted galvanized steel surface finish in RAL 9005.
They it allows you to perform maneuvers and automation controls at the machine in hazardous areas control. Select the components that best suit your operator panels, keypads, mushrooms, switches, HMI,… and we assemble all with Atex certified Ex, IECEx and UL. We have huge stock for immediate delivery!

Technical Downloads Product

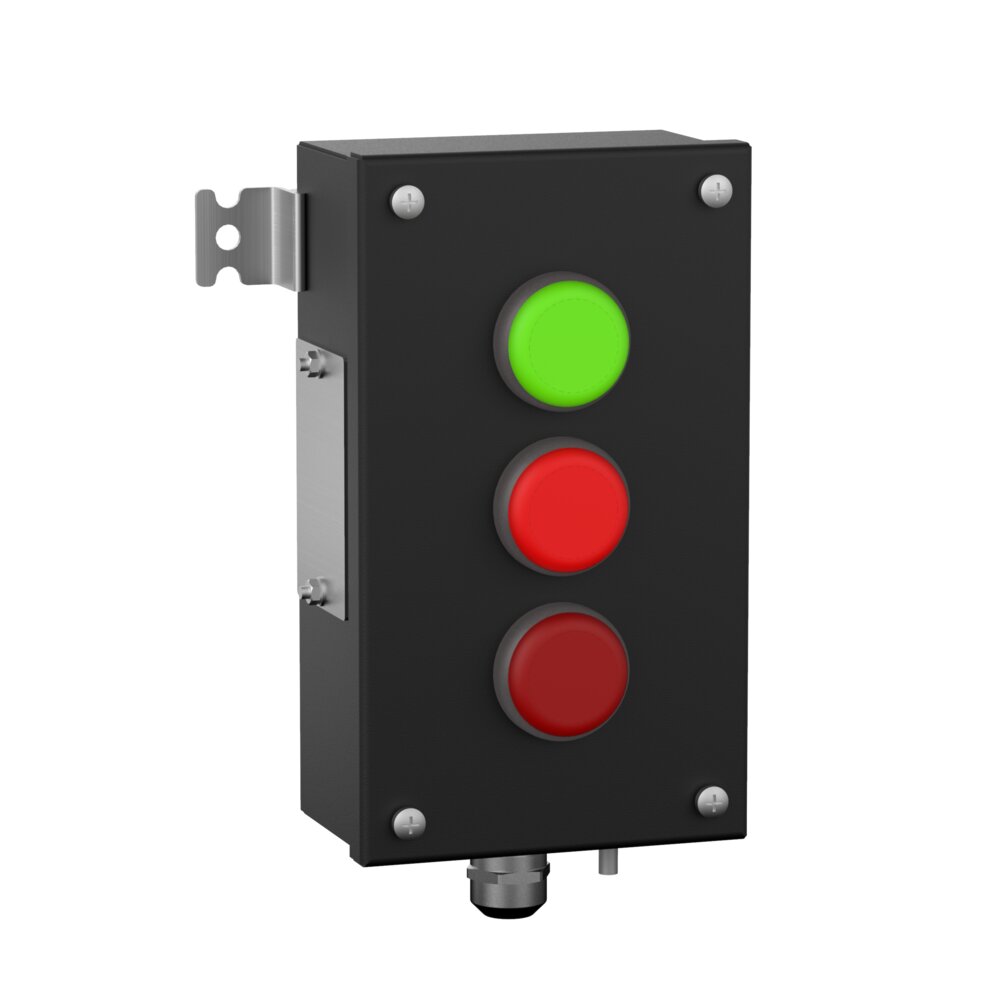

001_botoneras-atex-galvanizadas-1_contrex_atexdelvalle.bb7eb4ae-16

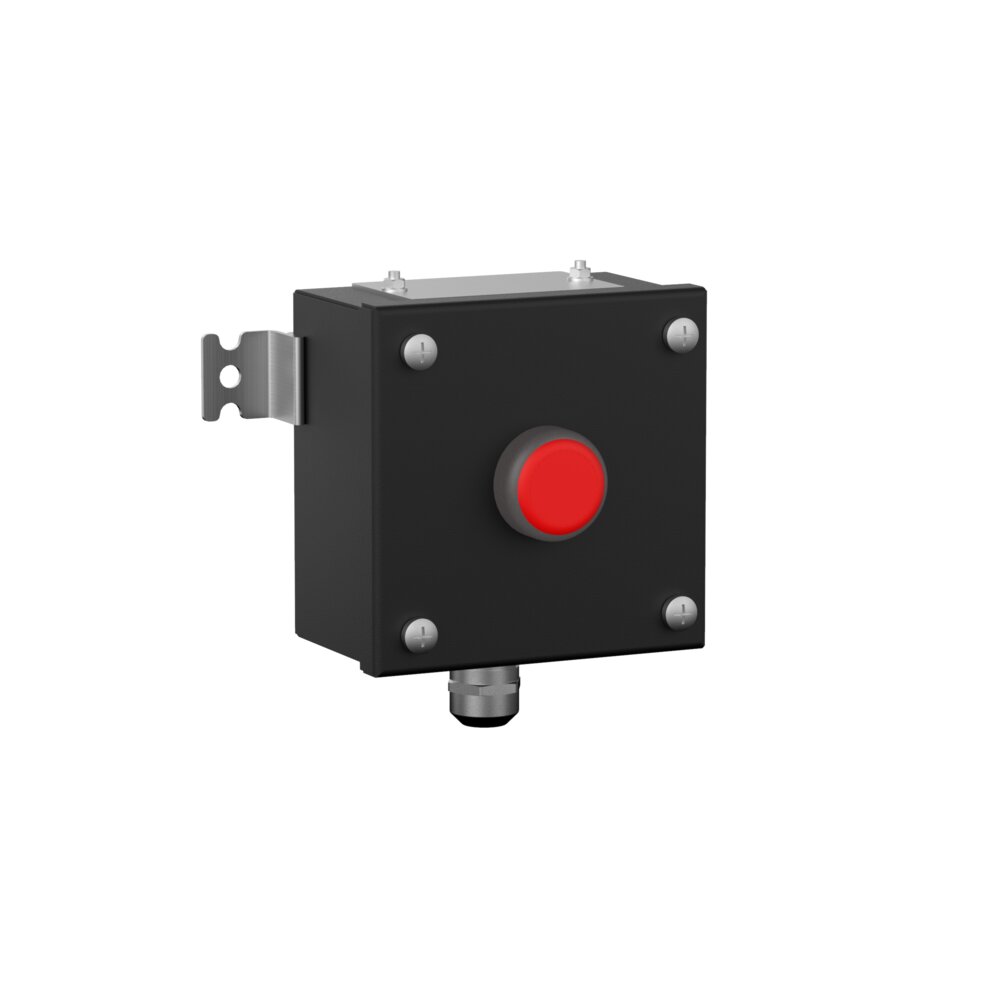

001_botoneras-atex-galvanizadas-2_contrex_atexdelvalle.3988cb1f-13

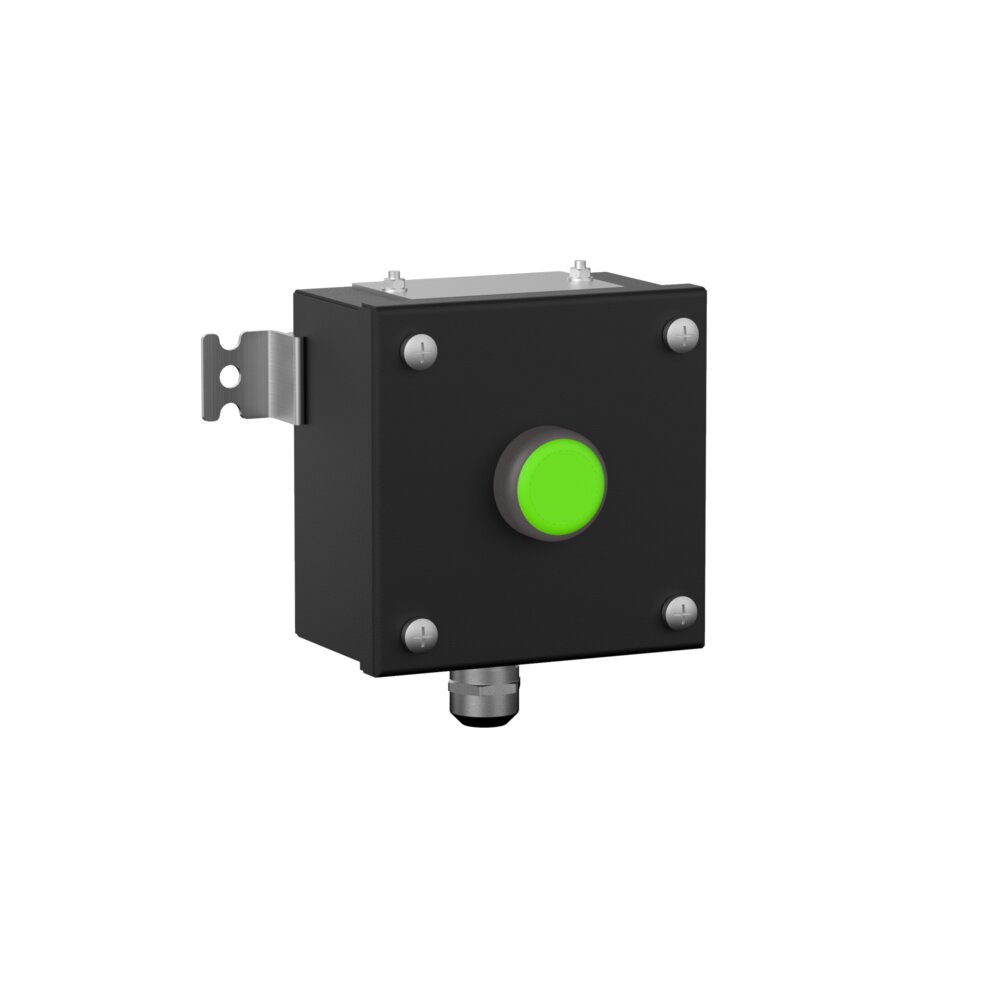

001_botoneras-atex-galvanizadas-3_contrex_atexdelvalle.fba6a34c-13

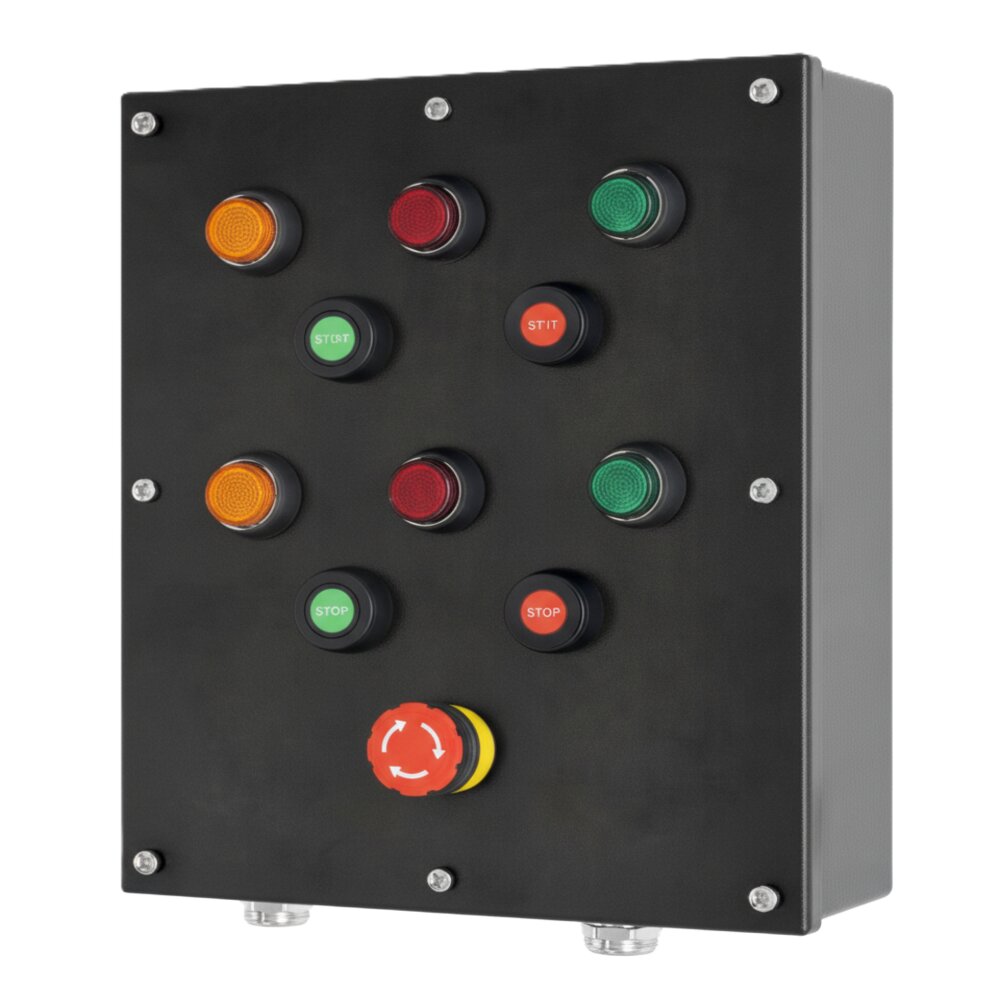

001_botoneras-atex-galvanizadas-4_contrex_atexdelvalle.f677397e-4

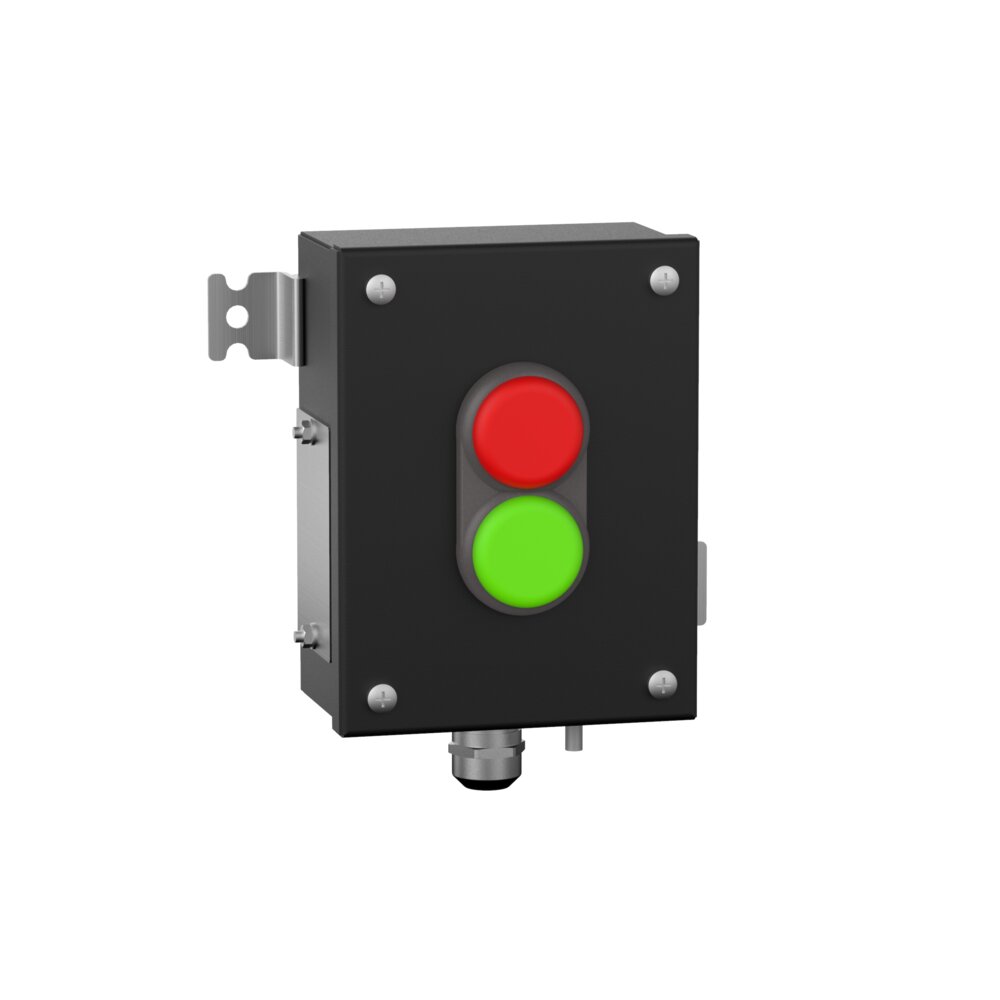

001_botoneras-atex-galvanizadas-5_contrex_atexdelvalle.7091c425-13
TECHNICAL DATA
Minimum DimensionsA=120-400mm   B=120-400mm   P=90-150mm
Minimum Plate DimensionsA=70-0mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth0 mm
MaterialPainted galvanized steel
FinishPainted
Working Temperature-25ºC <Ta< +60ºC
ALTERNATIVE OPTIONS
Alternative MaterialsAISI 304L, AISI 316L
Alternative Finishes2B
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Possibility of superior watertightness: IP67 or IP68.
Custom-made according to your needs (dimensions and actuators).
Option to include terminals
Standard: one M25 cable gland on the bottom side.
Special: placement of cable glands on any of its faces, upon request.
Special: textured paint finish in other RAL colors, upon request.
Possibility of manufacturing the enclosure in AISI 304L or AISI 316L stainless steel.
We are manufacturers
We manufacture to measure for your projects (actuators, button boxes...)
Custom solutions for your project, with easy assembly and flexible configuration
International IECEx, Atex and UL certifications
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX2082
IECEx LOM 18.0001X
Gas explosion protection: Ex II2G Ex demq ia/ib [ia/ib] IIA, IIB, IIC T6,T5,T4
Dust explosion protection: Ex II2D Ex tb T80°C 95°C 130°C Db
Ambient temperature: -25°C to +60°C
Protection: IP66

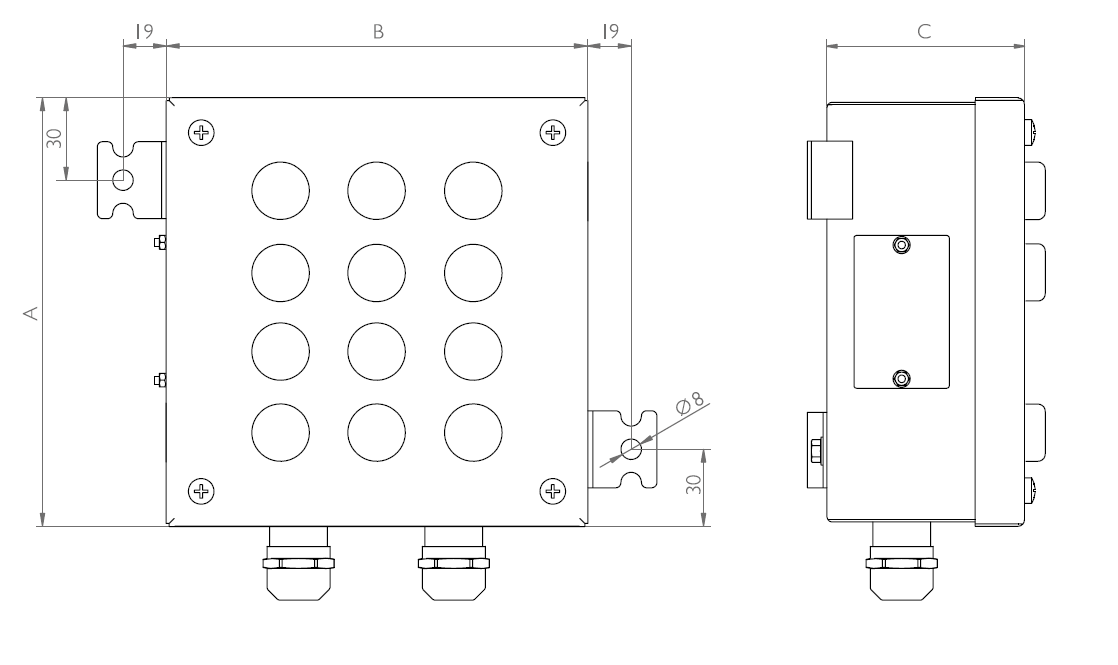

Sketch:

product sketch
