Home > Products > Gland Plate Ex e Terminal & Juntion Boxes

Gland Plate Ex e Terminal & Juntion Boxes

The Ex e terminal & juntion boxes Terbox Series, include a removable cable gland plate, being useful and effective in advance to place and mechanize the different holes for cable glands and even keypads.

This equipment consists in a waterproof IP65, robust, safe and corrosion resistant Ex terminal box, which has been specially designed to the customer’s specifications to perform the product and can deliver it in a record time.
These terminal boxes are placement in areas whereas a corrosive and hazardous areas.

Technical Downloads Product

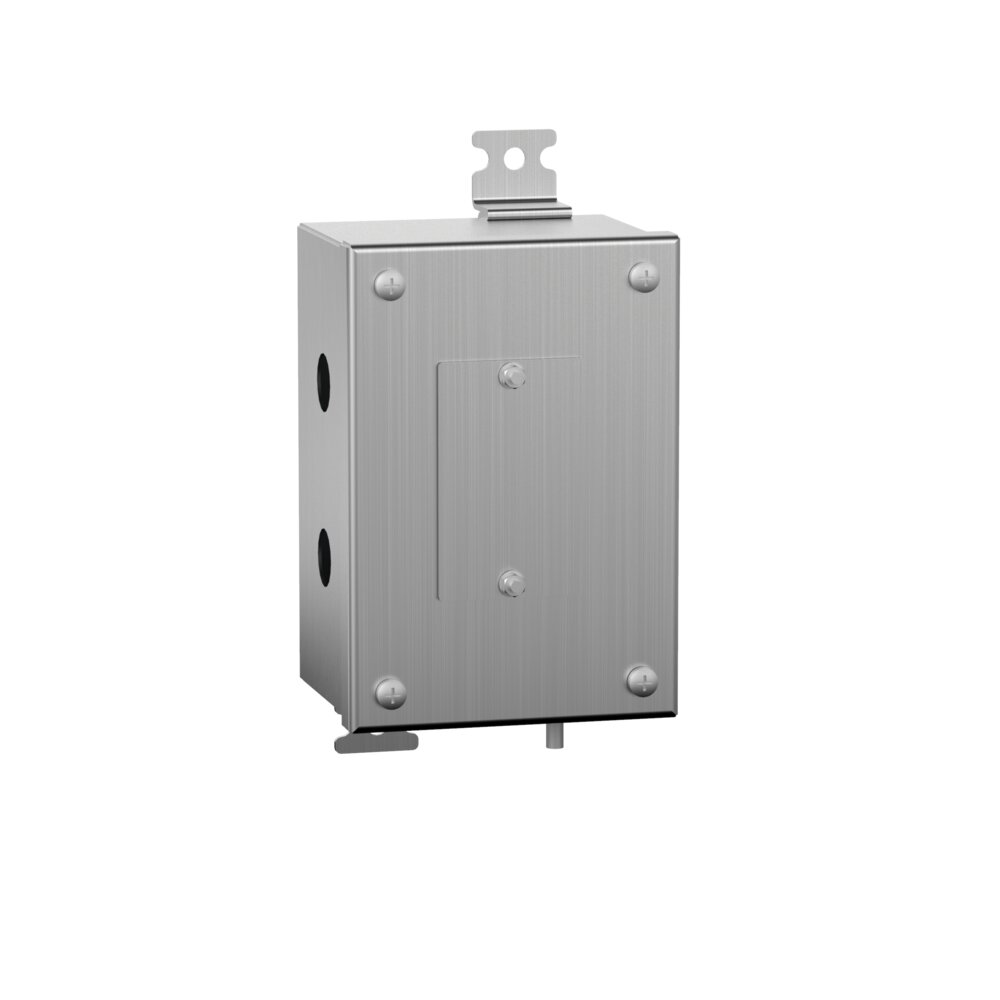

010_caja-de-terminales-con-tapa-pasacables-terbox-1_terbox_atexdelvalle.69dfcec0-19

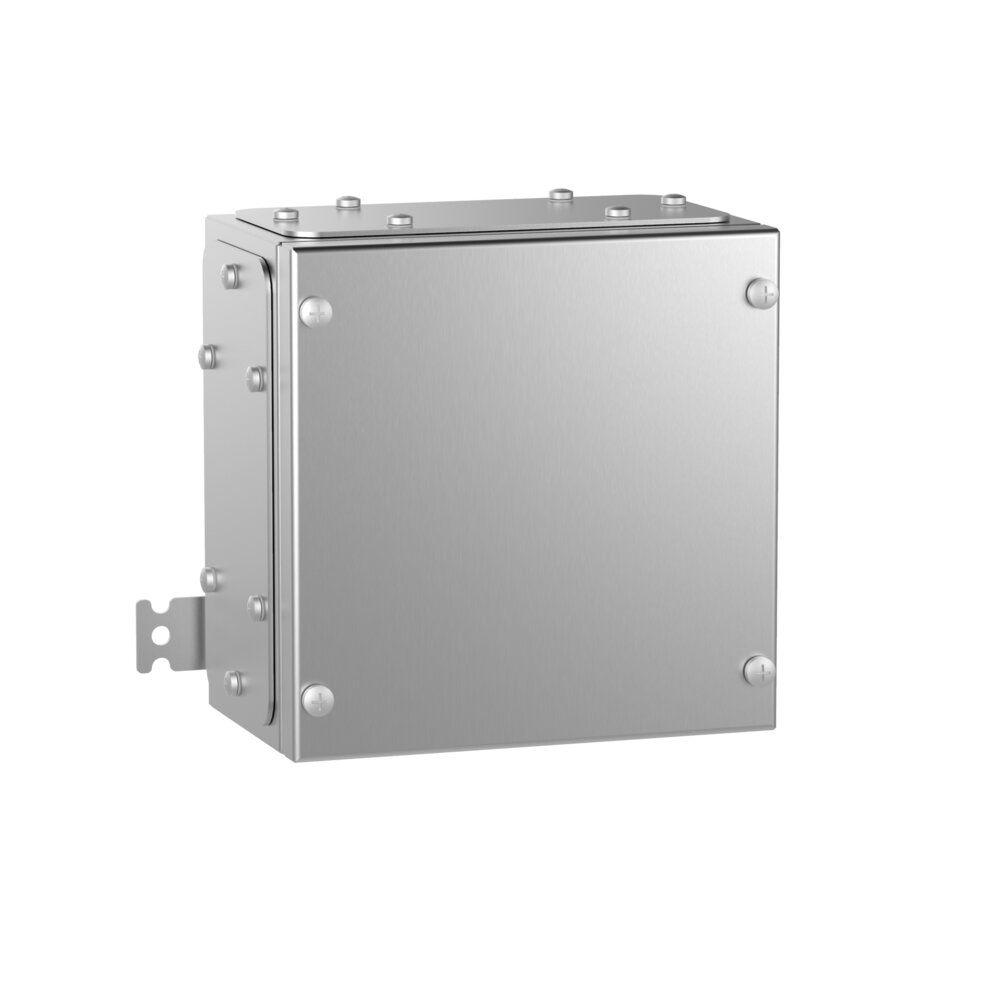

010_caja-de-terminales-con-tapa-pasacables-terbox-2_terbox_atexdelvalle.84e95e46-19

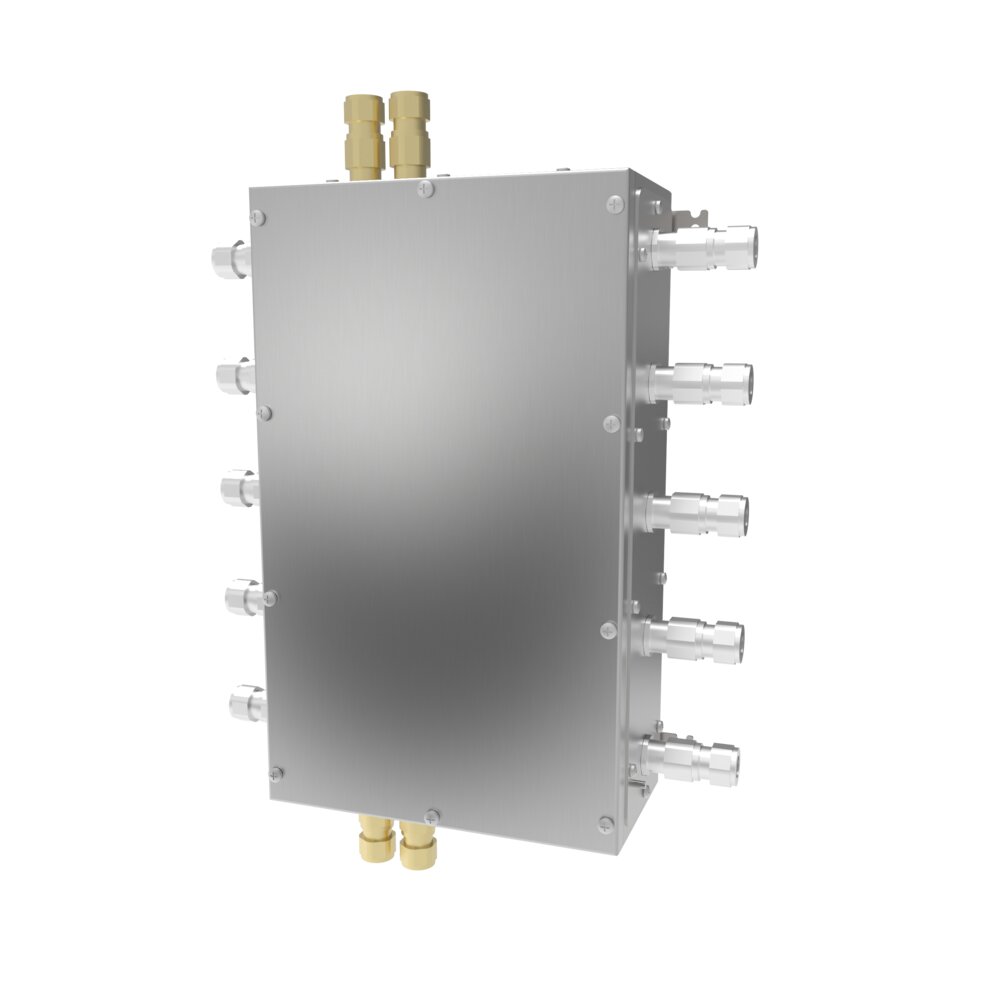

010_caja-de-terminales-con-tapa-pasacables-terbox-3_terbox_atexdelvalle.dc1c378e-10

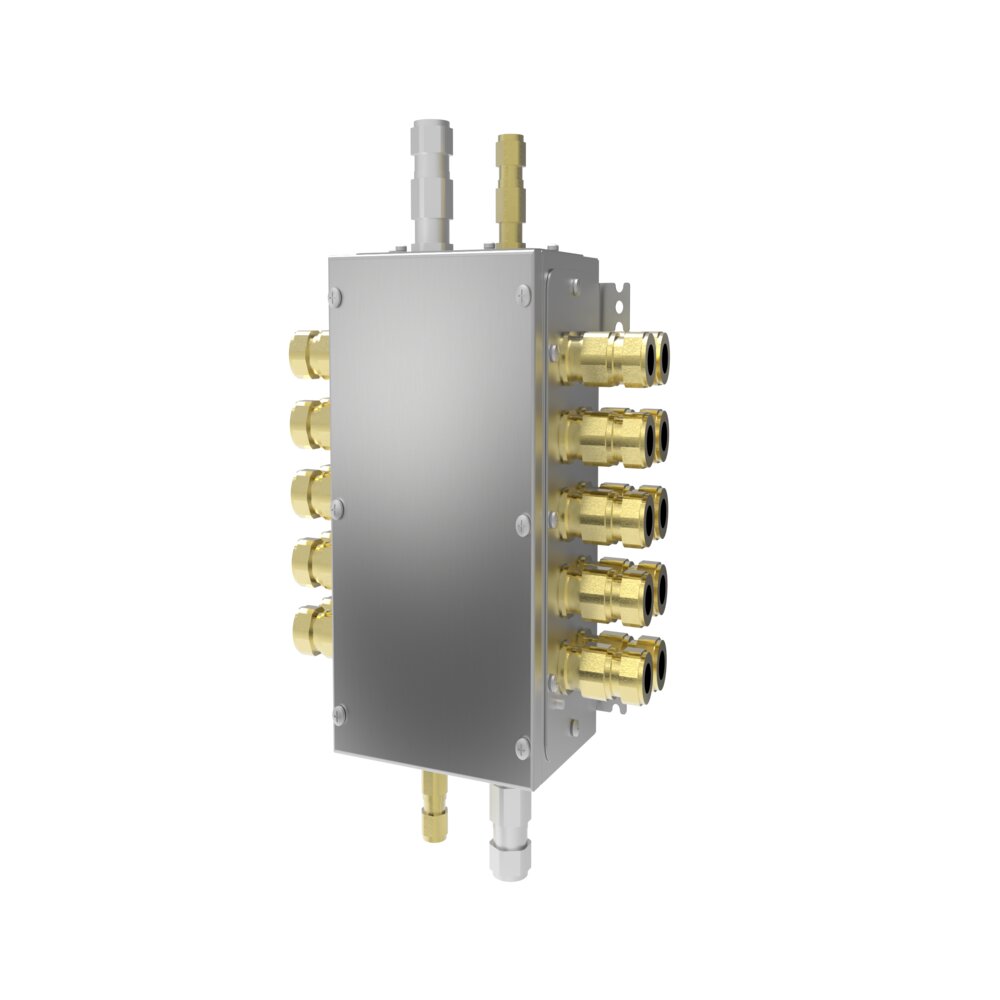

010_caja-de-terminales-con-tapa-pasacables-terbox-4_terbox_atexdelvalle.b32d54d1-10

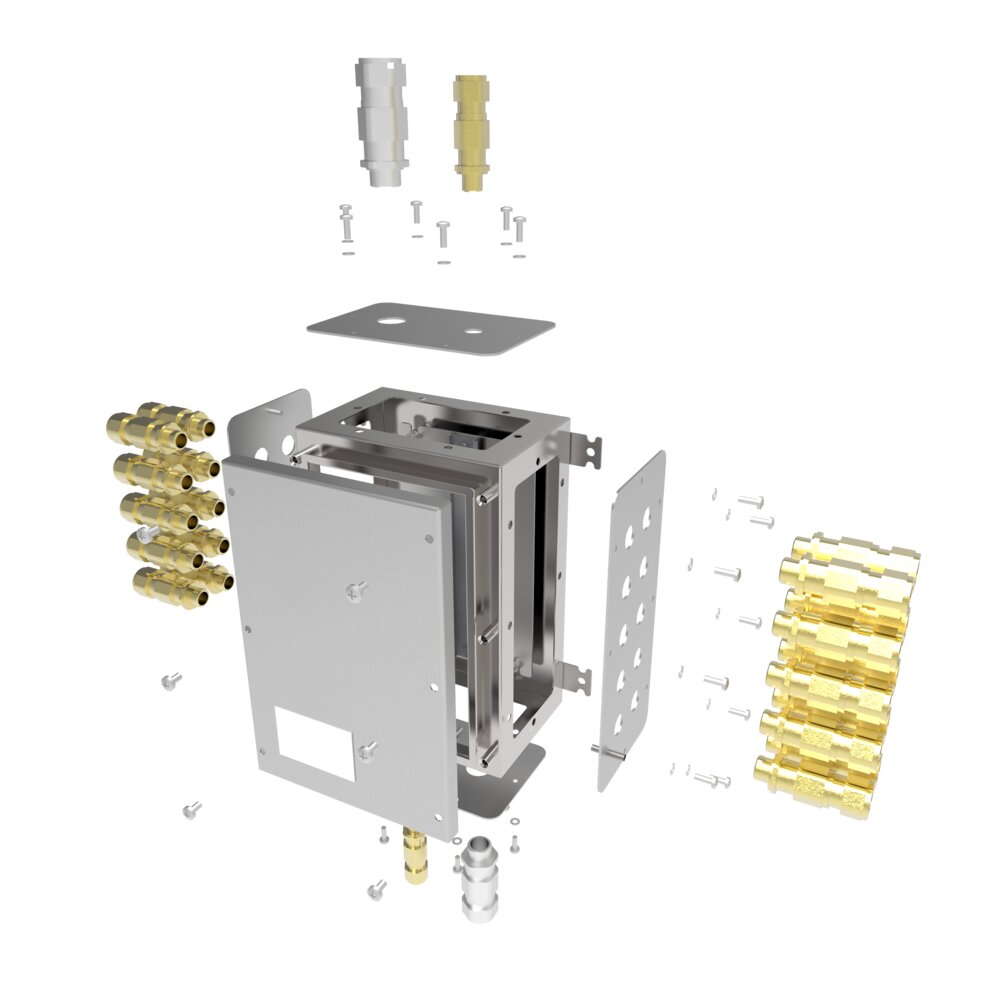

010_caja-de-terminales-con-tapa-pasacables-terbox-5_terbox_atexdelvalle.21395a9a-10
TECHNICAL DATA
Minimum DimensionsA=200-500mm   B=200-300mm   P=120-150mm
Minimum Plate DimensionsA=0-0mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth0 mm
MaterialAISI 304L/AISI 316L, Acero galvanizado pintado
FinishSatinado, Pintado
Watertight SealPolyurethane
ALTERNATIVE OPTIONS
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
There are 3 models to choose from for the enclosure dimensions.
The enclosures can be used with an increased safety protection mode.
Customized design and layout of components are offered.
The product offers the possibility of using ATEX cable glands.
It is available in stainless steel material.
Available materials: AISI 304L and AISI 316L for marine and/or corrosive environments.
Available in stock
Easily removable and expandable in the future and during assembly
Product functionality is optimized thanks to quick disassembly
Sealing of the joint assembly
It is a very versatile product compared to other types of boxes, since being personalized adapts better to the needs that are asked of it
Polished finish on all faces
Robustness, security, guaranteed reliability
A variety of dimensions are available with ample internal space that simplifies connection operations.
ATEX and IECEx components already installed inside
Suitable for both indoor and outdoor use, as well as in corrosive areas
Guaranteed anti-corrosion protection
High safety and resistance in the most aggressive explosive atmospheres thanks to the design.
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
ATEX Directive 2014/34/EU
LOM 14ATEX2082
Gas explosion protection: Ex II2G Ex demq ia/ib [ia/ib] IIA, IIB, IIC T6,T5,T4
Dust explosion protection: Ex II2D Ex tb T80°C 95°C 130°C Db
Ambient temperature: -25°C to +60°C
Protection: IP66

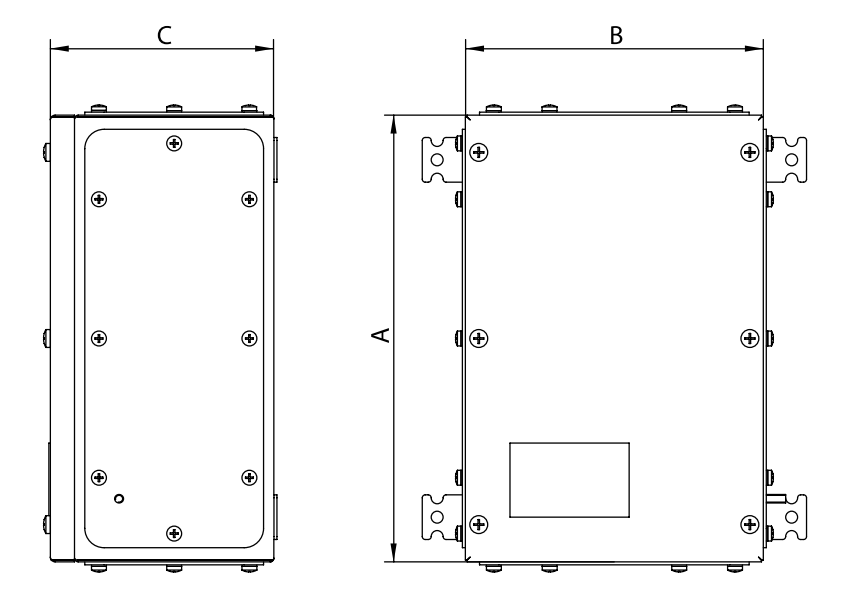

Sketch:

product sketch
