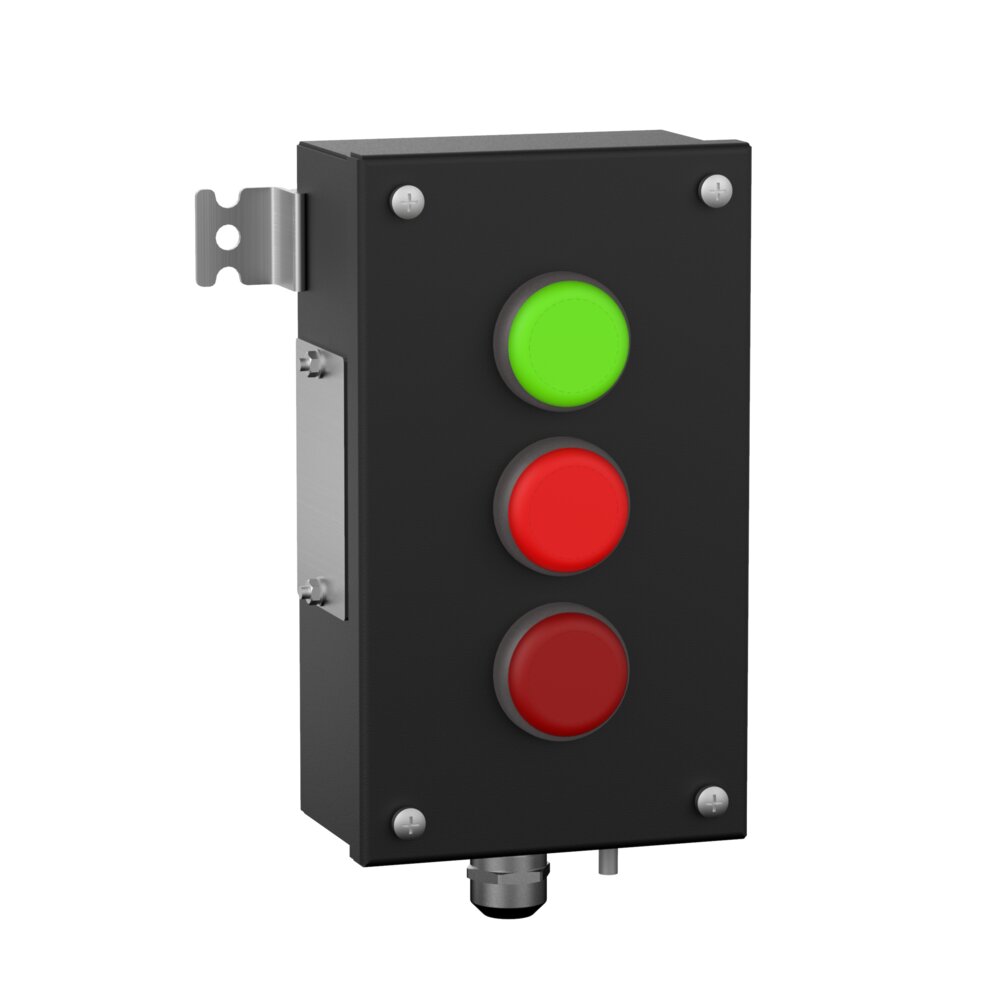

Atex Delvalle produces Ex local control stations, Ex distribution boxes and hazardous area enclosures for use in atex & IECEx areas with flammable gases and dusts. Depending on the application area, the ex control stations are designed with the type…
We have three models in the Contrex Series:
• Control stations screw closure (Contrex-Geoex Series)
• Hinged terminal & junction boxes (Contrex-Luxorex Series)
• High capacity & junction boxes (Contrex-Tribex Series)
| Minimum Dimensions | A=124-1800mm B=124-600mm P=74-300mm |
|---|---|
| Minimum Plate Dimensions | A=70-0mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Opening | 120 ° |
| Door Type | Blind door |
| Opening Type | Screwed, Giratoria |
| Closing System | Double-bit quarter-turn locks |
| Useful Depth | Mín 75mm mm |
| Material | AISI 304L/AISI 316L |
| Finish | Satin finish |
| Watertight Seal | Polyurethane |
| Working Temperature | -25ºC <Ta< +60ºC |
| Maximum Voltage | 1100V |
| Alternative Seals | Junta silicona esponjosa: -45ºC<Ta<135ºC |
|---|---|
| Alternative Thicknesses | 2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge |

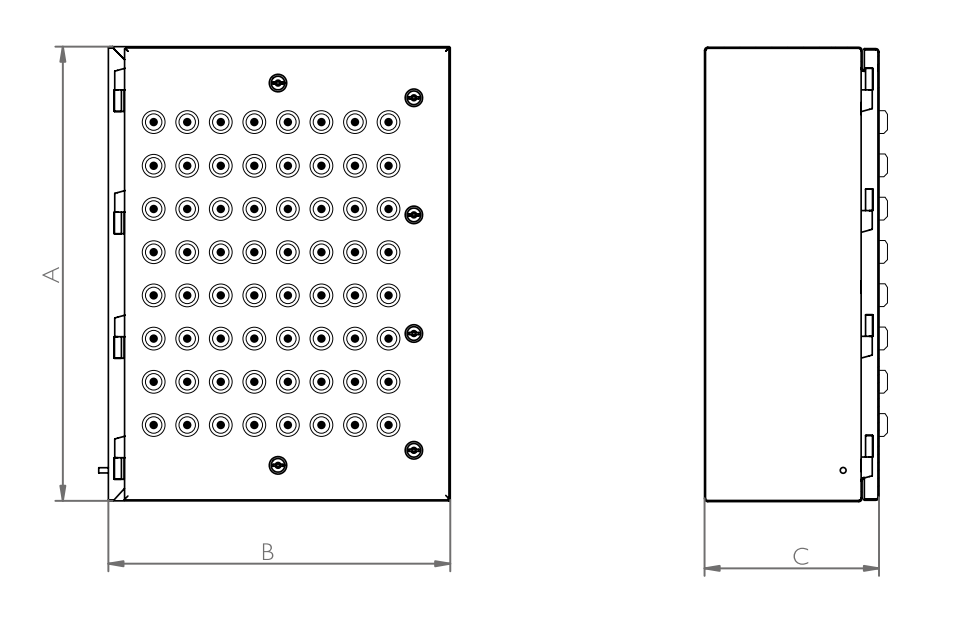

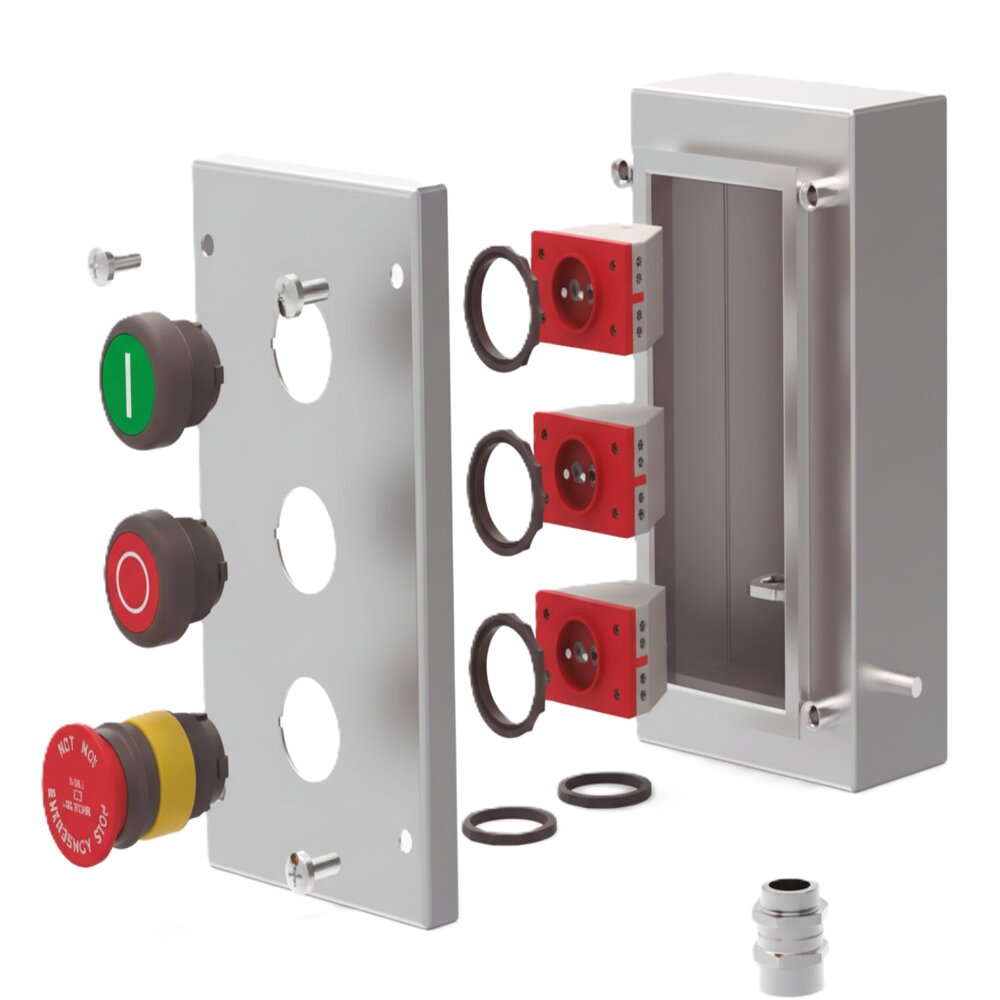

Sketch:
