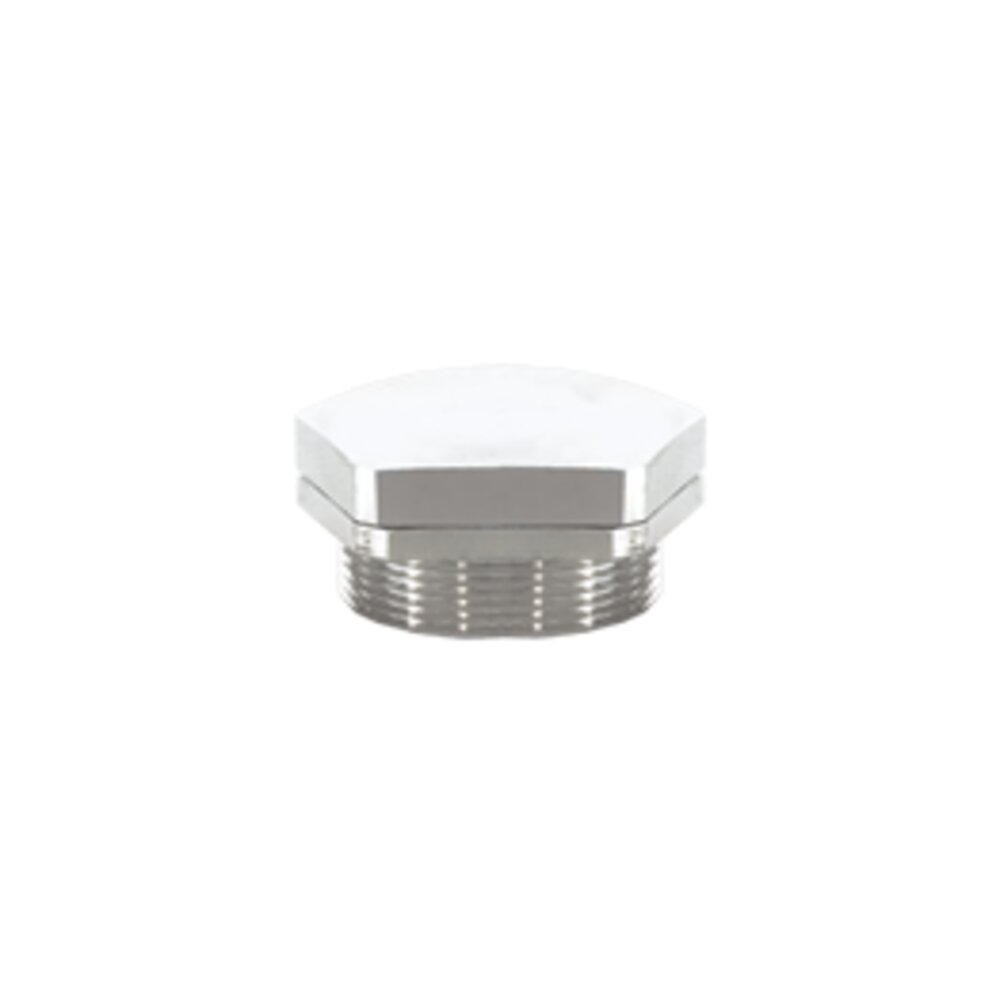

Plug Ex d/e NPT Thread IP68

Plugs Ex d/e blind metric stainless steel thread Atex IP66 – IP68. Operating temperature of -60°C to + 200°C.

The plugs are suitable for blocking the passage between two compartments and provide pressure balance between the inside and the outside. They enable to expand the box in the future: junction boxes, electrical boxes or devices that require tightness against the dust, dirt or water.

Call us now and save money!

Nickel-plated brass
Stainless steel AISI 303L
AISI 304L stainless steel
Stainless steel AISI 316L
O-ring: NBR
Sealing of openings until the current or future installation of ATEX cables
Atex Delvalle boxes and enclosures
II 2G Exd/e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d/e I Mb
EN 60079-0 2009 /60079-1 2007/ 60079-31 2009
Protection rating: EN 60529 IP66 / IP68
Application area: Zones 1, 2, 21, and 22, and Gas Group IIA, IIB, and IIC
Operating temperature: -60 °C to +200 °C

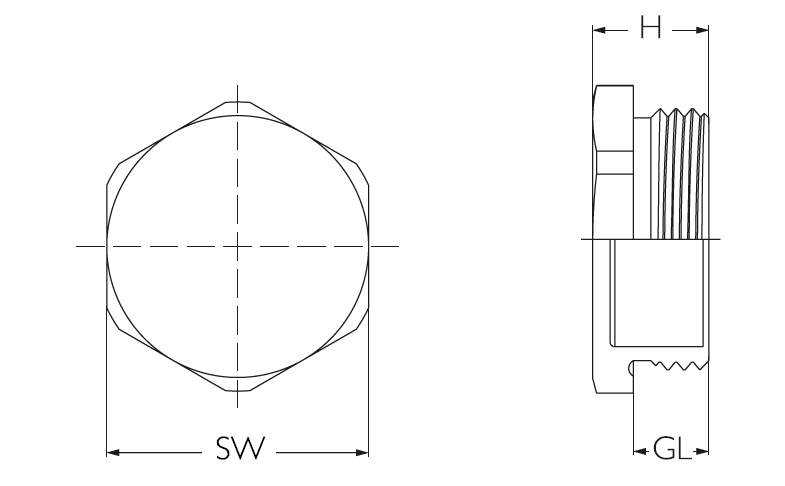

Sketch:

product sketch
