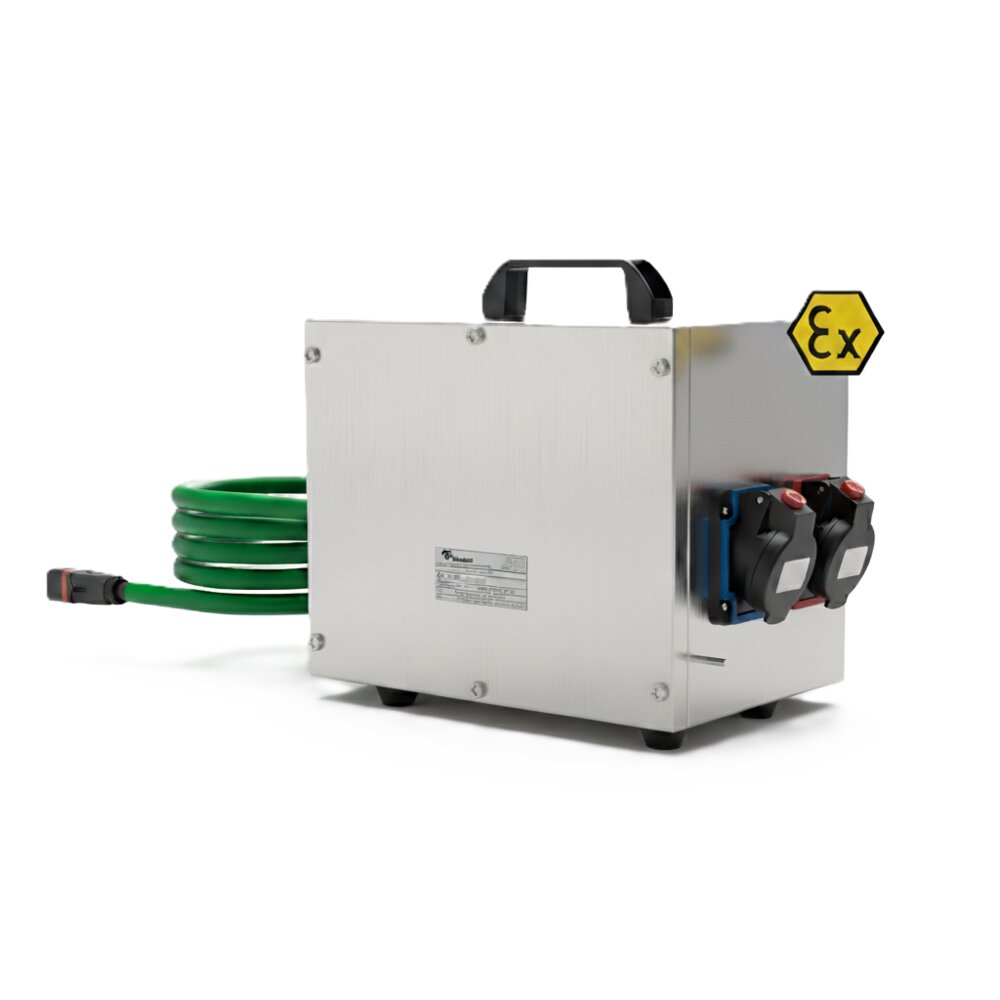

Portable Splitter Box Hazardous Areas

The Ex splitter box is designed for use in hazardous areas is  to get two or more sockets as outputs by one current input, allowing this way us to use more than two plugs from a large distance to devices.
The splitter box is a secure device, comfortable and useful, which is protected thanks to an Atex & IECEx enclosure specially designed, water-proof, antirust and made in stainless steel AISI 304L which guarantees an IP66 protection. This enclosure is CE marked to the Atex Directive for safe use in zones 1 and 2 potentially explosive gas and zones 21 and 22 dust atmospheres, making it ideal for power distribution within hazardous area confined spaces.
To make easier the movement of this enclosure it has a handle on the cover, to move it to the right place.

The cable can be chosen with a longer length by contacting us.
There are three current options: 20A, 30A, or 63A.
The number of poles and their configuration can be selected.
A plug with different characteristics than those listed in the Reference table can be chosen.
As it is a portable device, it allows for the use of machinery or the performance of maintenance tasks located far from a power outlet.
Thanks to this equipment, the possibilities for connecting devices to the box are multiplied, as several devices can be connected to the socket outlets at the same time.
Maintenance tasks are easier with this plug, as they can be performed at a distance from the main power outlet.
The socket outlet features an integrated breaking capacity thanks to a button that performs a quick power cut-off.
Equipment with easy mobility as it weighs only 6 kg, light enough to be portable yet remarkably robust.
The enclosure can be manufactured in AISI 316L stainless steel for corrosive environments or for outdoor, marine, and/or highly corrosive use.
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX2082
IECEx LOM 18.0001X
Ambient temperature: -20°C to 40°C
Protection: IP66

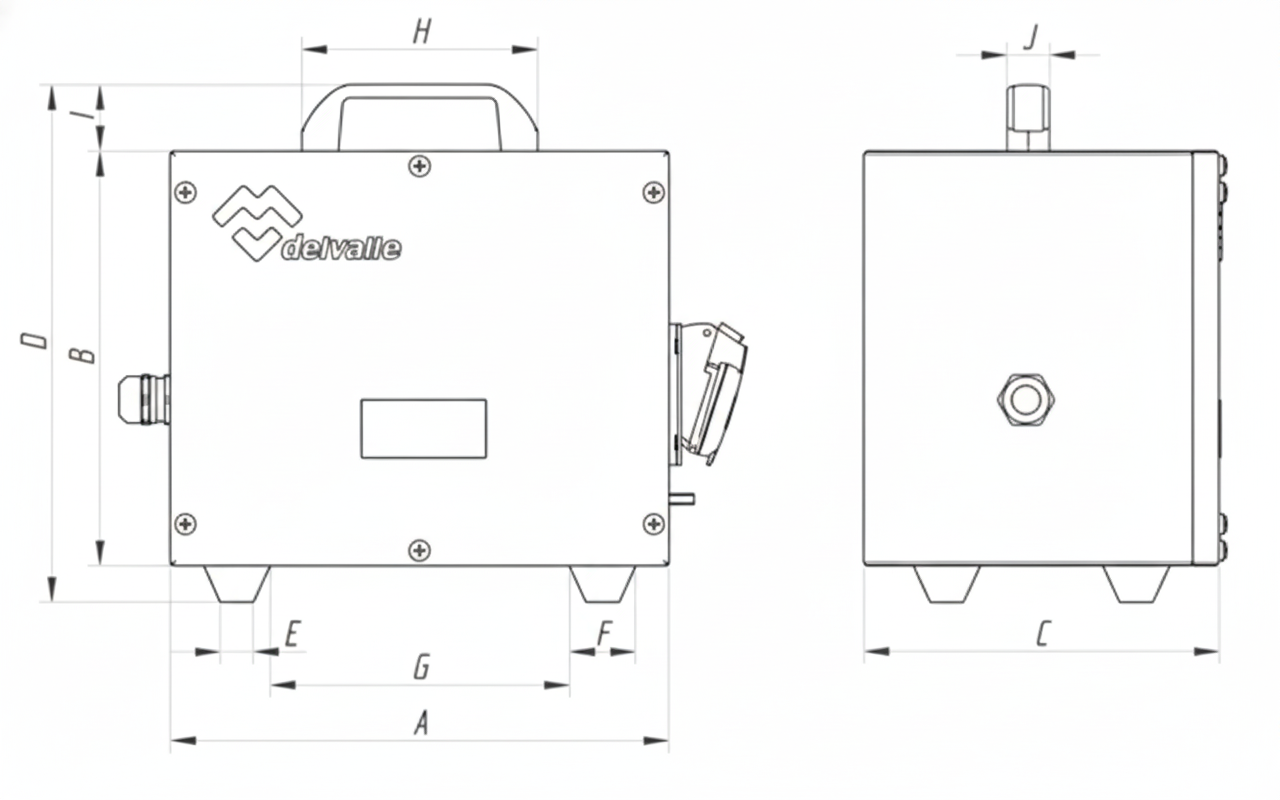

Sketch:
