Atex Junction Box

The Geoex Series increased safety Atex junction boxes offer superior protection in hazardous environments, with an IP66 rating for maximum waterproofing and durability.

Made of stainless steel AISI 304L or 316L, they are designed for zones 1, 2, 21, and 22, standing out for their certified resistance and safety.

These terminal boxes are also IECEx certified, ensuring compliance with international standards across various markets. This facilitates export and reduces the need for additional certifications, providing a reliable, cost-effective solution ready for safe installation in global industrial environments.

Technical Downloads Product

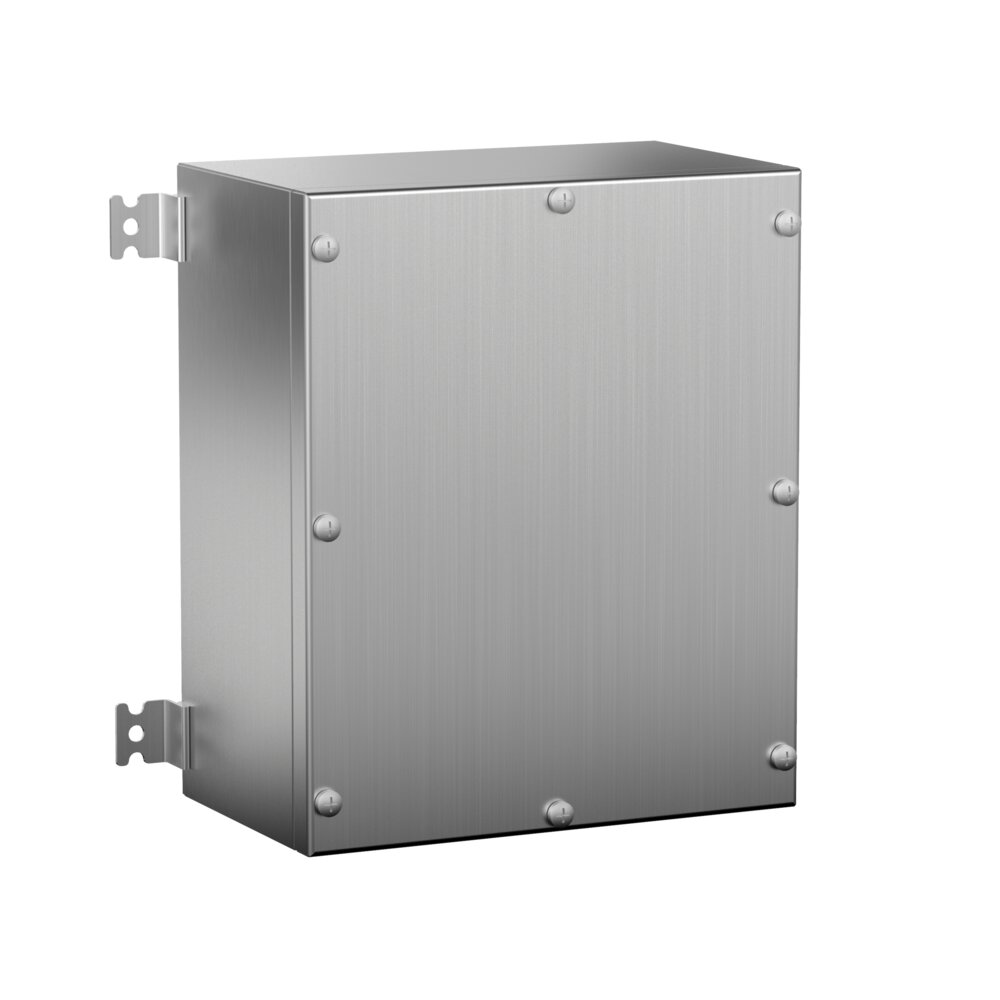

001_caja-de-terminales-y-bornes-atex-ip67-1_terbox_atexdelvalle.1305156c-22

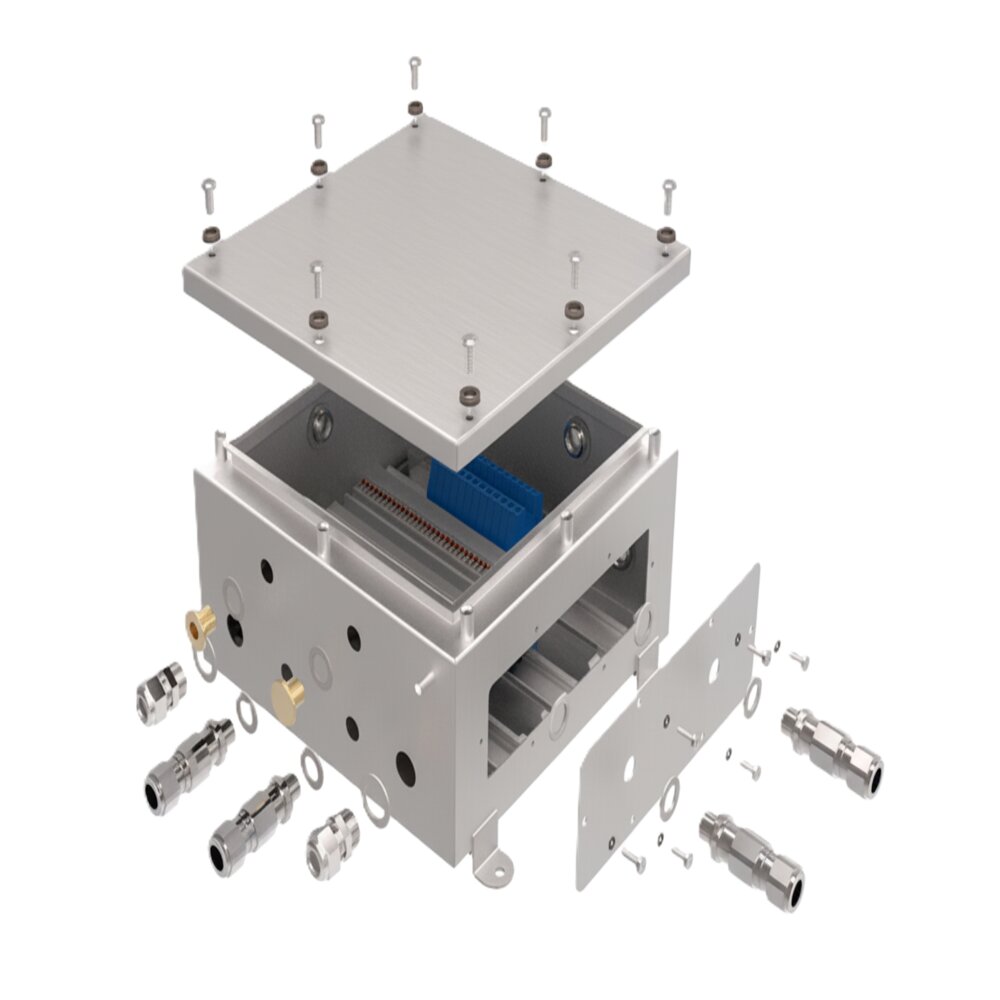

002_caja-de-conexic3b3n-atex-1_geoex_atexdelvalle.548535e8-4

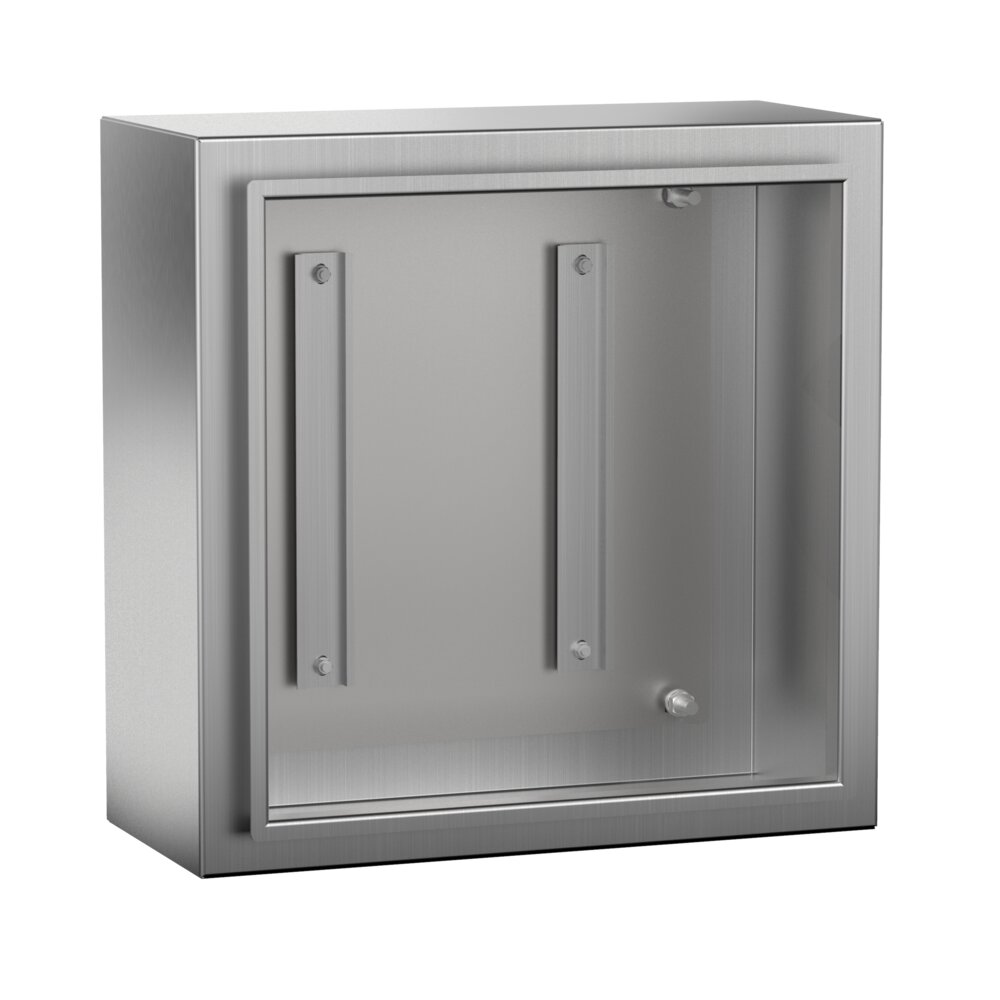

001_caja-de-terminales-inox-2_geo-ip65_delvallebox.3d7a6bc2-4

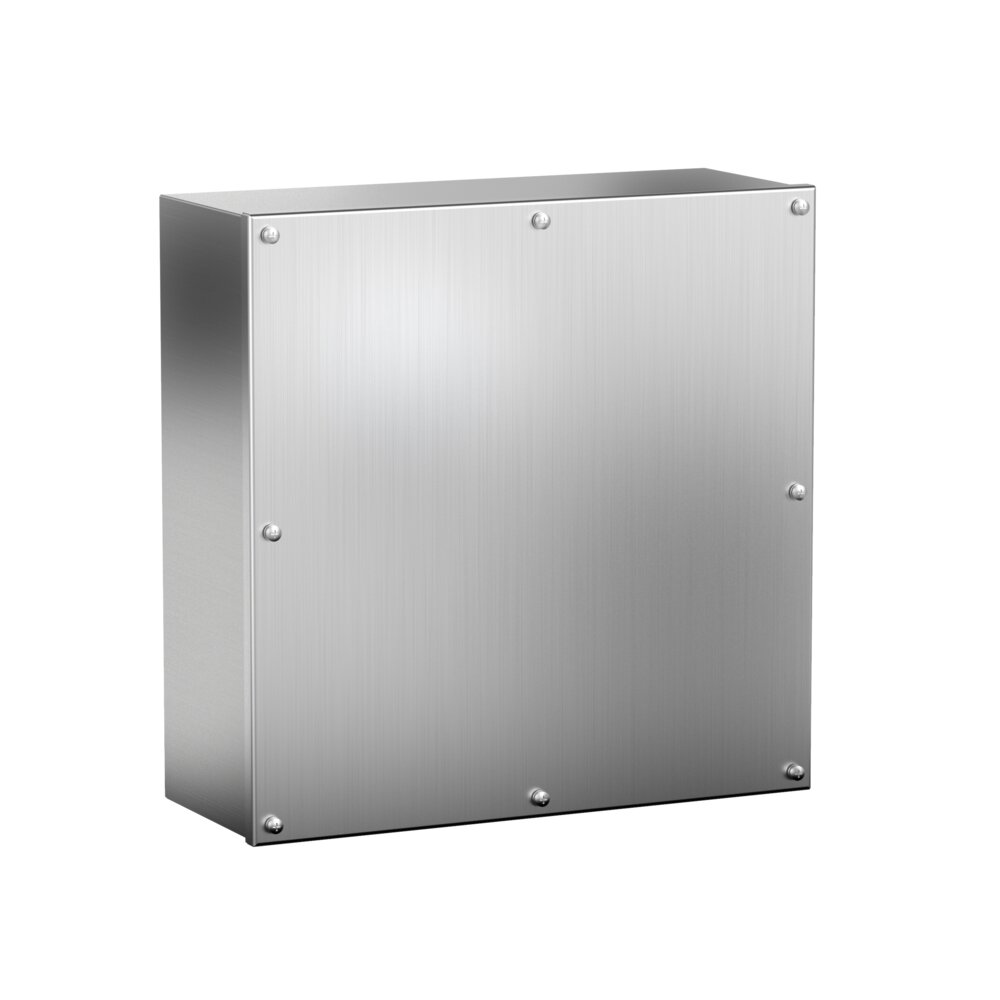

001_caja-de-terminales-inox-1_geo-ip65_delvallebox.d809a308-4
TECHNICAL DATA
Minimum DimensionsA=90-1000mm   B=90-1000mm   P=80-1000mm
Minimum Plate DimensionsA=110-944mm
Minimum Plate DimensionsB=70-947mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth55-981,4 mm
MaterialAISI 304L/AISI 316L
FinishSatin finish
Plate MaterialGalvanized
Watertight SealPolyurethane
Working Temperature-25ºC<Ta<80ºC
ALTERNATIVE OPTIONS
Alternative MaterialsGalvanized
Alternative FinishesPainted RAL 7035
Alternative SealsJunta silicona esponjosa: -45ºC<Ta<135ºC, Junta silicona inyectada: -45ºC<Ta<155ºC
Machinable AreaPuerta: 48x48 - 873x873, Lateral: 70x30 - 970x953,8
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Available with IP67 or IP68 ingress protection
One or two rear doors
Wall mounting brackets
Painted galvanized steel material
Large interior space that simplifies connection operations.
Guaranteed anti-corrosion protection
High security and resistance in the most aggressive environments
Monoblock construction that achieves perfect watertightness and impact resistance
Mass insert that allows external connection
AISI 316L stainless steel screws
Hinges to secure the lid optional
Dual access option (front and back doors)
Hinges option to hold the lid
IECEX and Atex certifications
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
ATEX Directive 2014/34/EU
LOM 14ATEX3028U
II 2GD Ex eb IIC Gb
Ex tb IIIC Db
Ambient temperature: -25°C to +60°C
Sponge silicone gasket: -45°C
Injected silicone seal: -45°C
Protection: IP66

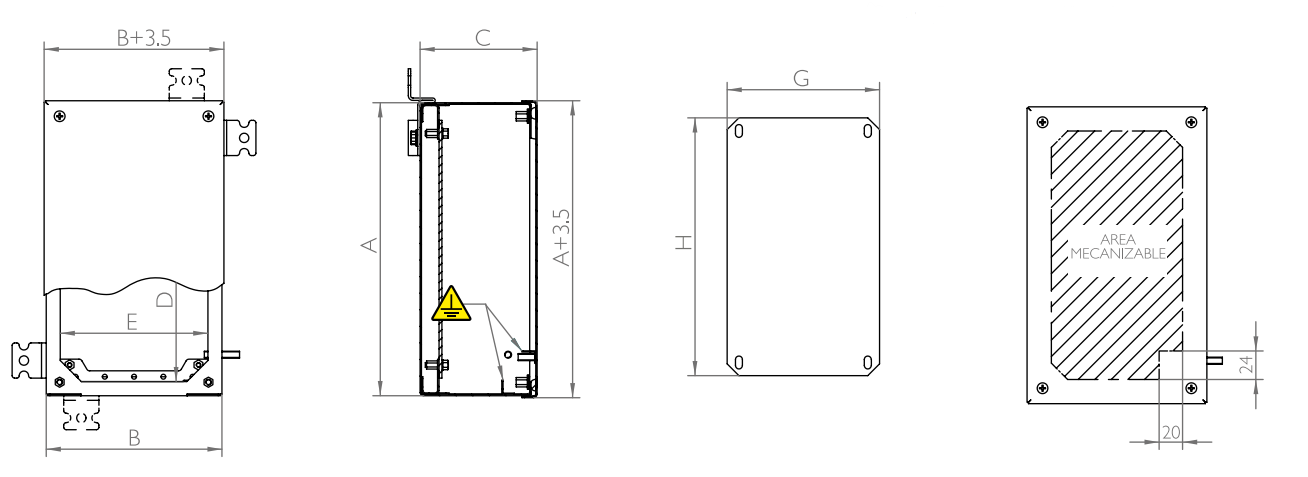

Sketch:

product sketch

Accessories:

Furud Atex LED Spotlight

Cable Glands Atex Increased Security IP68

Ex Air Vent Plug Breather and Drainage Valves IP66

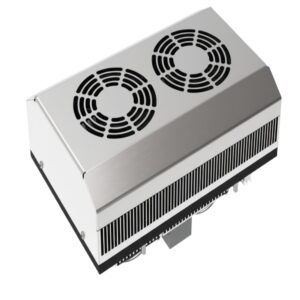

Atex Thermoelectric Cooler IP67
