Home > Products > Stainless steel Ex E Junction Boxes IP66

Stainless steel Ex E Junction Boxes IP66

Stainless steel Ex E terminal and junction boxes "Terbox Series", has been developed for installations in hazardous areas 1, 2, 21 and 22 and corrosion areas, for installation of signal and power distribution networks in hazardous areas.

We have diferents door types; screw closure, hinged enclosures,  and stand large capacity enclosures.They are certified according to the latest Atex and other international standards, types of explosion protection include Ex e, Ex ia and Ex tb.

TURNKEY PROJECTS. Options available include sizes, colours, types of connection among others.

Technical Downloads Product

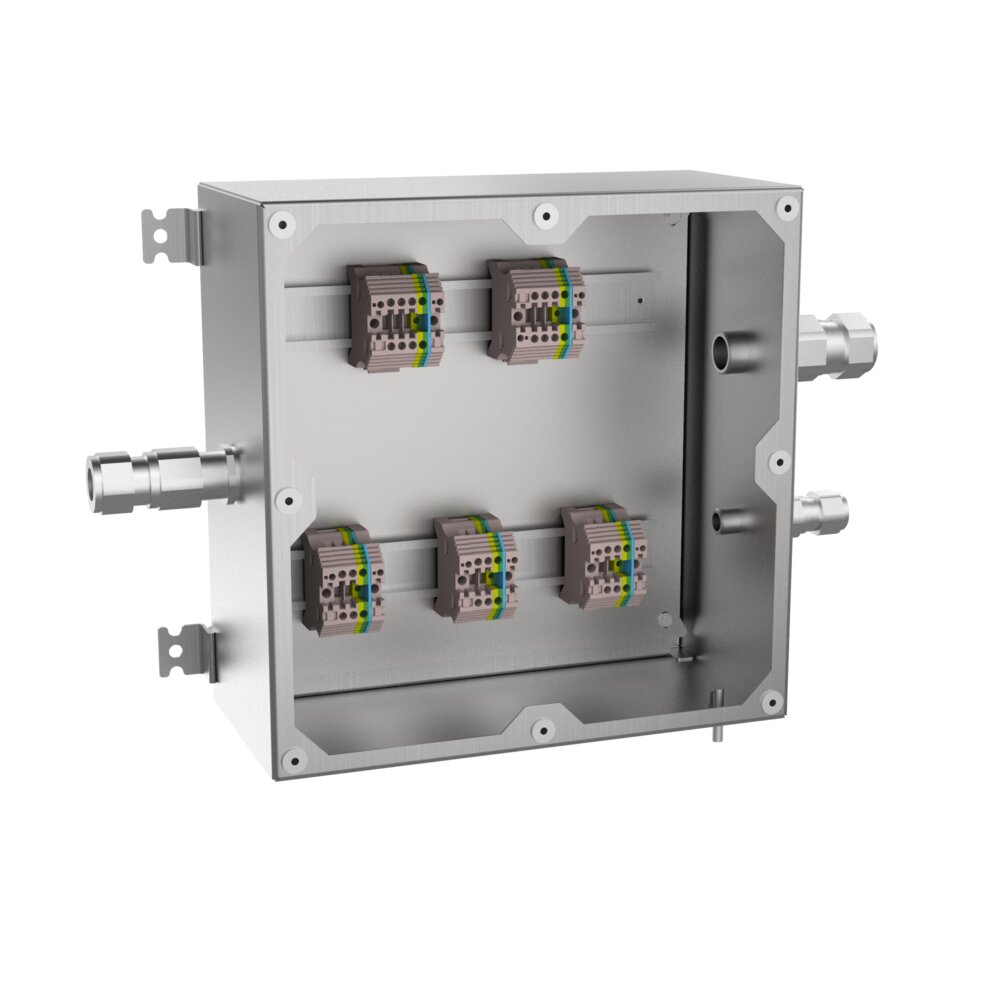

001_caja-de-terminales-terbox-inoxidable-ip66-1_terbox_atexdelvalle.a81d5b8f-4

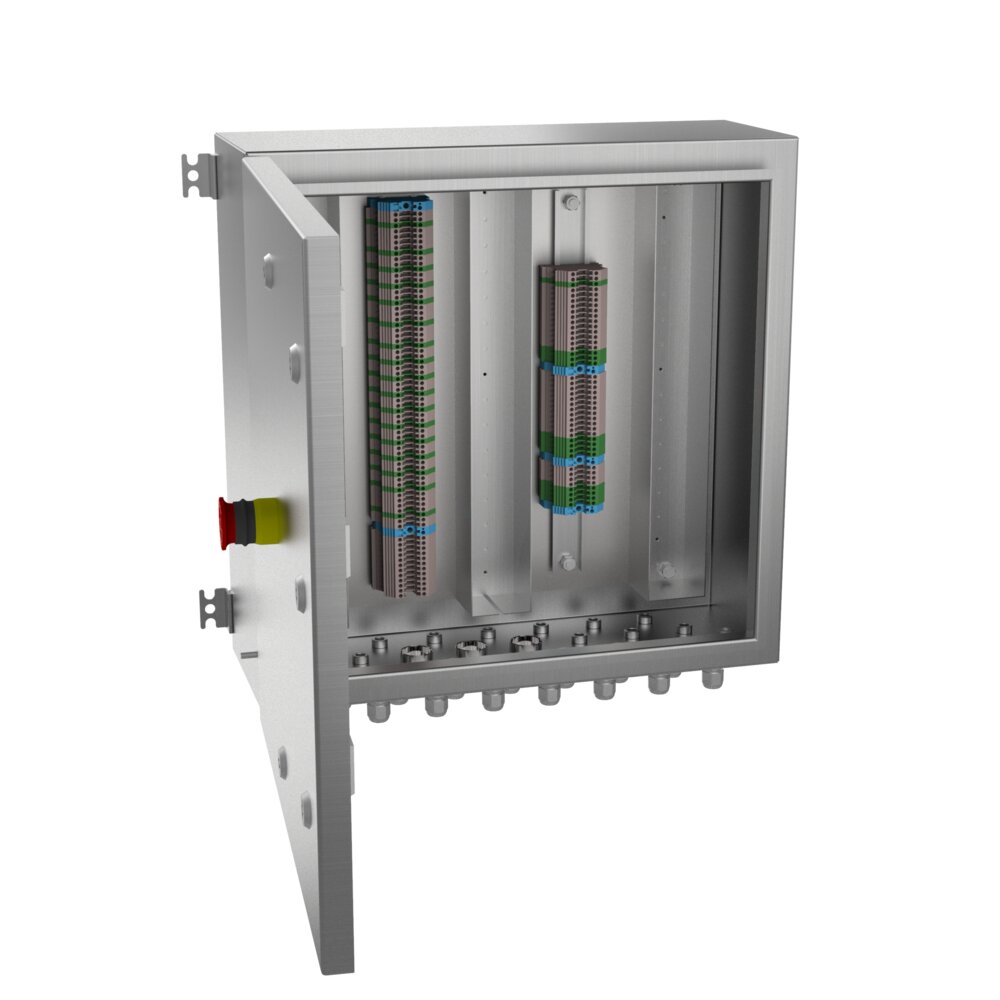

001_caja-de-terminales-terbox-inoxidable-ip66-2_terbox_atexdelvalle.50d3107c-4
TECHNICAL DATA
Minimum DimensionsA=110-600mm   B=110-600mm   P=90-170mm
Minimum Plate DimensionsA=0-0mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth0 mm
MaterialAISI 304L/AISI 316L
FinishSatin finish
Plate MaterialGalvanized
Watertight SealPolyurethane
Working TemperatureTemperatura de trabajo (ambiente): -25° a ≤60°C
ALTERNATIVE OPTIONS
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
We have boxes with screw closures
The possibilities for options go beyond sizes, colors, and connection types.
We have absolute adaptability and flexibility.
Customize your enclosure with cable glands, cable entry plates, and multiple actuators
Available with IP67 or IP68 ingress protection
Manufactured in AISI 304L or AISI 316L stainless steel
Cable entry plate option
Hinge option
Different mounting options
Certified Ex as a finished product, they allow us to develop complete projects.
Custom assembly.
Significant savings in costs and time
Access to the interior is facilitated thanks to the fixing of the cover with easy-to-place screws.
Resistant to seawater.
M6 metric external earth connection.
Wide ambient temperature range.
Thickness 1.5mm (depending on enclosures).
With cable gland plate and hinges option.
Different mounting options.
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX2082
LOM 17ATEX1012
IECEx LOM 18.0001X
Protection: Ex db IIC T5 Gb, I M2 Ex db I Mb, and Ex tb IIIC T100 °C Db IP66
Dust explosion protection: Ex II2D Ex tb T80°C 95°C 130°C Db
Ambient temperature: -25°C to +60°C
Protection: IP66

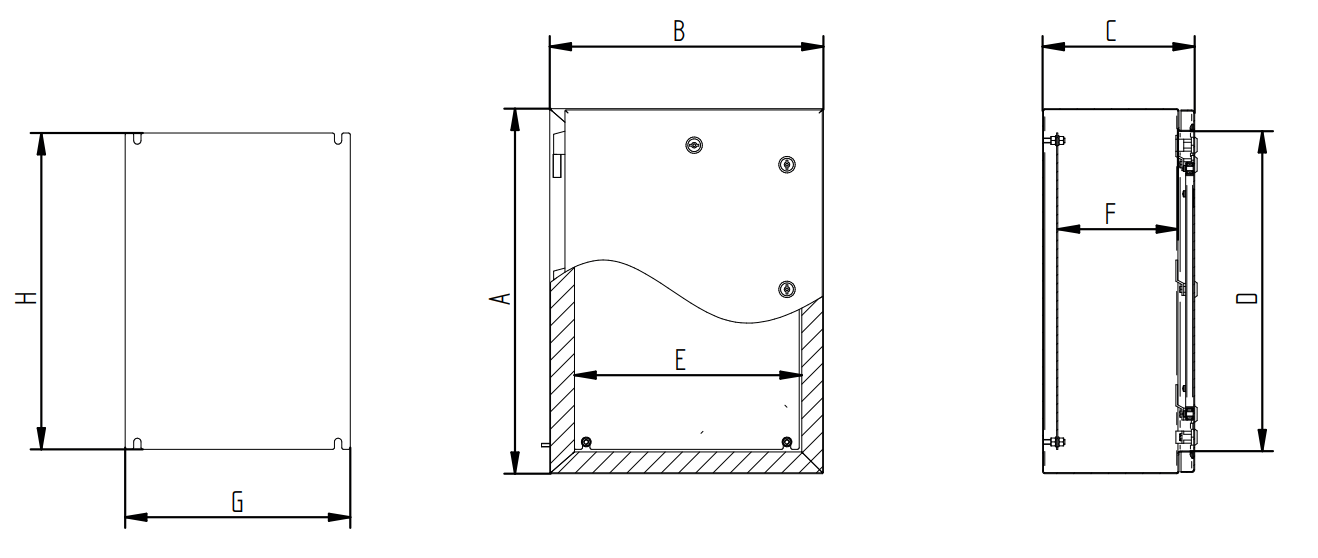

Sketch:

product sketch

Accessories:

Plug Polyamide Ex e IP66

Reducer Ex d/e IP66 – IP68

Double Compression Cable Glands Armoured Atex Ex d/e IP68

Plug Ex d/e NPT Thread IP68
