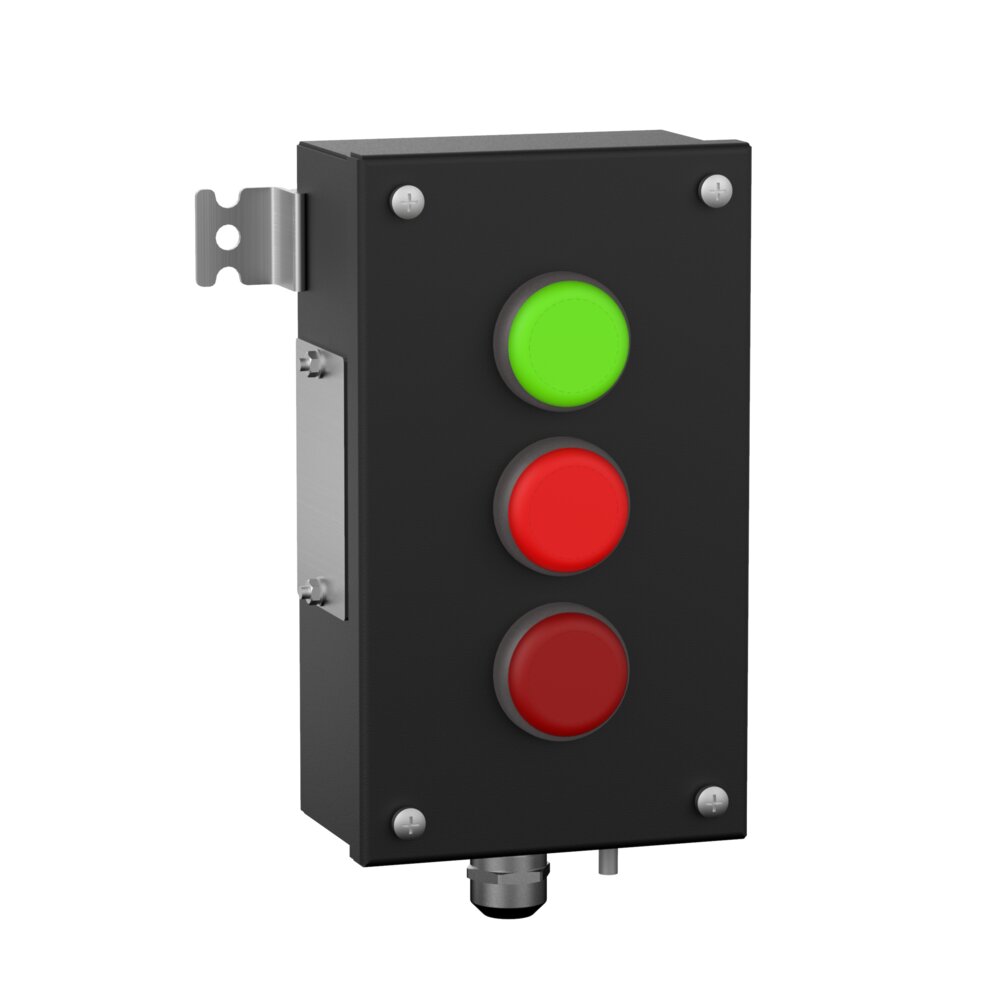

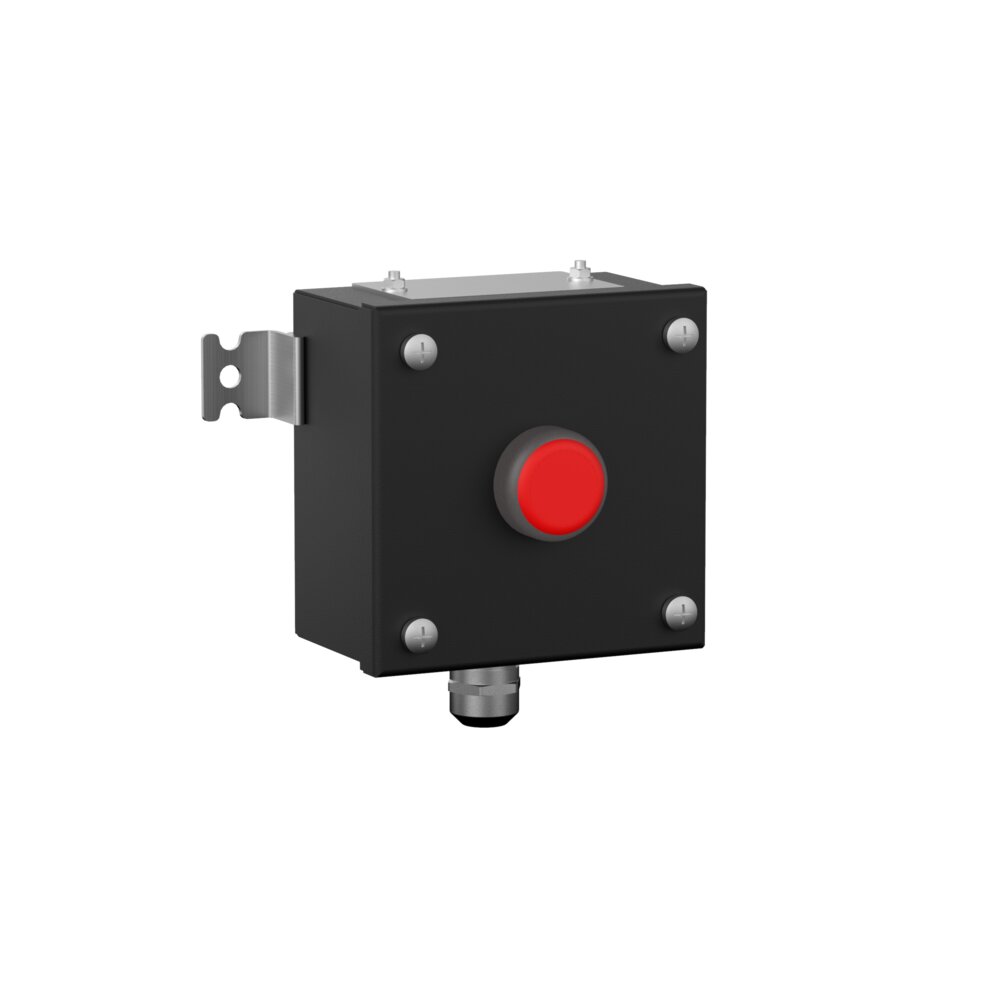

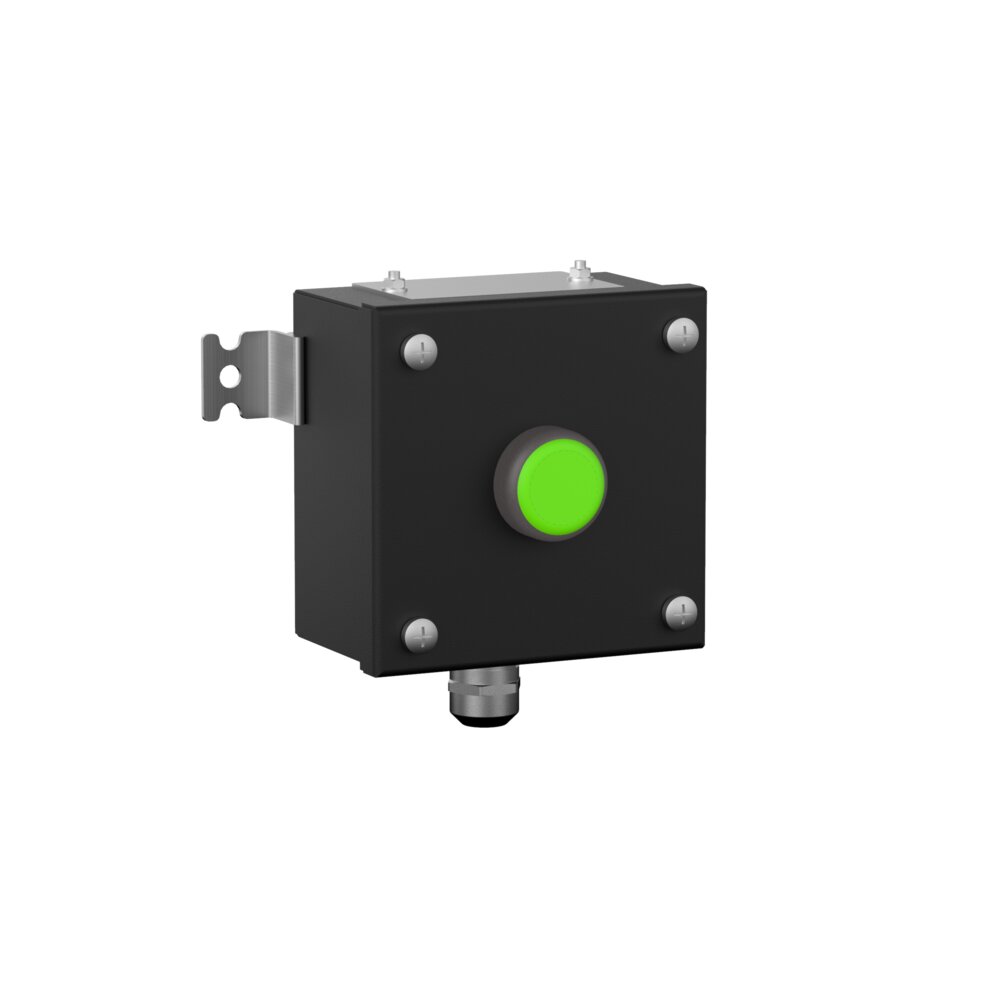

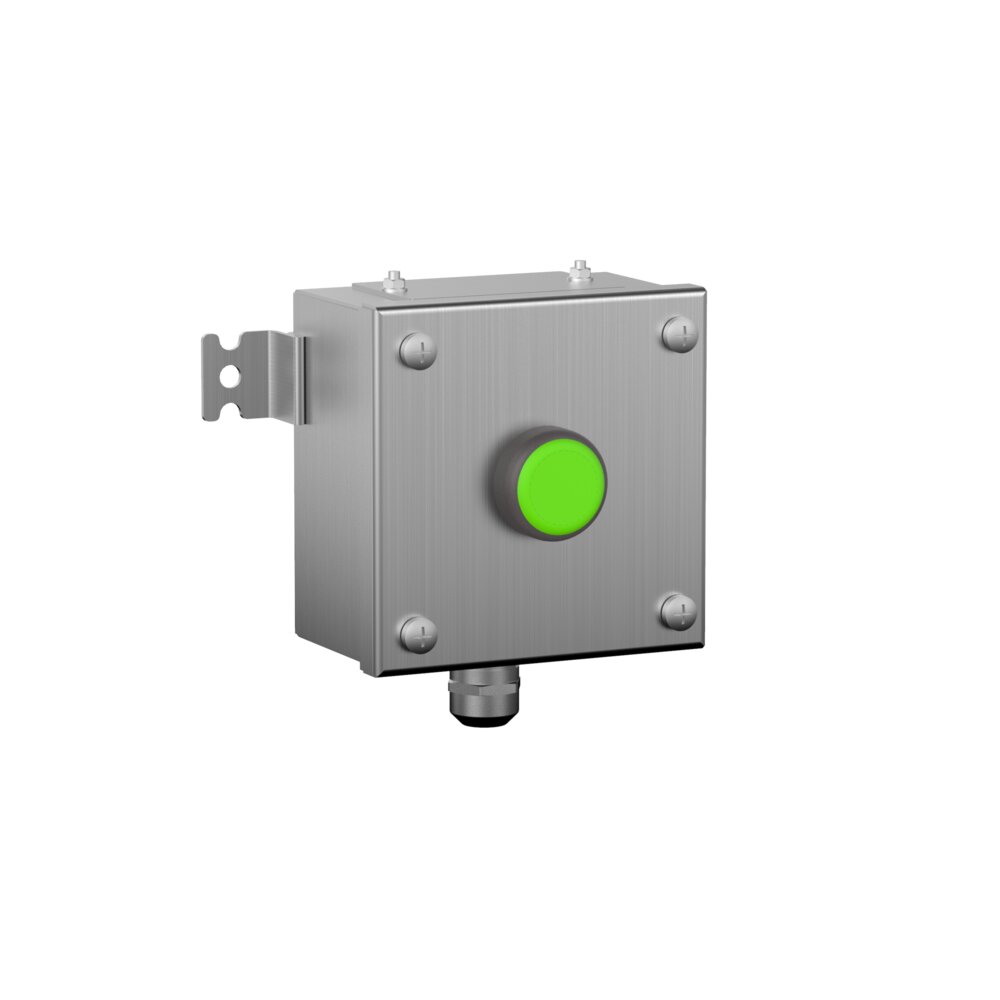

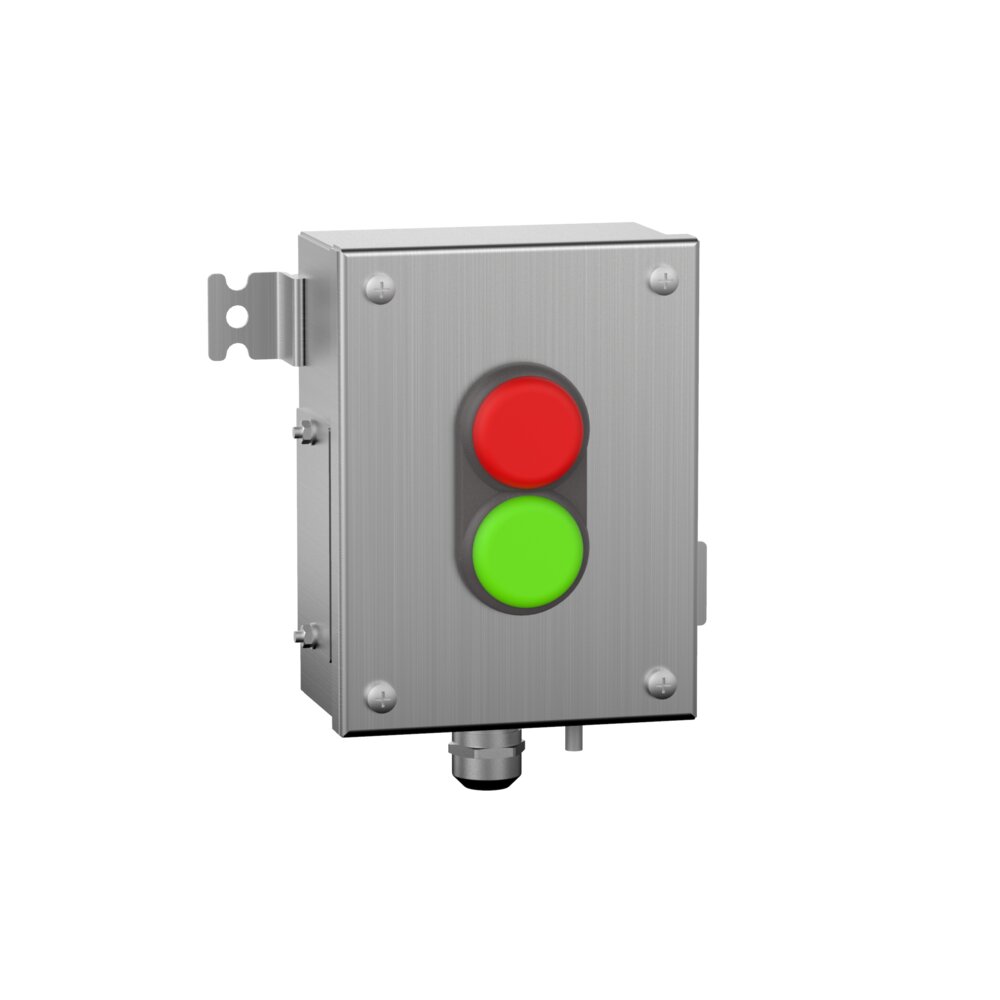

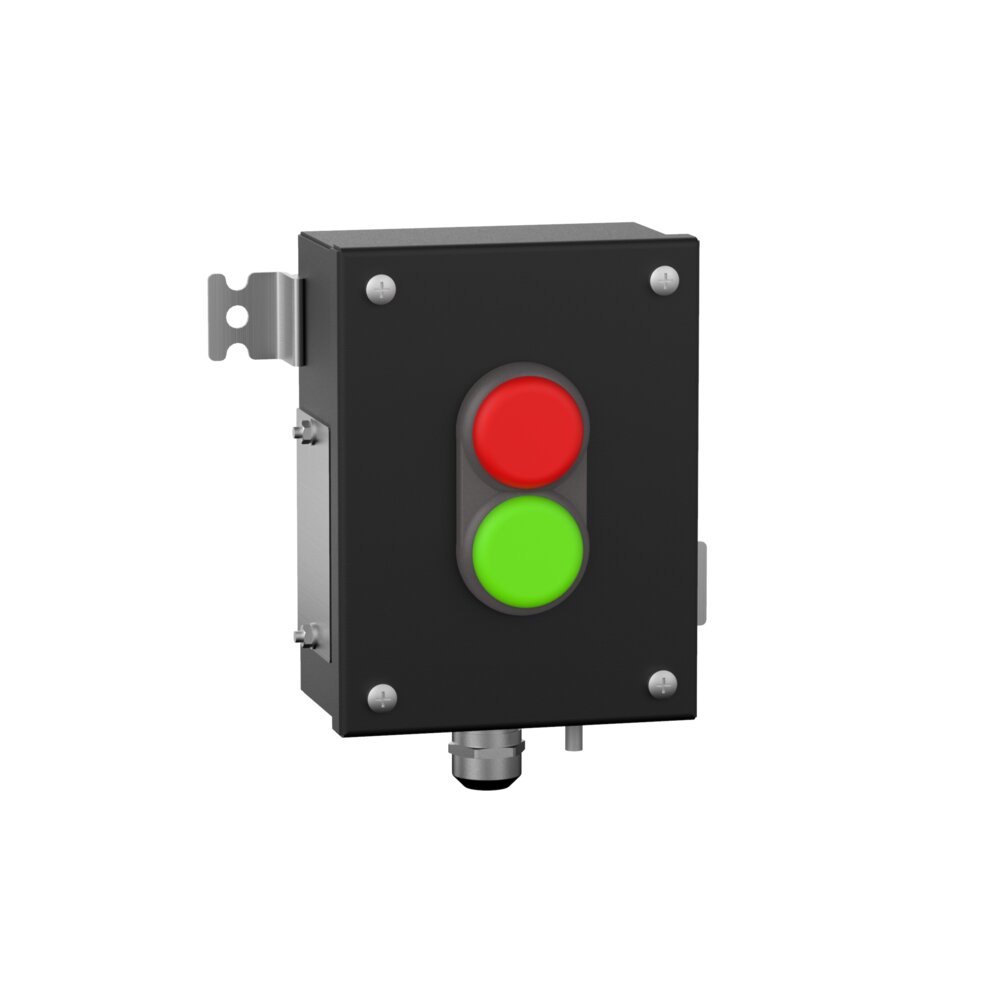

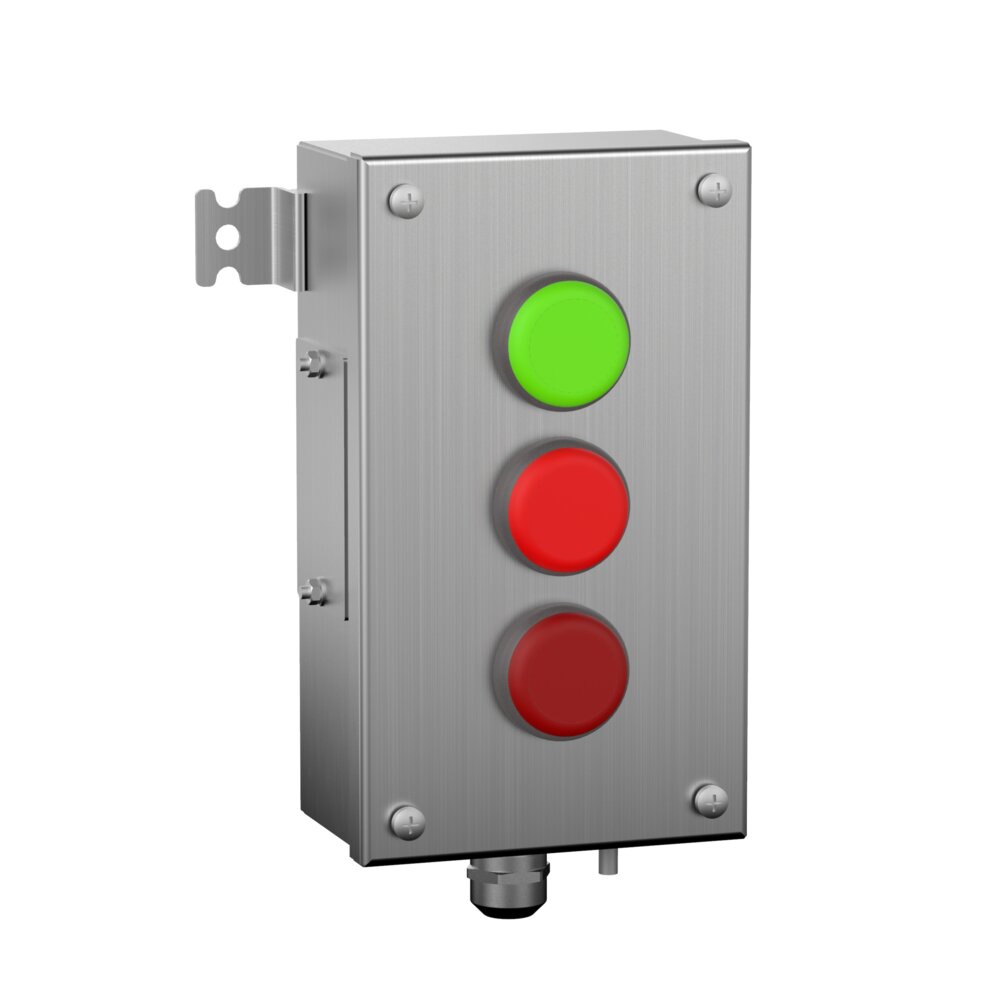

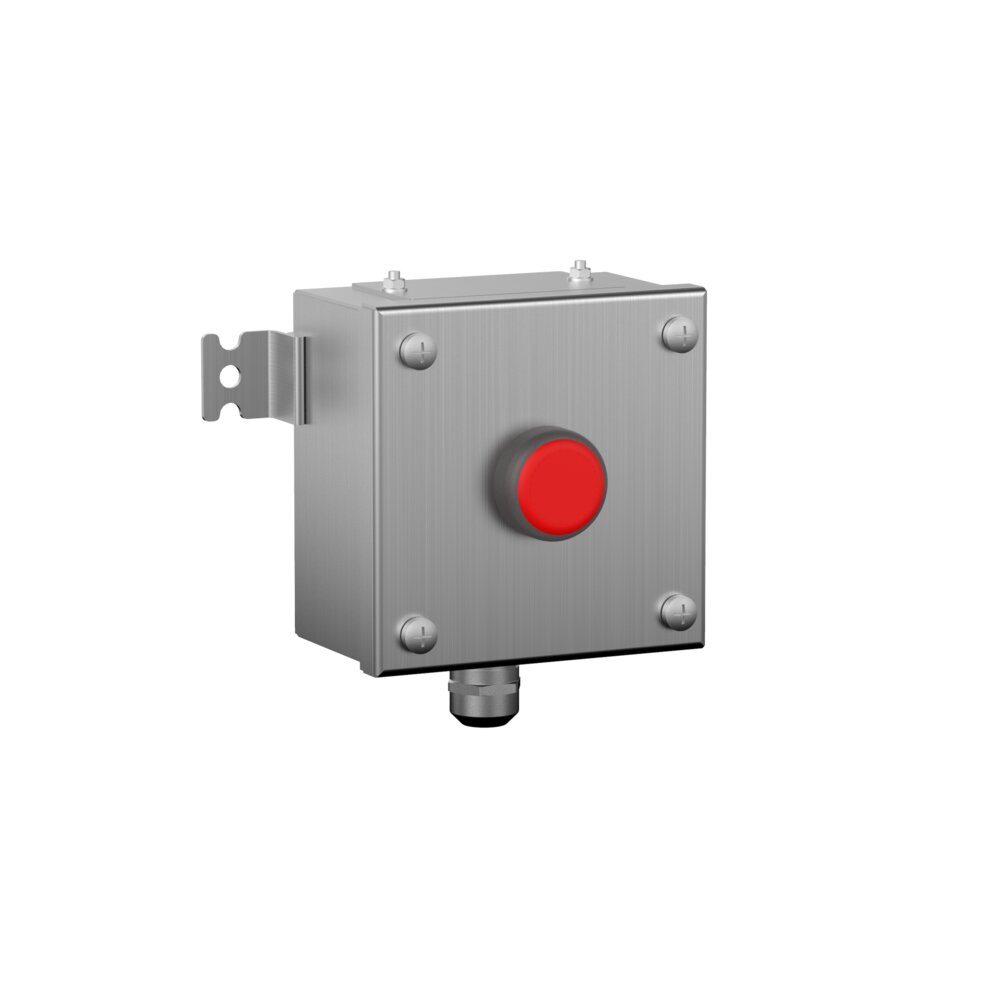

Control devices and control units are assembled clearly in control stations Series Contrex. The enclosure is available in brush finished stainless steel. The product range includes a wide range of enclosure sizes with different heights.
Stock in stainless steel and GRP Polyester control stations.
| Minimum Dimensions | A=120-1800mm B=120-600mm P=90-300mm |
|---|---|
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed, Giratoria |
| Closing System | Double-bit quarter-turn locks |
| Useful Depth | Mín 75mm mm |
| Material | AISI 304L/AISI 316L, Acero galvanizado pintado |
| Finish | Satinado, Pintado |
| Watertight Seal | Polyurethane |
| Working Temperature | -25°C a +60°C |
| Maximum Voltage | 1100V |
| Alternative Seals | Junta silicona esponjosa: -45ºC<Ta<135ºC |
|---|---|
| Alternative Thicknesses | 2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge |

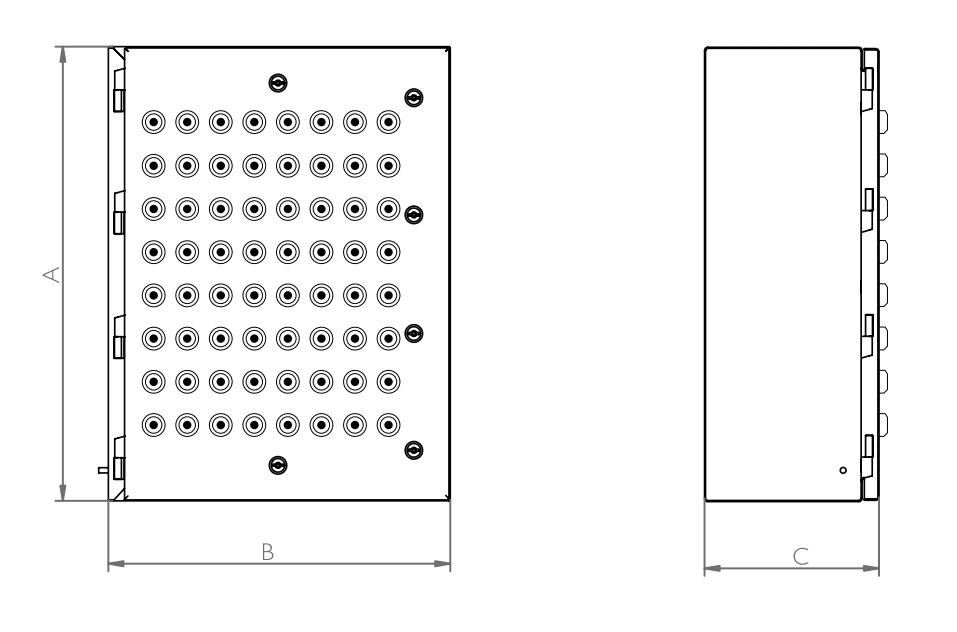

Sketch:
