Ex Atex 19″ Rack

The increased-safety IP66 stainless steel Ex Rack 19" enclosure Luxorex and Tibex stands out for its robustness and a very spacious interior.

For use in indoor and outdoor corrosive environments that require a water-tight seal, this enclosure's seamless foam-in-place gasket and screw-down clamps provide a secure seal against contaminants and they are certified to be used at hazardous and Atex zones 1, 2, 21 & 22, it is greatly valued for its high security and resistance in the harshest environment.

The rack 19" made of stainless steel AISI 304L or AISI 316L and with a polished glossy surface finish.

Technical Downloads Product

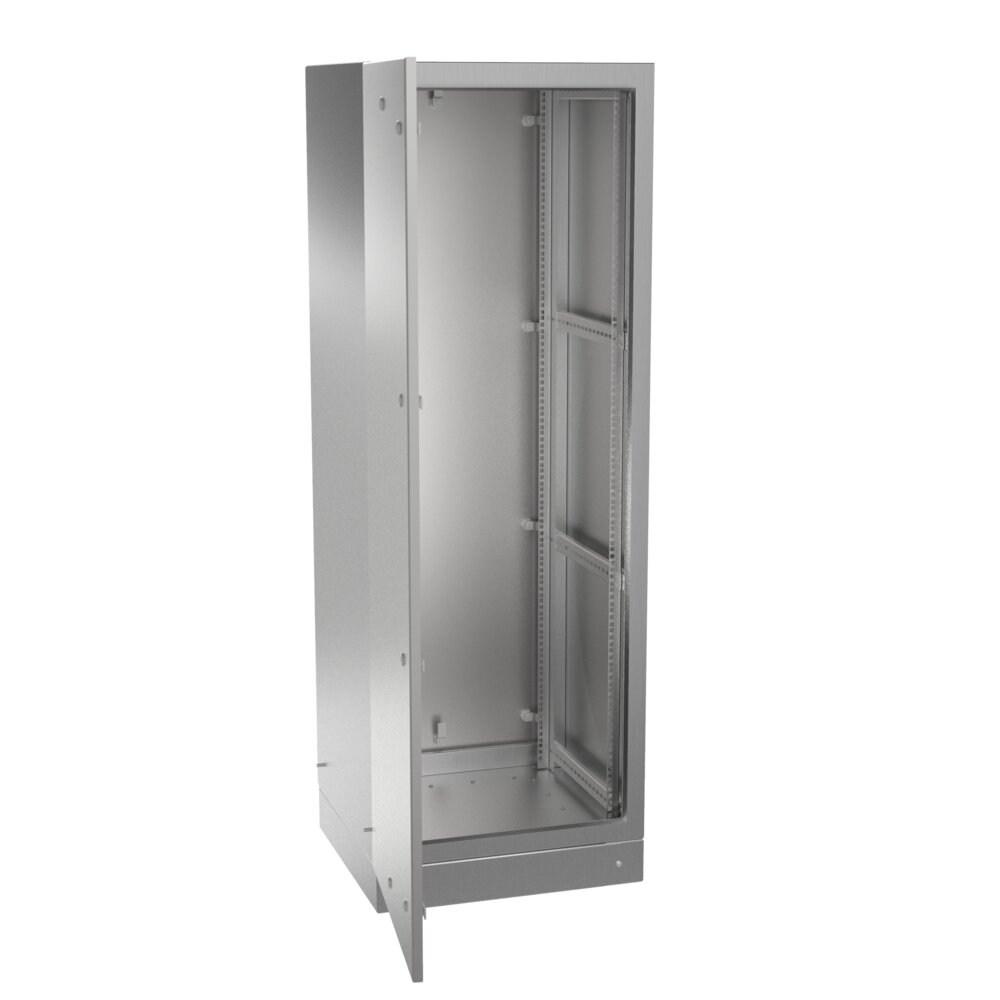

002_armarios-rack-19-atex_atexdelvalle.b57defe7-4
TECHNICAL DATA
Minimum DimensionsA=500-2000mm   B=600-600mm   P=200-1000mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeGiratoria
Closing SystemDouble-bit quarter-turn locks
Useful Depth126-926 mm
MaterialAISI 304L/AISI 316L
FinishSatin finish
Watertight SealPolyurethane
Working Temperature-25° < Ta ≤ 60°C
ALTERNATIVE OPTIONS
Alternative DoorVentana de control/Observación ATEX
Machinable AreaCon tapa pasacables: 56x56-566x566
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Double access option (front and rear doors)
Double door
Plinth or leg mounting
An access door (front)
A dual access door (front and rear)
Dual access door (closing doors, central post)
Two double-access doors (closing doors, central post)
Rack system 19" with ATEX & IECEx certificate
Mounted 19" rack racks can be moved deep
Manufactured in AISI 304L or AISI 316L stainless steel with a satin polished surface finish
They are intended for use in Zones 1, 2, 21, and 22, and for the installation of Ex components and terminals.
Large interior space that simplifies connection operations.
Guaranteed anti-corrosion protection
High security and resistance in the most aggressive environments
Monoblock construction that achieves perfect watertightness and impact resistance
Body and pre-assembled door
Mass insert that allows external connection
Double-bit quarter-turn locks and hinges manufactured in stainless steel. Other locks available upon request.
Possible accessories: lifting eye bolts, plinth, perforated mounting plates, gland plates, DIN rail, etc.
Polyurethane gasket resistant from -25° to ≤ 60°C
Specially designed for sectors requiring additional security, our cabinets and enclosures comply with the most rigorous standards to protect critical equipment.
Oil & Gas
Offshore & Open Sea
Industry & Automation
Chemical & Refineries
Pharmaceutical
Maritime and Port
Fieldstations
Food and Beverage
Paper industry
Air transport
Nuclear and renewables
II2G Ex e IIC Gb y II2D Ex tb IIIC Db IP66 de acuerdo con la directiva 94/9/CE y estandar EN 60079-0, EN 60079-7, EN 60079-31
Degree of protection IP66 according to EN 60529
Grado de resistencia contra impacto IK10 según Norma IEC 62262
LOM 14ATEX3026U Certificate (Luxorex). LOM 14ATEX3027U Certificate (Tribex).
UL NEMA 4X, 12, 3R and 1 Certificate available upon request. File No. E342220
Polyurethane gasket deposited on door -25°C to ≤60°C.
Plugs, drill holes, and hinges -25° to ≤60°C.

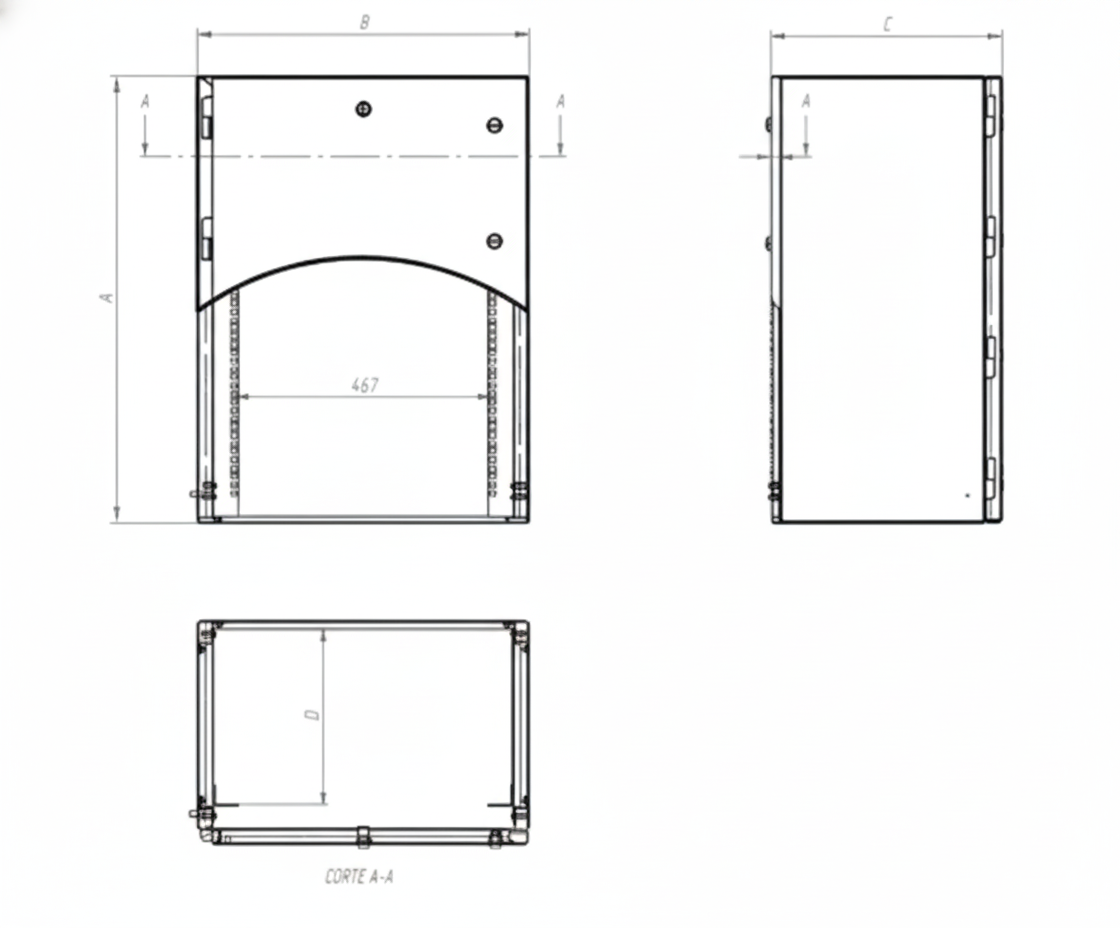

Sketch:
