Atex Junction Box IP68

The increased-safety Geoex Series IP68 junction box is made in either AISI 304L or 316L stainless steel.
Certified to be used in zones 1, 2, 21 and 22, it is greatly valued for its high security and resistance even in the harshest environments.
We can make it to any dimension required by our customers, up to a maximum size of  1000 x 1000 x 1000 mm.

TURNKEY PROJECTS: Options available include sizes, colours, types of connection among others. As we have a close relationship with the main Atex & IECEx certified companies in our field, we achieve total adaptability and flexibility being manufacturers.

TECHNICAL DATA
Minimum DimensionsA=90-1000mm   B=90-1000mm   P=80-1000mm
Minimum Plate DimensionsA=44-944mm
Minimum Plate DimensionsB=104-947mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth61,4-981,4 mm
MaterialAISI 304L/AISI 316L
FinishSatin finish
Plate MaterialGalvanized
Watertight SealPolyurethane
Working Temperature-25ºC<Ta<60ºC.
ALTERNATIVE OPTIONS
Alternative MaterialsGalvanized
Alternative FinishesPainted RAL 7035
Alternative SealsJunta silicona esponjosa: -45ºC<Ta<135ºC, Junta silicona inyectada: -45ºC<Ta<155ºC
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Available with IP66 or IP67 watertightness.
One or two rear doors
Wall mounting brackets
Painted galvanized steel material option
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX3028U
II 2GD Ex eb IIC Gb
Ex tb IIIC Db
Ambient temperature: -25°C to +60°C
IP68 according to IEC EN 62208 and EN 60529 standards

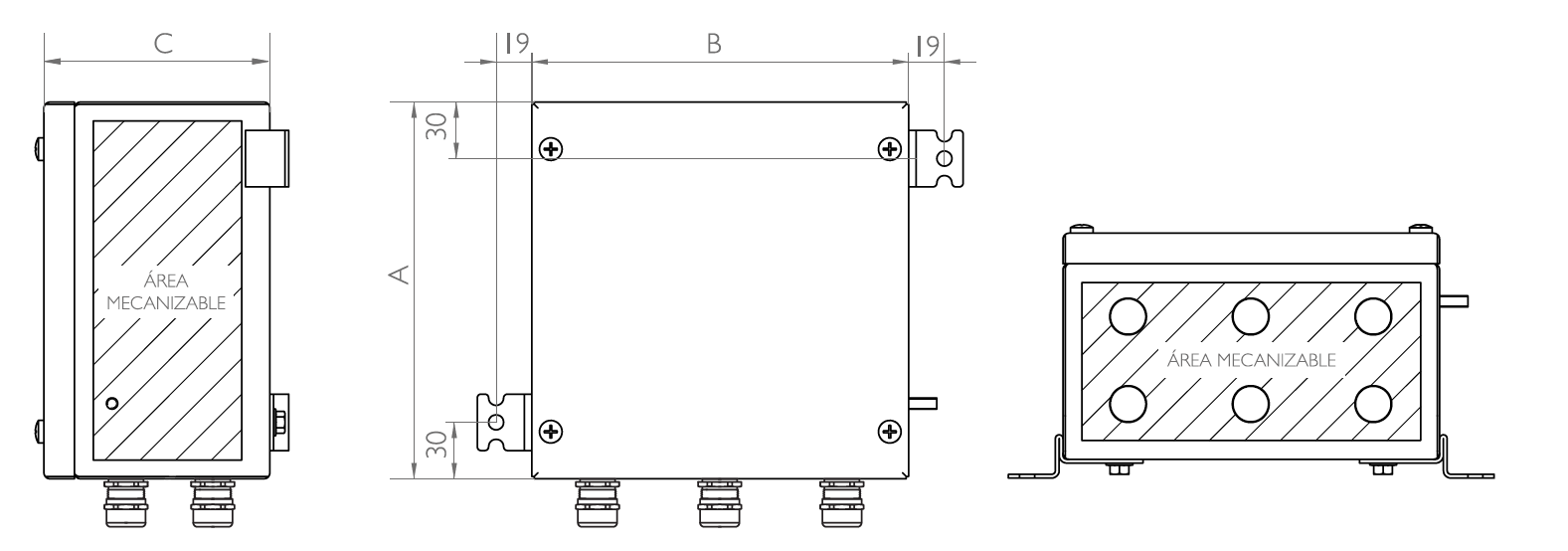

Sketch:

product sketch

Accessories:

Stainless steel Ex E Junction Boxes IP66

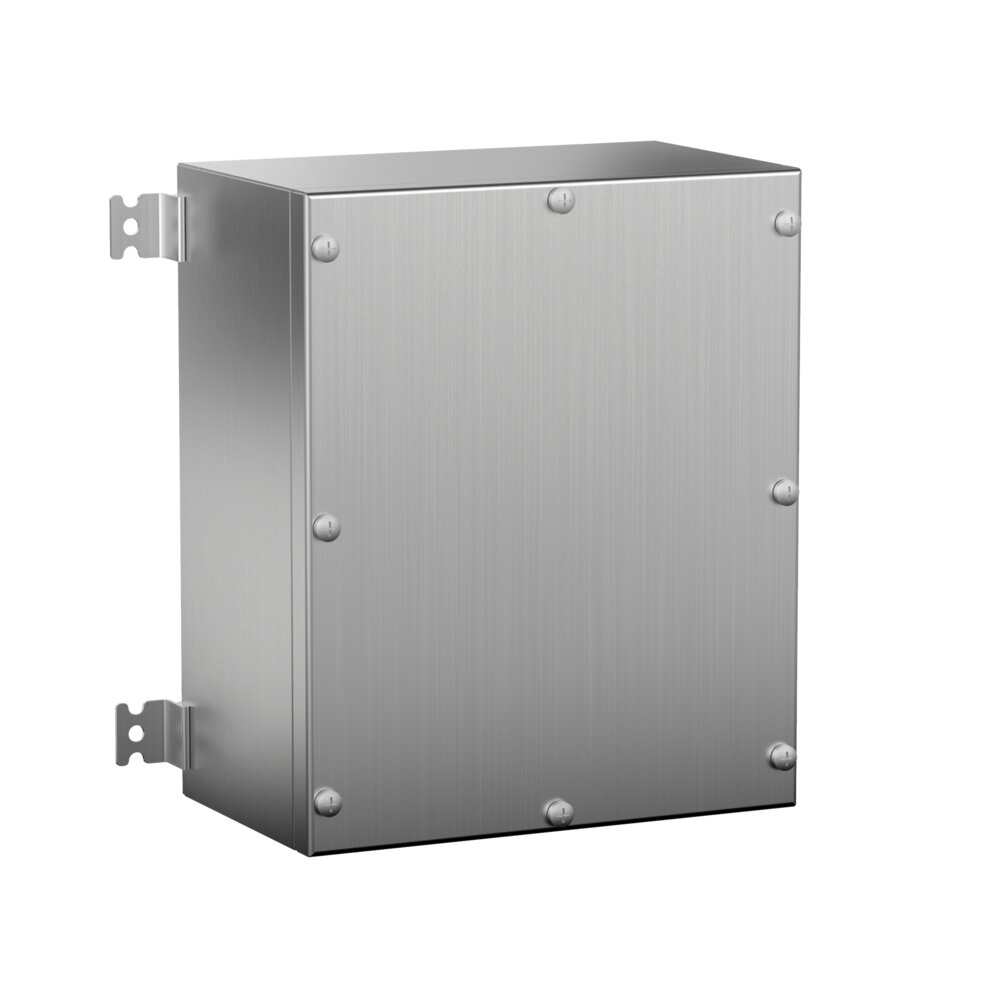

Atex Junction Box IP67
