Home > Products > IP67 Ex e Terminal & Junction Box

IP67 Ex e Terminal & Junction Box

Terbox-Geoex IP67 Series of terminal boxes are made of stainless steel; based on the design and specifications of our Geoex boxes (which are Ex-certified as final product). Terbox can be used in projects requiring the assembly and certification of junction boxes with terminal, cable glands and push-buttons, giving cost and time savings.

Terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22.

CUSTOM MADE PROJECTS: Options available include sizes, colours, types of connection among others. As we have a close relationship with the main Atex & IECEx certified companies in our field, we achieve total adaptability and flexibility being manufacturers.

Technical Downloads Product

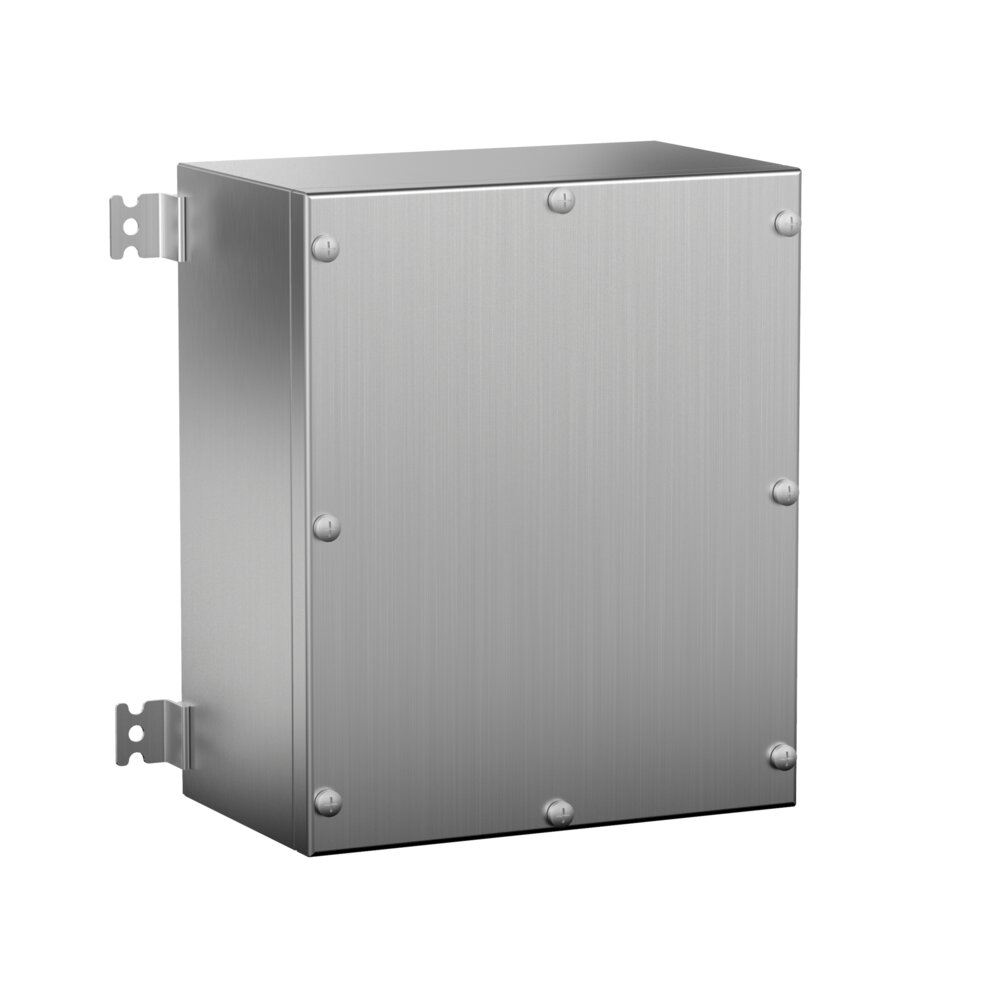

001_caja-de-terminales-y-bornes-atex-ip67-1_terbox_atexdelvalle.1305156c-34

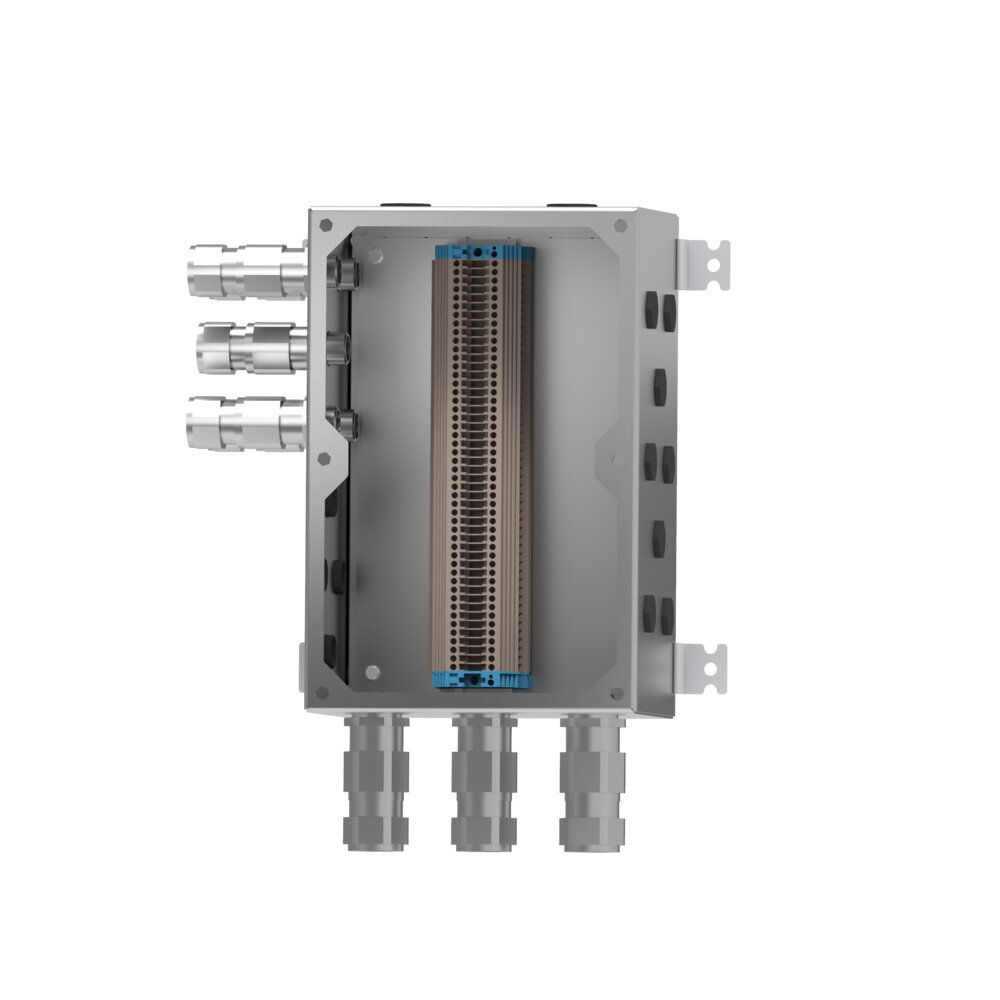

001_caja-de-terminales-y-bornes-atex-ip67-2_terbox_atexdelvalle.5dd4637e-16
TECHNICAL DATA
Minimum DimensionsA=90-1000mm   B=90-1000mm   P=80-1000mm
Minimum Plate DimensionsA=44-944mm
Minimum Plate DimensionsB=104-947mm
Body Thickness1.5 mm | 15/10 mm
0.059 " | 16 Gauge
Door TypeBlind door
Opening TypeScrewed
Useful Depth61,4-981,4 mm
MaterialAISI 304L/AISI 316L, Acero galvanizado pintado
FinishSatinado, Pintado
Plate MaterialGalvanized
Watertight SealPolyurethane
Working Temperature-25ºC<Ta<60ºC.
ALTERNATIVE OPTIONS
Alternative SealsJunta silicona esponjosa: -45ºC<Ta<135ºC, Junta silicona inyectada: -45ºC<Ta<155ºC
Alternative Thicknesses2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge
Available with IP66 or IP68 watertightness.
Manufactured in AISI 304L or AISI 316L stainless steel
Cable entry plate option
Hinge option
Explosion protection
Directive 2014/34/EU.
LOM 14ATEX2082
IECEx LOM 18.0001X
Protection: Ex db IIC T5 Gb, I M2 Ex db I Mb, and Ex tb IIIC T100 °C Db IP66
Dust explosion protection: Ex II2D Ex tb T80°C 95°C 130°C Db
Ambient temperature: -25°C to +60°C
IP67 Rating according to IEC EN 62208 and EN 60529 standards.

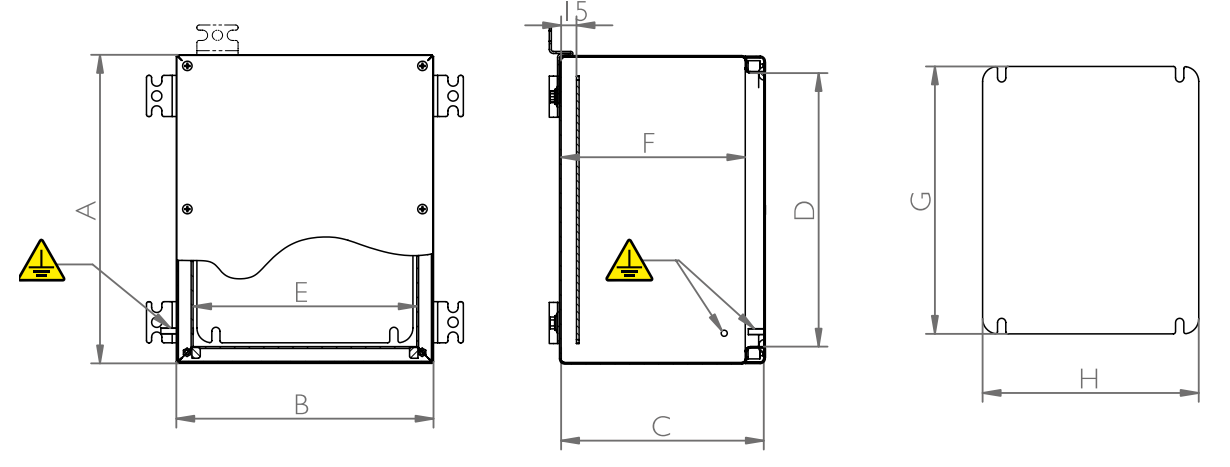

Sketch:

product sketch
