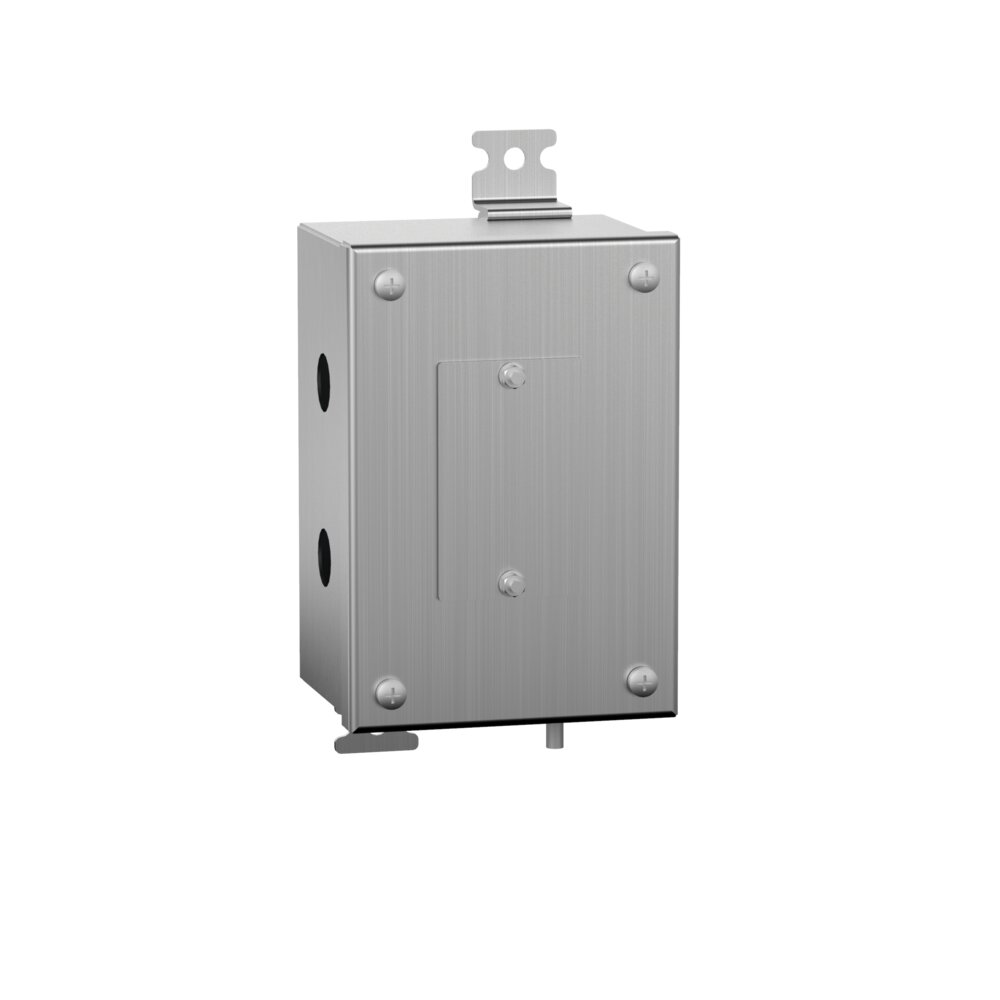

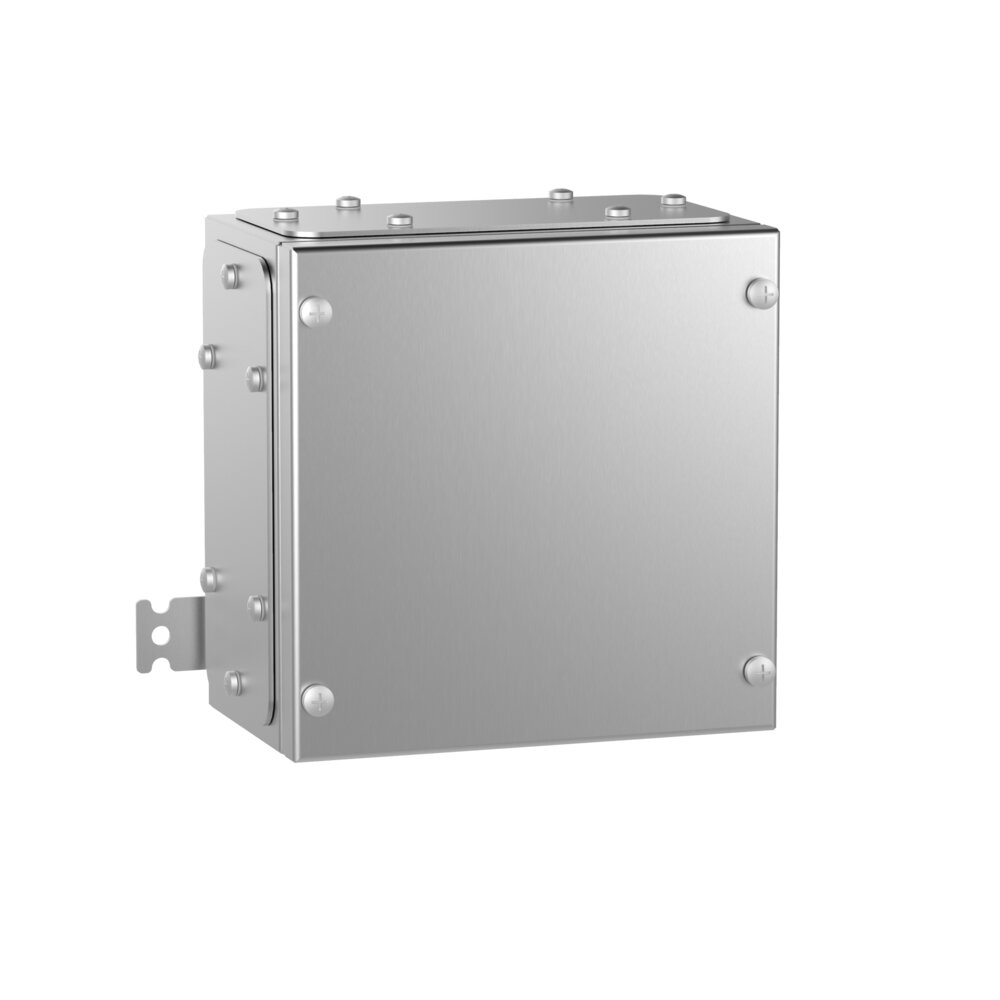

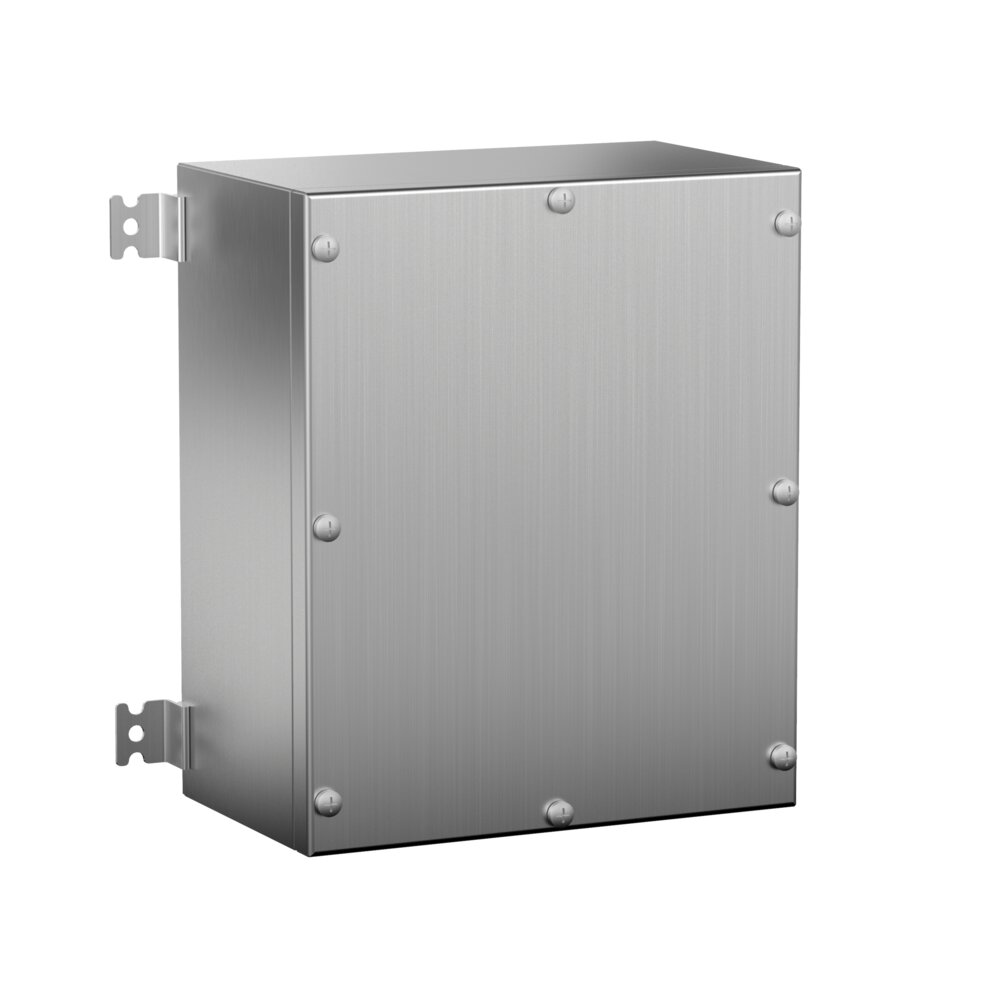

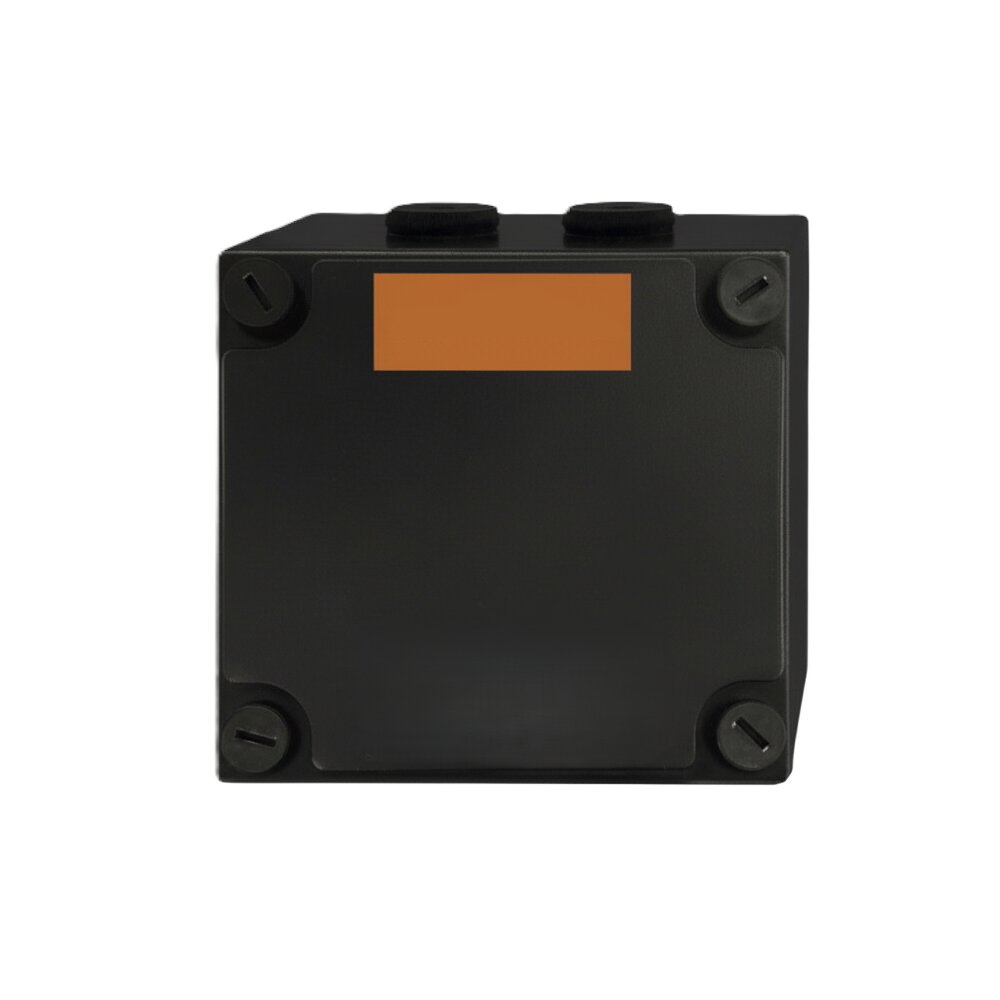

Atex lighting junction boxes (polyester GRP, stainless steel and galvanized steel) ready for installation in explosive atmospheres 1, 2, 21 and 22.

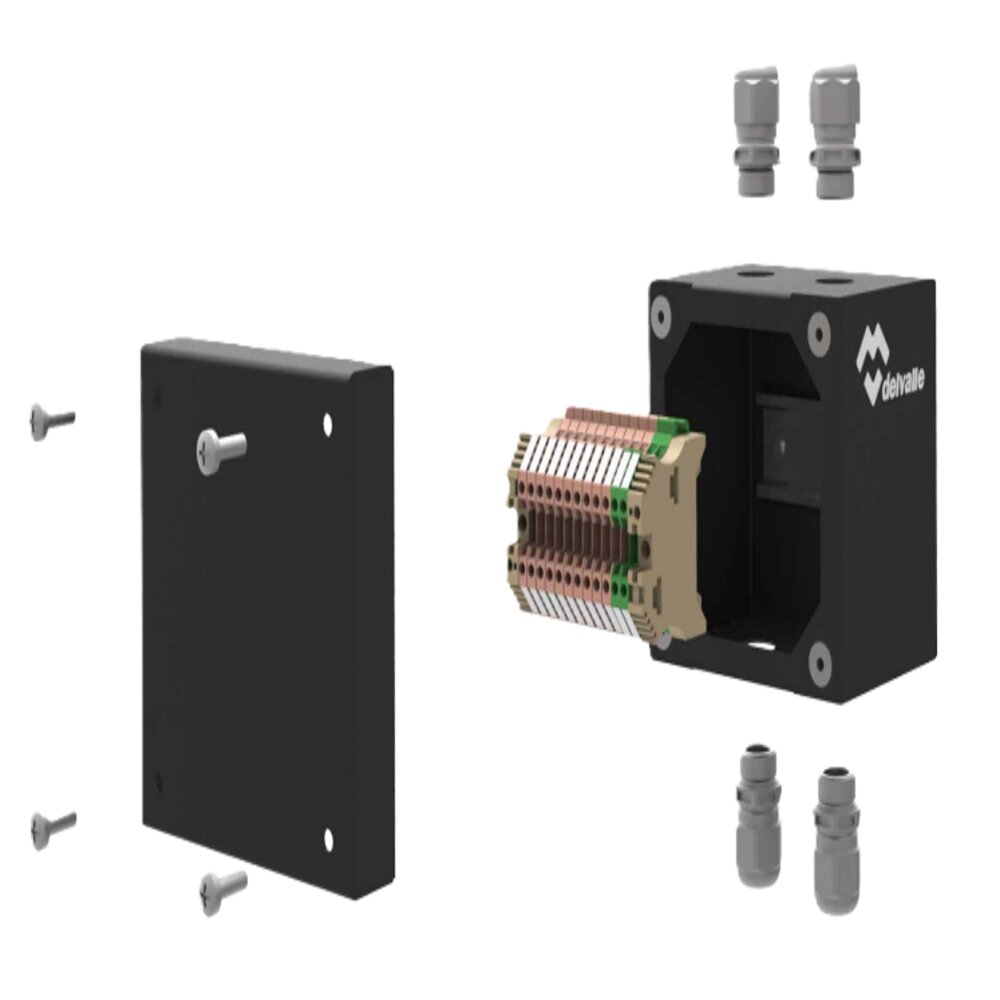

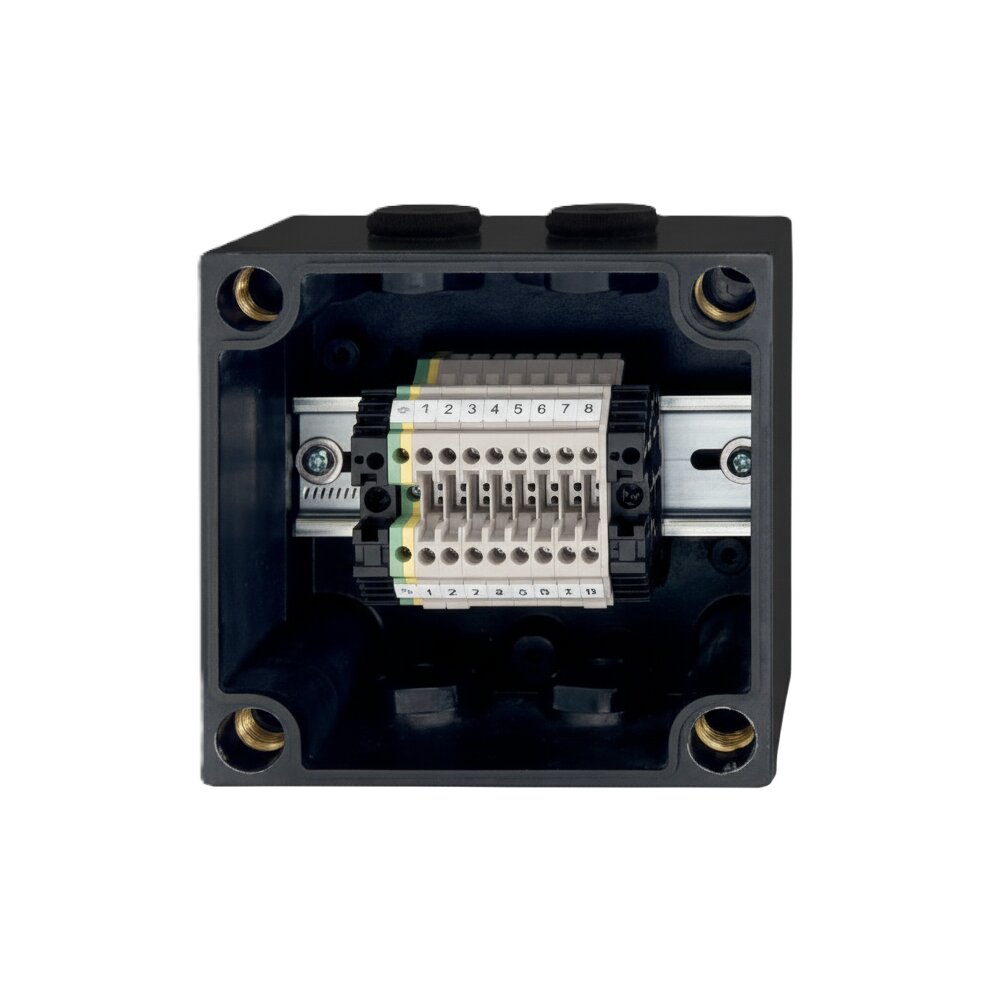

The terminals / terminals are mounted on a DIN rail and the inputs and outputs of cables are made using Atex cable glands; which can be made of polyamide, nickel plated brass or stainless steel to be chosen for corrosive areas.
This preassembled terminal box is certified and ready for installation in zones 1, 2, 21 and 22.
| Minimum Dimensions | A=122-220mm B=122-140mm P=90-90mm |
|---|---|
| Minimum Plate Dimensions | A=0-0mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Useful Depth | 0 mm |
| Material | AISI 304L/AISI 316L, Poliéster reforzado con fibra de vidrio |
| Finish | Satinado, Pintado |
| Watertight Seal | Silicone |
| Working Temperature | -25° a +60°C. |
| Alternative Thicknesses | 2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge |
|---|

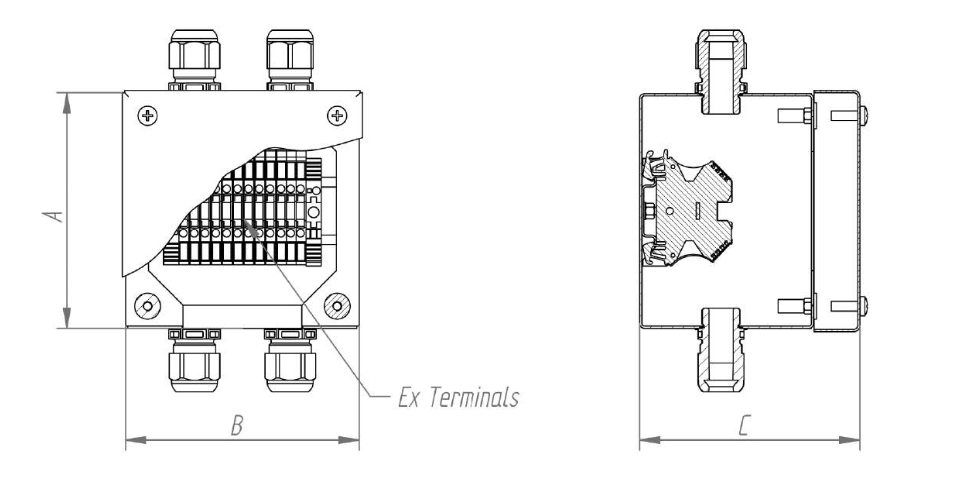

Sketch:
