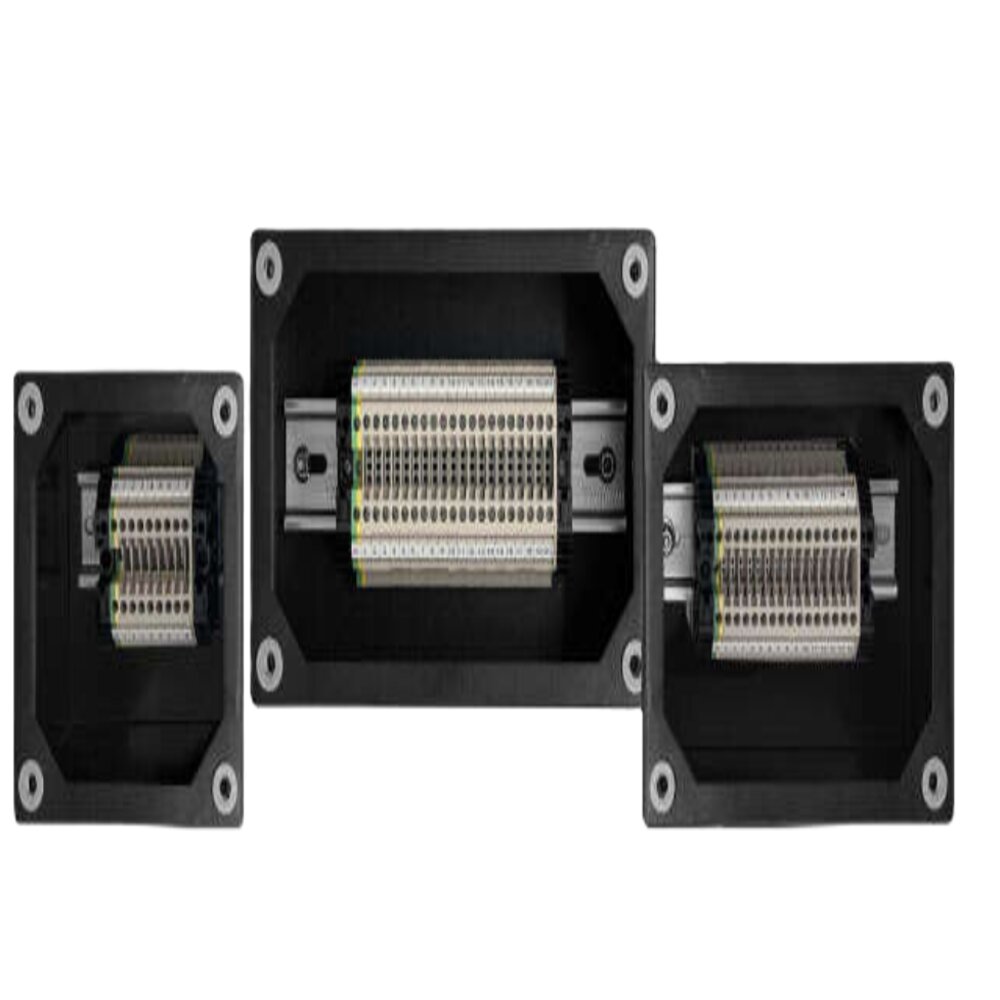

Terbox Series of Ex terminal boxes have a rugged, anti-corrosion system and finished, painted galvanized steel surface finish in RAL 9005; with customized and flexible configurations.
Galvanized steel ex terminal boxes are used for dividing and connecting wires for various electrical apparatus and instruments in the circuits. Installation is certified for zones 1, 2, 21 and 22.
Options available include sizes, colours, types of connection among others!
| Minimum Dimensions | A=120-400mm B=120-400mm P=90-150mm |
|---|---|
| Minimum Plate Dimensions | A=0-0mm |
| Body Thickness | 1.5 mm | 15/10 mm 0.059 " | 16 Gauge |
| Door Type | Blind door |
| Opening Type | Screwed |
| Useful Depth | 0 mm |
| Material | Painted galvanized steel |
| Finish | Painted |
| Working Temperature | -25ºC <Ta< +60ºC |
| Alternative Thicknesses | 2-4 mm // 20/10 - 40/10 mm // 0,0787 - 0,1575 " // 14 - 8 Gauge |
|---|

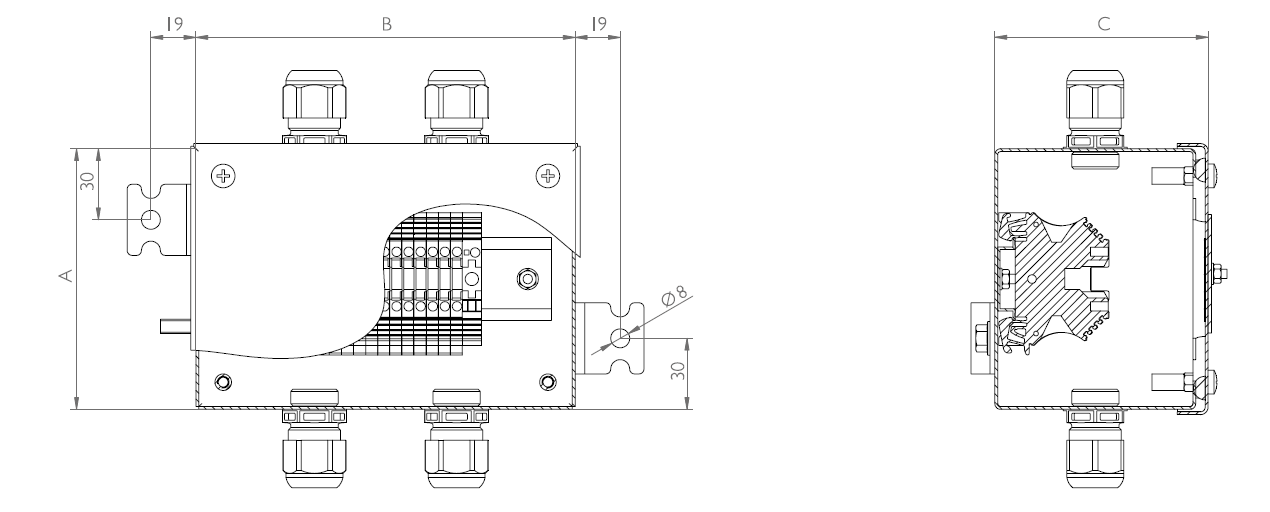

Sketch:
